description

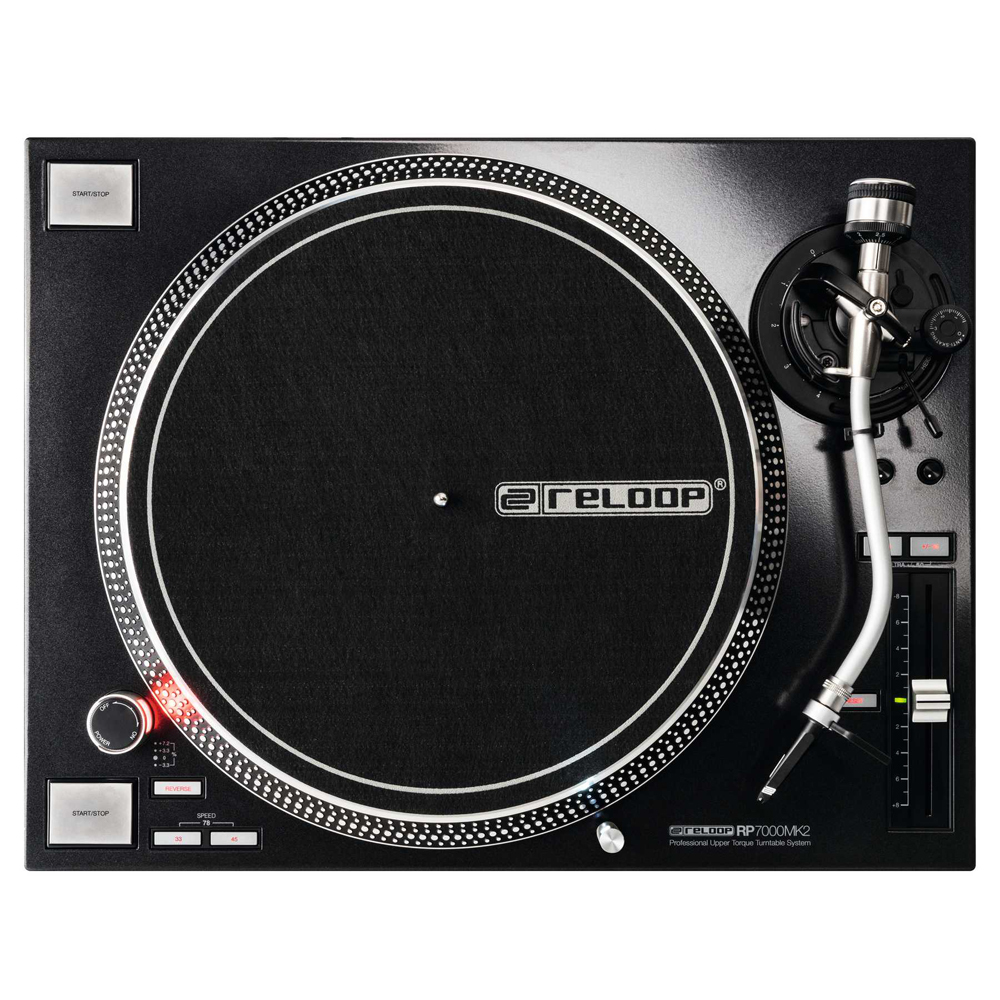

The Reloop RP-7000MK2 is the new and improved direct drive turntable for today’s DJs. Re-designed to cater to the high demands of professional DJs and modern nightclubs. With its powerful direct drive motor and rugged construction we were able to develop a sturdy and indestructible turntable that can take on harsh everyday life with ease.

Sturdy Casing Construction

By using a combination of metal, rubber and synthetic materials, the RP-7000 MK2’s housing is more reinforced and heavy than ever before. This results in a turntable that is extremely resistant to vibrations that can be caused by heavy bass sounds in DJ booths and its shock-absorbing feet help to further improve isolation. The surface is coated with a scratch-resistant high-quality deep black or classic silver metallic finish.

Balanced S-Shaped Tone Arm With Upgraded Base

The RP-7000 MK2 features a statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism. The newly developed tone arm base provides improved stability and adjustable height/vertical tracking angle (VTA). The low-resonance tone arm comes with a universal connection for pick-up cartridge systems (SME).

Dual Star/Stop Buttons, Precise Motor Control & Reverse Function

As well as the above technical innovations, the Reloop RP-7000MK2 is equipped with a few functions that will make any DJ’s life much easier. The newly developed aluminium LED target light is freely movable to help you find the stylus position in dark surroundings. The target light is also removable and easily exchanged. An additional start/stop button has also been integrated to facilitate a vertical setup (battle position) and by using the buttons on the RP-7000 MK2’s top panel, you can switch between the three motor speeds (33 1/3, 45 & 78 rpm). Dedicated buttons for forward and reverse mode allow for further creativity in your mix.

High-Resolution Pitch Section With Digital Fader

Using the high-resolution pitch fader you can adjust the platter speed in the classic turntable pitch range +/-8%. However, the RP-7000 MK2 is also cable of a wider, DJ-friendly +/- 16% pitch range and a massive +/-50% ultra-pitch. This allows for increased creativity when modulating the playing record’s tone. If quartz lock is active, the platter speed will remain unaffected by the fader position and will spin at zero pitch (0%).

High-Quality Connections and Integrated Phono Pre-Amp

Thanks to the recessed rear connection panel, the RP-7000 MK2 can easily be mounted in a flight case and seamlessly positioned next to other DJ gear. The switchable integrated phono pre-amp makes it is possible to use the gold-plated RCA connectors for both phono and line output signals. An optional ground terminal offers additional protection in club environments. All cable connections (RCA/mains) are detachable and easy to exchange, which also helps with transport and storage.

Powerful Motor With Extensive Adjustment Possibilities

The fine-tuned, quartz-driven motor with digital pitch correction operates at a starting torque of 2.8kg/cm, which can be adjusted up to a maximum of 4.5kg/cm. This makes it an extremely smooth running turntable with wow and flutter of just 0.01% WRMS*. Furthermore, the turntable break speed (platter stop) can be adjusted from 0.2 – 6 seconds and the precision-machined, heavy die-cast aluminium platter is lined with vibration reducing rubber to eliminate unwanted vibrations and resonance.

• Built for the club: Rigid chassis construction with an even heavier design with additional reinforcements out of metal, rubber and molding compound for high vibration damping and isolation
• More powerful starting torque (adjustable from 2.8 – 4.5 kg/cm)
• Fine-tuned motor control for further optimization of wow and flutter and rotation
• Newly developed, height-adjustable tone arm base (VTA) and Anti-Skating control
• Particularly light weight and rigid, satin aluminium material used for tonearm pipe
• Pitch scale for precise adjustments
• Optional ground terminal offers additional protection in complex club & studio environments
• Easily replaceable, freely rotatable LED needle light in new aluminium design
• High-quality and hard-wearing deep black, metallic finish
• Rubber inlays to reduce vibrations and background noise
• Static-balance universal S-shaped tone arm with hydraulic lift and anti-skating mechanism

TURNTABLE
Type:	direct-drive turntable
Drive:	quartz driven upper-torque direct drive
Motor:	16-pole, 3-phase, brushless motor
Turntable speeds:	3 speeds, manual (33 1/3, 45, 78 RPM)
Starting torque:	2.8 – 4.5 kg/cm (adjustable)
Adjustable stop time:	0.2 – 6 sec.
Start-up time / change to RPM:	< 0.2 sec
Wow and flutter:	0.01% WRMS*
S/N ratio:	> 55dB (DIN-B)
Brake system:	electronic brake
PLATTER
Material:	die cast aluminium
Size:	332 mm
Weight:	approx. 1.5 kg
TONE ARM
Type:	universal, static balanced, S-shaped
Effective length:	230 mm
Overhang:	15 mm
Tracking error range:	< 3°
VTA setting range:	0-6 mm
Useable weight of pickups:	3.5~8.5 g (incl. headshell 13~18 g)
Anti-skating range:	0 – 3 g
Effective tone arm mass:	30 g
Connections:	1x PHONO/LINE Out (gold-plated), 1x GND earth connection
GENERAL
Power supply:	AC 115/230 V, 60/50 Hz (EU/US)
Power consumption:	13 W
Dimensions:	458 (W) x 354 (D) x 144.6 (H) mm
Weight:	approx. 11.7 kg
Accessories included:	turntable, slipmat, LED needle light, counterweight, PHONO Cinch cable with earth, AC mains adapter, operating instructions
