Adam Audio A77H Dual Studio Monitor Nearfield – 7 Inch
The ADAM Audio A77H Dual Studio Monitor is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies. Delivers a rich, spacious, and enveloping sound.

NOTHING COMPARES
A77H  incorporates two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter. As a result, the A77H delivers an ultra-wide frequency range.

What’s more, the addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

EXPLORE THE TECHNOLOGY of A77H
Furthermore, ADAM Audio monitors have earned a worldwide reputation for the innovations established in the field of loudspeaker technology. Here you can explore the technology of the A77H.
A CONTROL REMOTE SOFTWARE: With A77H, control the DSP-based functionality of all A-Series monitors. Control it remotely and in real-time over ethernet using A control.

ROTATABLE HPS WAVEGUIDE & X-ART TWEETER: Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

AUTOMATED ROOM CORRECTION WITH SONARWORKS: What’s more, ADAM Audio has partnered with Sonarworks. They created an automated room correction solution that runs directly on the DSP of A Series monitors.

A77H BASS REFLEX SYSTEM, CABINETS AND MOUNTING: A Series cabinets build on the heritage of ADAM Audio and the AX Series.

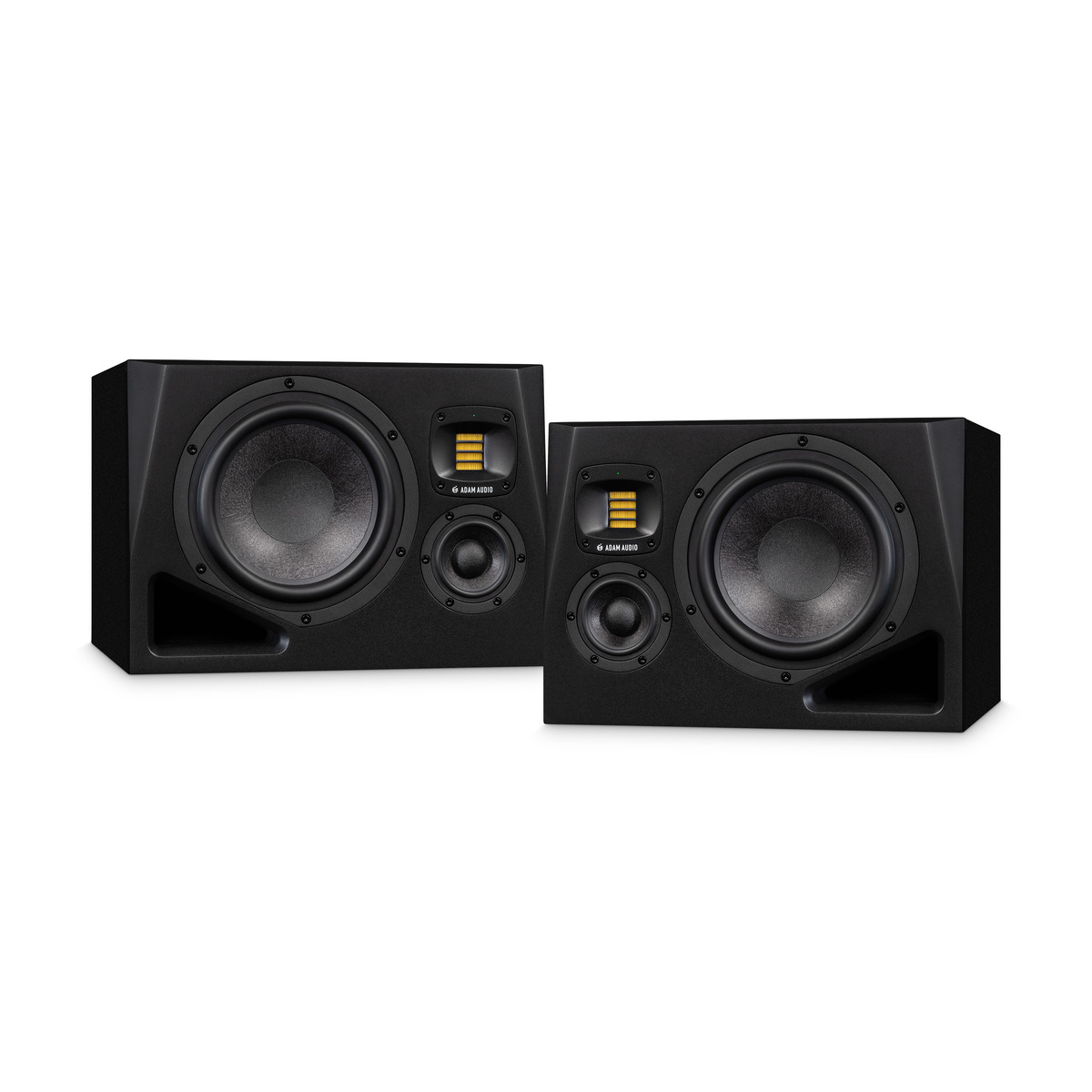

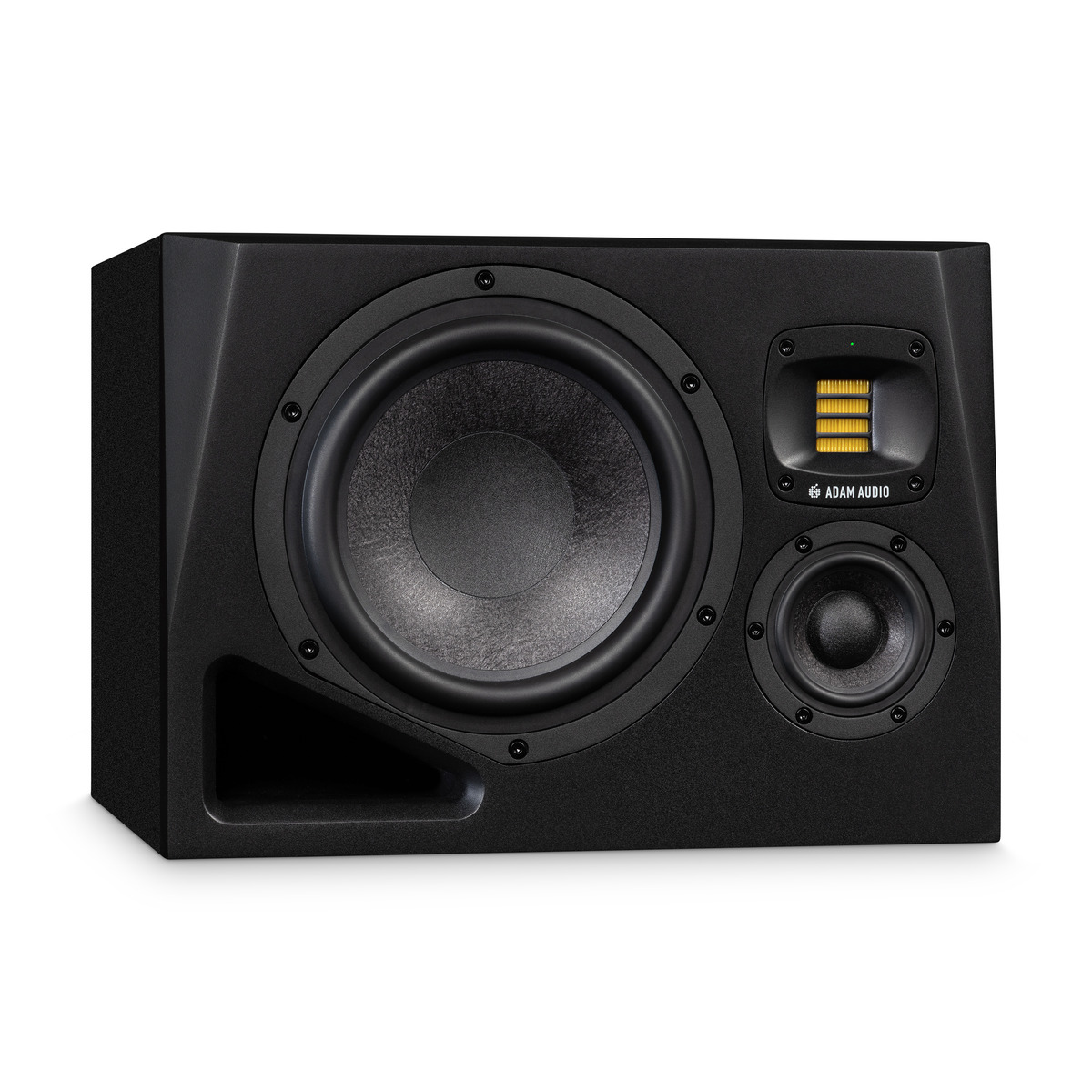

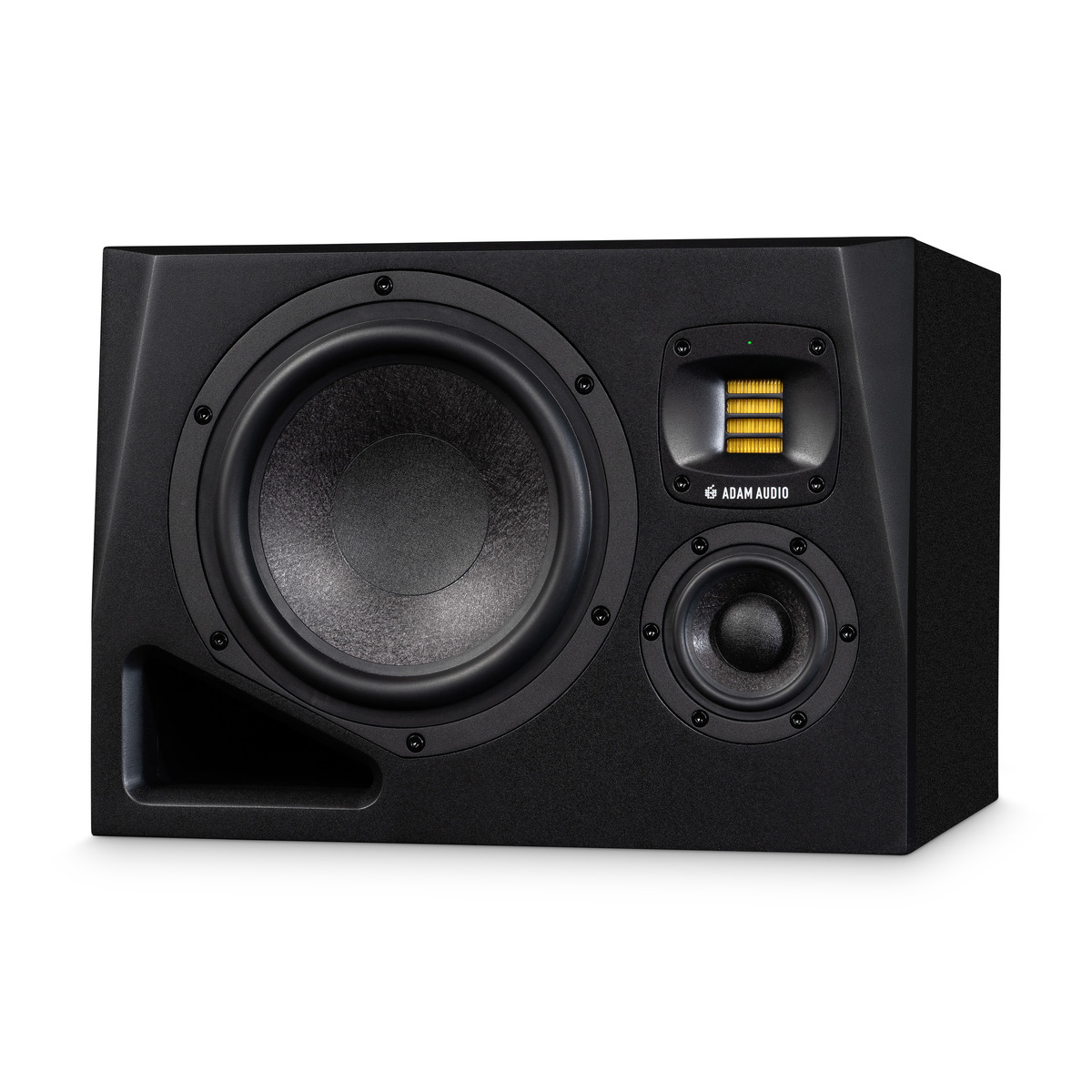

The pinnacle of the A Series, the A8H is a three-way speaker that delivers the extremely accurate and analytical sound required for critical-listening environments. The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fibre woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response. Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.

•    Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
•    Midrange Driver: 3.5” MLM midrange driver
•    Midrange Voice Coil Ø: 33 mm / 1.3”
•    Woofer: 1x 8" MLM mid-woofer
•    Woofer Voice Coil Ø: 38 mm / 1.5”
•    AD convertor: 24-bit
•    Internal sample rate: 96 kHz
•    Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
•    Crossover frequency: 400Hz – 3.0 kHz
•    Power rating: 500 W max
•    Analog Inputs (balanced): 1x XLR
•    Analog Inputs (unbalanced): 1x RCA
•    Net Weight: 13.6 kg / 30 lbs
•    Gross Weight: 16.6 kg / 36 lbs 10 oz
•    Cabinet Height x Width x Depth: 274 mm x 382 mm x 329 mm [9 3/4" x 15" x 13"]
•    Box Dimensions: 405 mm x 510 mm x 455 mm [16“ x201/8“ x 17 7/8“ ]
•    AC Input Voltage: 100 - 240V,50/60 Hz

Rotatable HPS Waveguide & X-ART Tweeter
ADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad in the horizontal axis but tightly focused in the vertical plane. The A Series introduces a rotatable HPS waveguidedesign. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically.

The A Series HPS Waveguide is made from a new glass fibre polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides a precise transient response and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line.

Multi-Layer Mineral Woofer
A Series woofers are constructed with a unique blend of mineral stone fibres that have been baked together to create a lightweight but highly stable material. The mineral composition, layering and geometry of each cone is specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end.

Midrange Driver
Adapted from the groundbreaking ADAM Audio DCH™ midrange driver used by the S Series speakers, the A Series midrange driver delivers a clean sound in a critical part of the frequency range where humans are especially sensitive to colouration of sound. Using a dedicated driver for the midrange further helps clarify lows and highs by eliminating the need for woofers to reproduce midrange frequencies and thus reducing distortion.

Hybrid Amplification
The A Series combines the best of both digital and analogue worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A Series.

Tweeters and midrange drivers are powered by Class AB amplifiers which offer a smooth, natural reproduction of high frequencies. Each amplifier is optimized for its working range, resultingin a fine-tuned, properly aligned speaker. To reach this point, ADAM Audio carried out extensive measurements and listening sessions, trialling countless amplifiers and amplifier components.

DSP-Based Electronics
The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analogue-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings.
