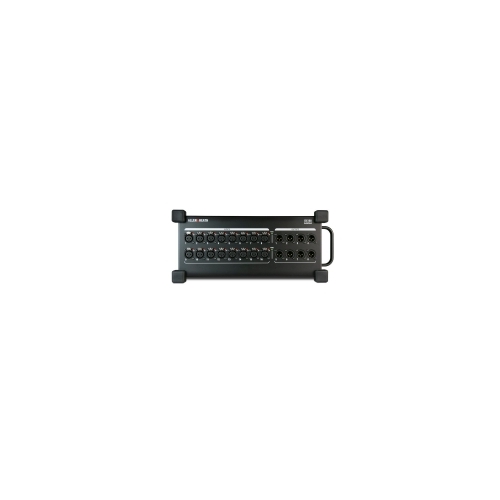

ALLEN HEATH DIGTIAL STAGE BOX 16 XLR IN 8 XLR OUT 96 K

every DX168 features sixteen mic preamps with independent Phantom power LED indicators, plus eight XLR line outs.

The DX168 connects through a single Cat5e cable to the dLive surface, MixRack, sq.mixer or upstream DX168 thru a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX168 for added far off I/O.

The Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor in the course of performances. Weighing in at just 4.8kg and presenting a sturdy carry handle, the DX168 gives the convenience and portability needed in rental, training, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in industry trendy 19-inch racks.

With dLive

Up to 6 DX168 units can be related immediately to a dLive device – four via the MixRack and a pair of through the surface – permitting up to ninety six far off inputs and 48 far flung outputs in addition to the ones provided by the MixRack and surface. extra units may be related thru the dLive DX hyperlink card or DX Hub.

With SQ

 units may be daisy chained and linked directly to an squareSLink port, with the elective SLink card for sq.enabling extra connections. For a greater disbursed machine, a DX Hub can handle up to eight DX168 gadgets which can be freely patched to the SQ’s forty eight input channels.

capabilities

sixteen excessive end, low noise preamps
impartial 48v indicator
96khz
auto firmware matching
Ethernet L2 well suited
Rack mount (optionally available kit)
as much as 46 expanders in a gadget
may be connected via a VLAN
Can stay on the building IT network
No noise (fanless)
specifications

16 Mic Preamps on XLR
Phantom electricity LED per enter
eight XLR Line Outs
DX A connection with locking Ethercon port
DX B locking Ethercon port for daisy chaining or redundancy
Rubber bumpers
bring manage
non-compulsory rack mount kit to be had
