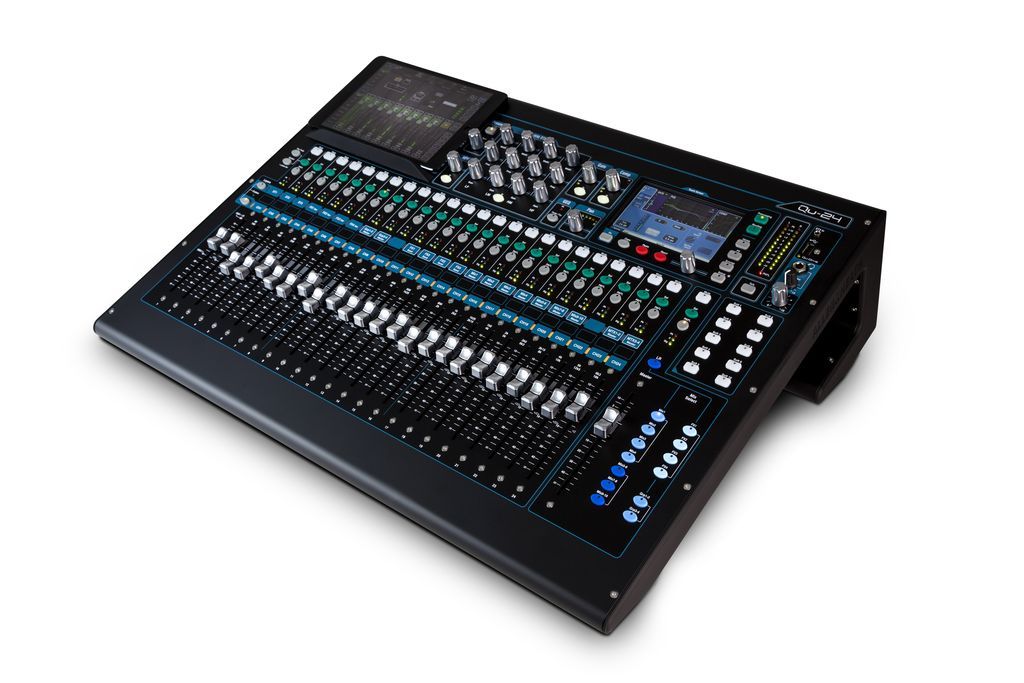

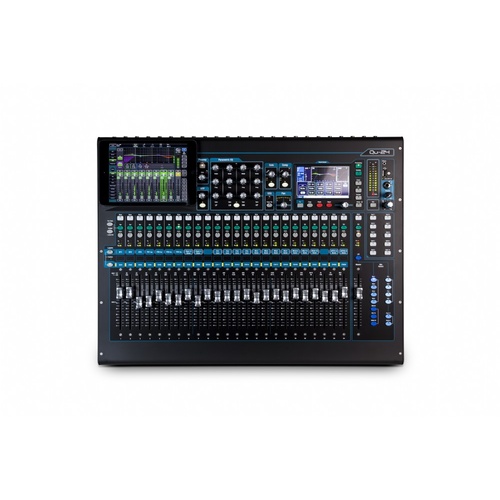

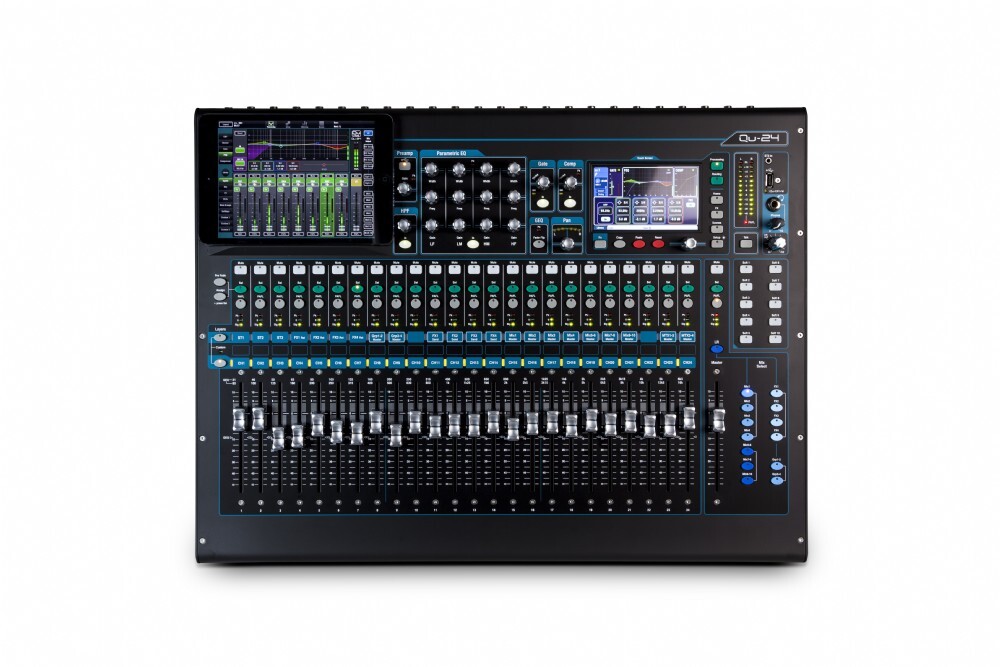

Allen & Heath Qu-24C Digital Mixer Automated Mixing Console

The New Allen and Heath QU24 Chrome Edition, recreates and reshapes  digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience.Packed with a stack of features you’d expect from a top of the range digital console and incorporating technologies pioneered on the Legacy GLD and iLive digital mixing systems,

With its responsive touchscreen, 25 motor faders and acclaimed AnalogiQTM recallable preamps, Qu-24 combines exceptional ease of use with class-leading audio performance

Qu-24’s built-in interface streams up to 32 selectable tracks to your Mac or PC. The returns from the Mac or PC can be easily assigned to the Input channels

Qu-24 has an integrated multitrack USB recorder, providing 18 channels of 48kHz 24bit recording and playback straight to / from your USB hard drive. Capturing stereo or multitrack recordings of your shows has never been so easy.

Add the Qu-Pad iPad app to your Qu setup over Wi-Fi and you’re free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show from the heart of the audience.

Qu-24 is fully compatible with our ME Personal Mixing System. Any number of ME-1 personal mixers can be chained from the dSNAKETM port (or from an AR2412 Stagebox
Qu-24 can store up to 100 full Scenes for recall at will.

 Qu-24 has the power and pedigree to deliver class-leading audio performance.Some of the innovative exciting new features include Automatic Mic Mixing and Spectrogram for feedback-hunting, plus upgraded, high contrast metallic finish controls. Whether you’re switching from analogue or updating your digital desk, this qu16 Mixer will change your mind in what a mixer is supposed to made up from.

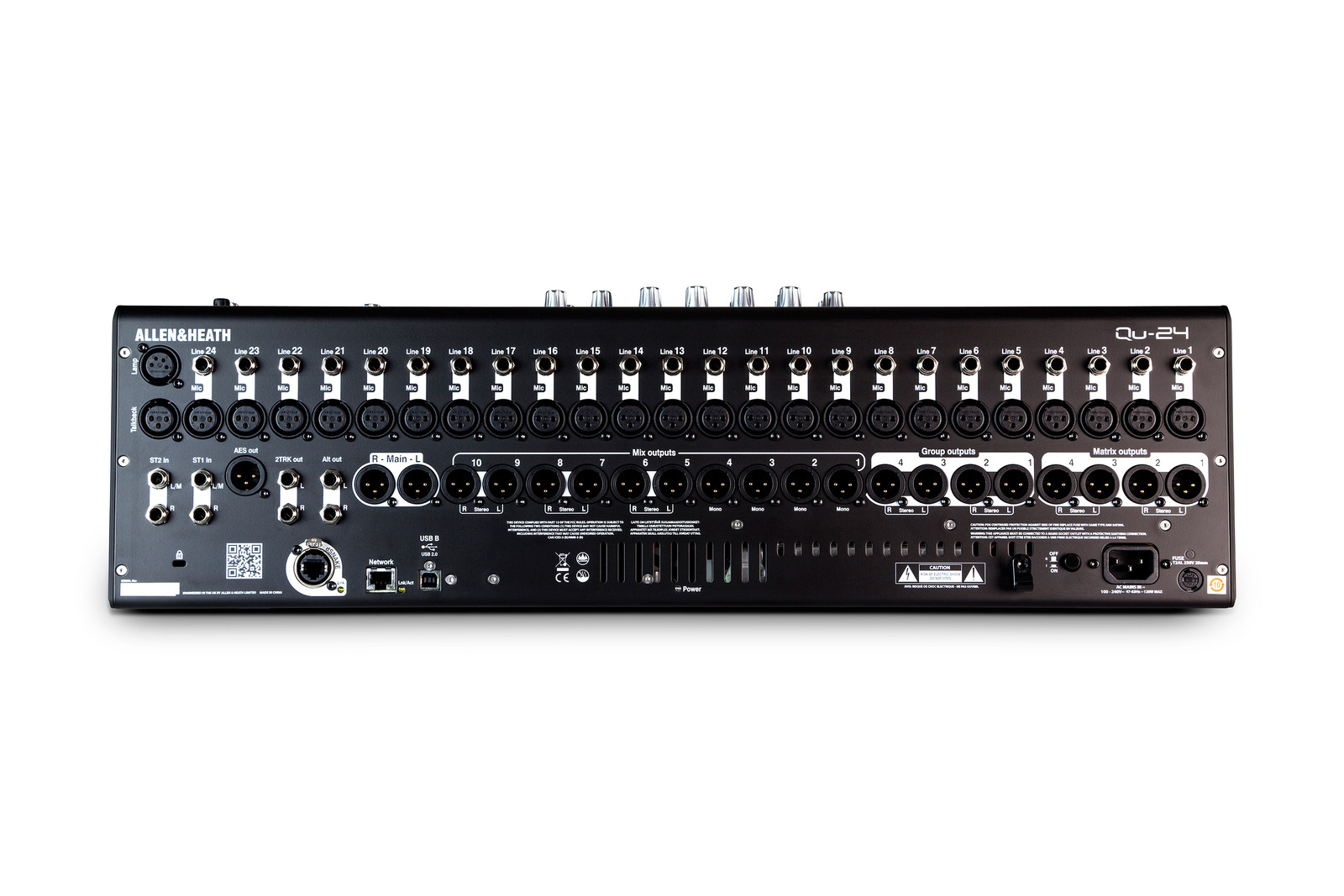

• 24 Mono Mic/Line Inputs (TRS + XLR)
• Recallable AnaLOGIQTM Preamps
• 3 Stereo Inputs (TRS)
• 20 Mix Outputs (XLR)
• 2 Stereo Groups (switchable to Mix mode)
• Up to 9 Monitor Mixes (4 mono + 5 stereo)
• 2 Stereo Matrix Outs
• 4 FX Engines
• 4 dedicated FX Sends / Returns
• 4 Mute Groups
• 4 DCA Groups
• AES Digital Out
• 32×30 USB Audio Interface
• dSNAKETM Remote Audio Port
• 25 Motor Faders
• 800×480 Touchscreen
• 10 Soft Keys
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
• Channel Ducker on all inputs
• iLive FX Library
• Built-in Signal Generator
