description

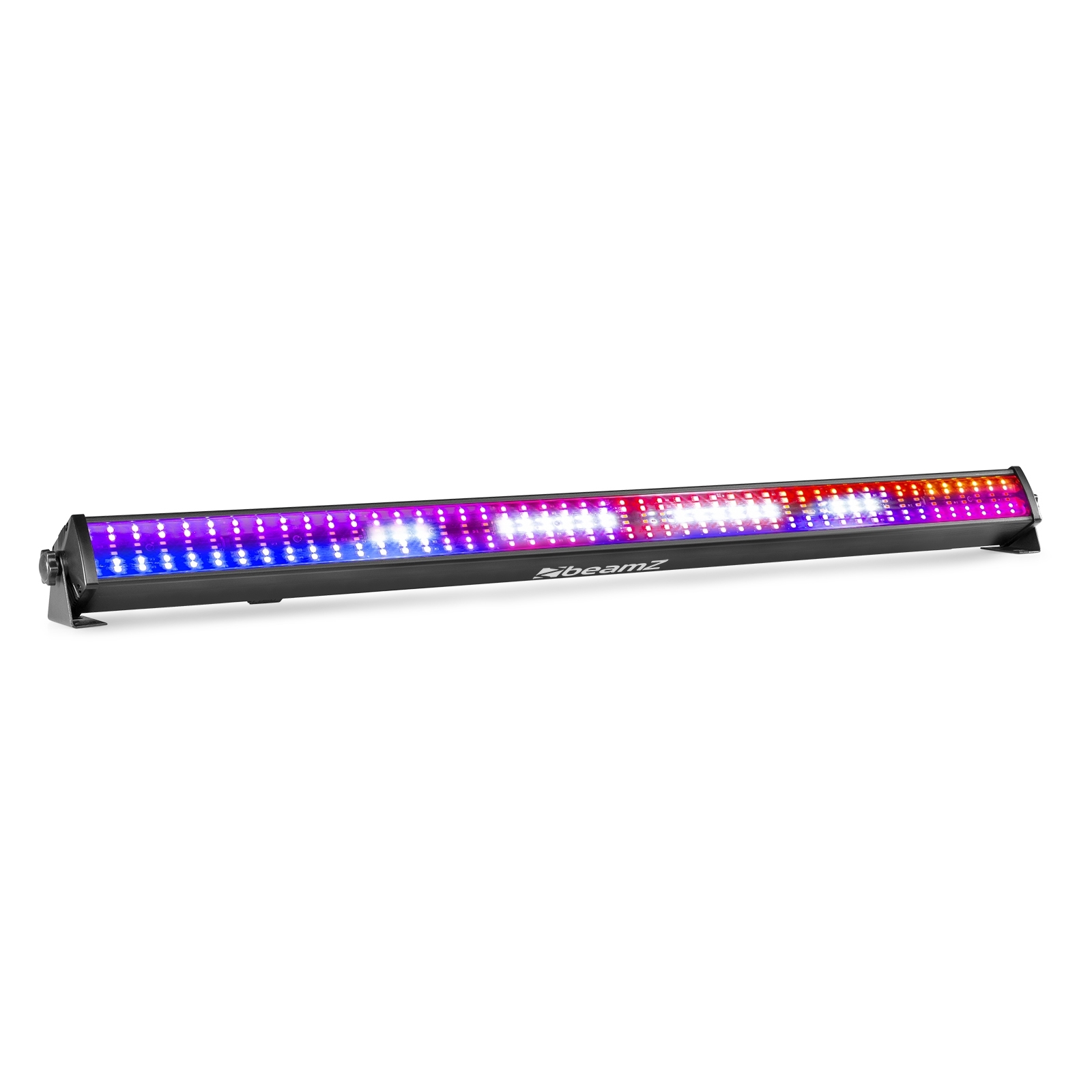

The LCB288 is a Wash and Strobe LED bar with 288 pieces SMD LEDs, divided into a top and bottom section of a total of 192 RGB LEDs and a center section of 96 white SMD LEDs. The LEDs are divided in 3x 16 separately controllable sections, the top and bottom sections having its own RGB colour setting in DMX mode. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. The extra PowerConnector enables you to simply link the power of multiple units together into a single socket.
  • Wash and Strobe LED Bar
  • 192x SMD RGB LEDs (top and bottom)
  • 96x SMD White LEDs (center)
  • 6, 9, 32, or 64 DMX channels
  • 3x 16 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • DMX in/output via 3-pin XLR
  • Power-connector input/output
  • Control panel with LED display
Product colour Black
Light source Single colour LED, 3-in-1 LED
LED colours Red, Green, Blue, White
LED power (single LED) 0.5W
Quantity of LEDs 192
LED power: Strobe 1W
Quantity of strobe LEDs 96
Beam angle 135°
Illuminance 1.483 lx @ 1m
Flash rate per second 1 - 21Hz
DMX channels 6, 9, 32, 64
DMX connection 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
Daisy chain Yes (max. 6 bars)
IP rating IP20
Cooling Convection
Display LED
Power plug Power-connector
Power consumption 1.67 - 0.804A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1021 x 68 x 68 mm
Weight 1.75 Kg
Included accessories Mounting bracket, Power cable

specifications

SKU LCB288
Brand BeamZ
Shipping Weight 2.0000kg
Shipping Width 0.110m
Shipping Height 0.100m
Shipping Length 1.110m
