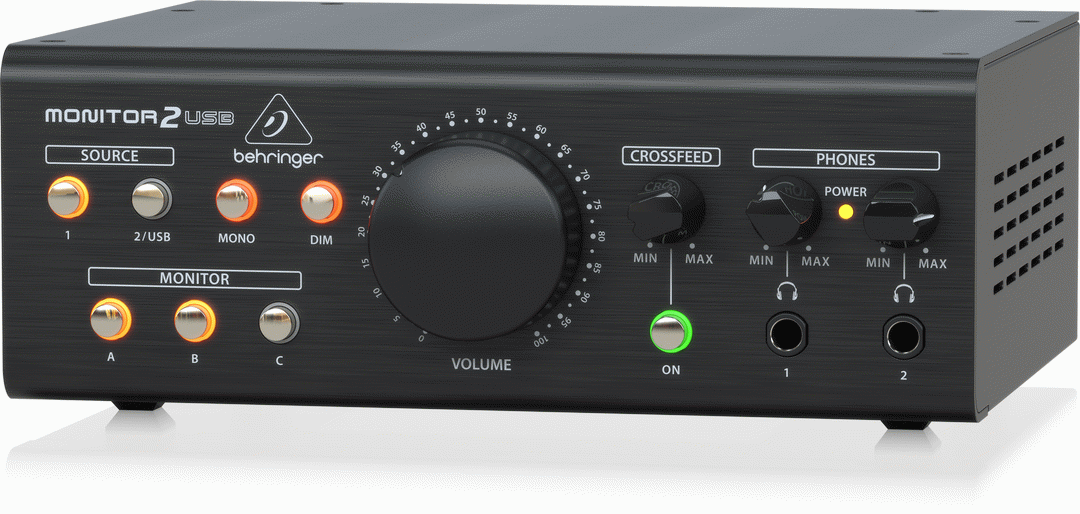

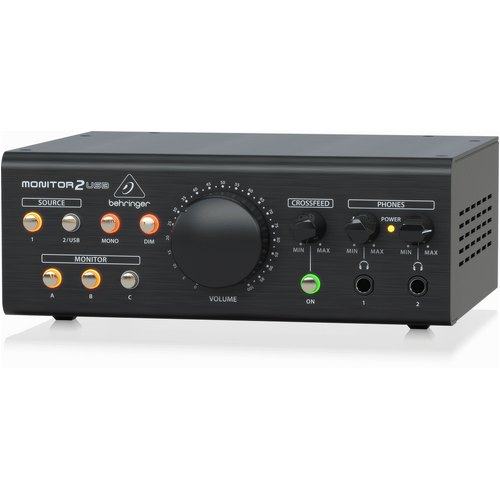

Behringer MONITOR2USB Monitoring Controller

High-End Speaker and Headphone Monitoring Controller with VCA Control and USB Audio Interface

MONITOR2USB is a high end speaker and headphone monitoring controller with VCA control and USB audio interface.

The MONITOR2USB gets you off your knees and puts VCA-controlled volume, source selection, phones and monitor control right at your fingertips. With the incredible MONITOR2USB you can select from 3 sets of active studio monitors, 2 different stereo sources, plus a USB input for your DAW – to create powerful, custom monitor mixes – all in pristine, audiophile-grade sound quality.

This unit has a built-in USB audio interface and  lets you connect directly to your computer and its digital library, creating the ultimate sound source control center – no additional hardware required.

While MONITOR2USB’s Volume control is mechanically similar to an analogue control, its use of Voltage Controlled Amplifiers (VCA) provides several major benefits. First, since a DC current flows through the volume control (instead of the audio signal) there is no degradation in sound quality, and none of the pops and crackles typically produced by an audio-taper volume control. That current is what actually controls the levels of the separate left and right amplifiers. Second, both the left and right channels remain proportionately accurate to their input levels. Third, better left/right channel separation is maintained, because there are no audio signals present at the volume control. And finally, you get amazingly precise and repeatable level settings you can count on.

There are two sets of knobs Small knobs one being for micro control and the bigger the knob for macro control is, the higher the precision. Think of a control knob as a circle. Micro steps on the samll knob and large Macro steps of the large Knob which allows the MONITOR2USB to set levels quickly  and accurately,

Today’s computer-based recordings have to sound great in even more situations, such as MP3 players, podcasts and other bass-challenged systems –and with this unit it allows you to mix through a few speaker systems The  MONITOR2USB lets you switch between up 2 pairs of studio monitors, listen through vintage-style small monitors (such as our C5A or C50A), add a subwoofer – or any combination at the mere press of a button.

Behringer gave the MONITOR2USB enough connectivity to handle just about anything you’re likely to plug in. Input 1’s balanced XLR sockets allow you to connect your mixer’s output, while Input 2’s XLR sockets accept a wide range of line level devices, including CD and DVD players. Plus, you can connect directly to your computer via USB to monitor your DAW, or playback other computer-based music fi les, such as backing tracks, mp3s, etc.

MONITOR2USB’s rear panel provides connectivity for: 2 separate stereo source XLR Inputs (one with a +4 dBu/-10 dBV switch for line level devices); 2 separate stereo XLR Monitor Outs, plus an additional mono XLR Out; and a USB socket for your computer.

if you want to mix within the privacy of your own room or apartment then you have the option of MONITOR2USB twin high-grade headphone amplifiers with separate volume controls. Behringer also equipped the headphone section with an amazing Crossfeed control that emulates the stereo speaker panorama. This enables you create an open, natural sounding listening environment that is more true-to-life and not ear fatiguing – even during long mixdown sessions.

Product Features

• Premium speaker and headphones monitoring center
• Large Volume knob with true VCA control for extremely precise level adjustments
• Built-in stereo USB Audio Interface, perfect for computer-based studios
• 2 high-quality stereo inputs connect perfectly to your DAW
• 3 independent Monitor outputs to connect up to 3 sets of studio monitors
• 2 high-grade headphone amplifiers with separate volume controls
• Crossfeed control emulates the stereo speaker panorama when listening through your headphones
• Convenient Mono and Dim functions right at your fingertips
• "Planet Earth" switching power supply for maximum flexibility (100
• - 240 V~), noise-free audio, superior transient response plus low power consumption for energy savings
• 3-Year Warranty Program
