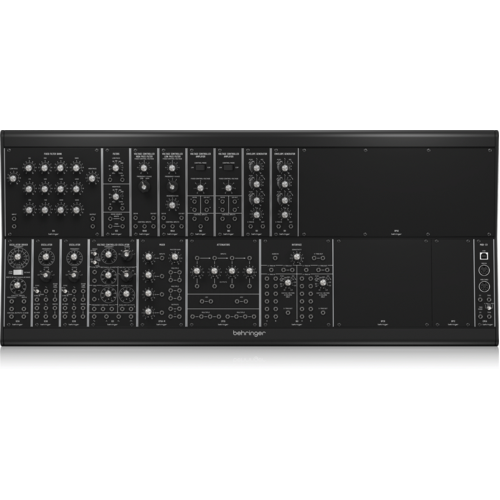

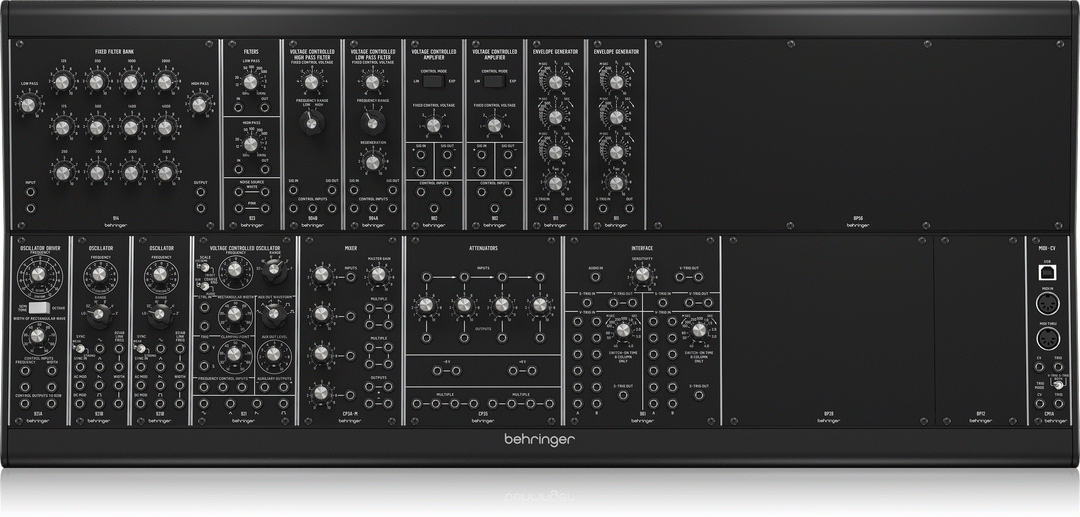

Complete "System 15" Modular Synthesizer with 16 Modules, MIDI-to-CV Converter and EURORACK GO case

The SYSTEM 15 is an amazing tool for those who are just starting down the psychedelic, neon-bathed road of modular synthesis. This whole setup comes equipped with a 921A OSCILLATOR DRIVERS, two 921B VCOs and a 921 VCO all of which provide three fully featured voices that you can adjust and tweak any way you want! The CP3A-M MIXER module allows you to mix up to four inputs which you can then patch out to other modules. Want a nice pad to your song? Have one signal go to a delay module and have another go into a step sequencer or other modules in the SYSTEM 15 for more intricate patches and hours and hours of fun! The SYSTEM 15 also includes the CP35 ATTENUATOR module with 4 linked attenuators and two sets of 4 multiples and reference voltages. Connecting a single signal to the CP35’s first input will allow it to pass to all 4 outputs. This allows you to have up to 4 variable outputs of a single signal source. Also included are two banks of 4-point multiple circuits for you to be able to route multiple copies of input signals to other modules.

• Pre-assembled ”SYSTEM 15“ modular synthesizer with 16 vintage sounding modules from the ’70s
• 1x 921A OSCILLATOR DRIVER with 2x 921B VCOs and 1x 921 VCO provide you with 3 fully featured voices
• 1x CP3A-M 4 input mixer with master level, 4 outputs and 2 sets of 4 multiples
• 1x CP35 ATTENUATOR module with 4 linked attenuators, 2 sets of 4 multiples and reference voltages
• 1x 961 INTERFACE module converts multiple V-trig to S-trig for compatibility with other Eurorack modules
• 1x 914 FIXED FILTER BANK with 12 active bandpass filters ranging from 125 Hz - 5.6 kHz and LP/HP filters
• 1x 923 FILTERS module with 6 dB low and high pass filters plus white/pink noise sources
• 1x 904B VOLTAGE CONTROLLED HIGH PASS FILTER and 1x 904A VOLTAGE CONTROLLED LOW PASS FILTER
• 2x 902 VOLTAGE CONTROLLED AMPLIFIERS with 3 summed CV inputs plus dual audio inputs and outputs
• 2x 911 ENVELOPE GENERATORS with S-trig inputs and CV outputs
• 1x BP56 blank panel allow for expansion space for additional modules such as 960 sequential controller
• 1x BP28 and 1x BP12 blank panels for a total of 96 HP expansion space
• 1x CM1A MIDI-to-CV converter enables control via MIDI keyboards or DAW, V-trig or S-trig outputs
• 1x EURORACK GO case including PSU
