BEHRINGER ULTRADRIVE PRO DCX2496 PROCES

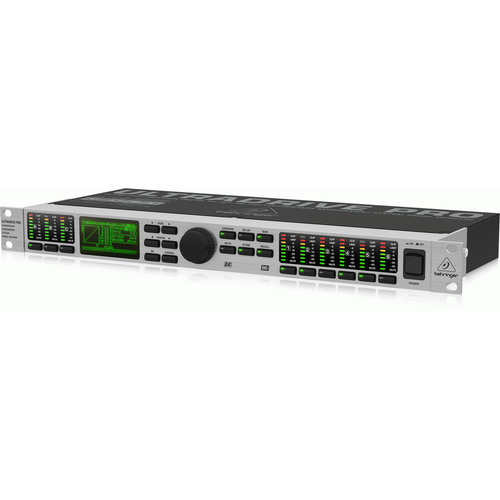

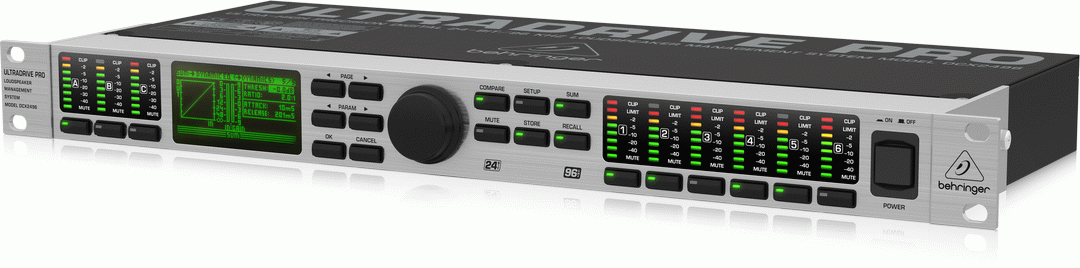

The ULTRADRIVE PRO DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list. It is an indispensable tool for the precise set-up of multiple loudspeaker systems or arrays. Installation contractors, live-sound engineers, cinemas/discotheques/concert hall operators will quickly learn to love this model’s rich features. Signals can be split in various ways to assure precise sound by using the optimal frequency range of each loudspeaker.

Start with its 3 analogue inputs (one suitable as a digital stereo AES/EBU input) and 6 analogue outputs. You get maximum flexibility in just one rack space. Superb high-end AKM® 24-bit/96 kHz A/D and D/A converters give you ultimate signal integrity and an extreme dynamic range of 113 dB. Easy connection of external digital signals with sampling rates from 32 to 96 kHz is a breeze with the integrated sample rate converter. There are precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs, and “Zero“-attack limiters on all output channels guarantee optimal signal and loudspeaker protection.

You also get four different mono and stereo output operating modes, all with individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave. The delays for all inputs and outputs are adjustable. This allows you to manually or automatically correct for room temperature, phase and arrival time differences. An additional sum signal is easily derived from the A/B/C inputs

Product Features

• 3 analogue inputs (one suitable as digital stereo AES/EBU input) and 6 analogue outputs for maximum flexibility
• High-end 24-bit/96 kHz A/D and D/A converters for ultimate signal integrity and wide dynamic range (113 dB)
• Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
• Precise Dynamic EQs for level-dependent equalization and extremely musical Parametric EQs, selectable for all inputs and outputs
• Several types of EQs (LP/BP/HP) for each input and output
• "Zero"-attack Limiters on all output channels for optimal speaker protection
• Four different mono and stereo output operating modes
• Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
• Adjustable Delays for all inputs and outputs—allow manual or automatic correction for room temperature, phase and arrival time differences
• Additional Sum signal derived from the A/B/C inputs offers a fourth internal input signal
• Free ULTRADRIVE PRO software enables total control via PC through RS-232 and RS-485 interfaces (download at www.behringer.com)
• Link option via RS-485 network interface enables cascading of several ULTRADRIVE PROs
• 60 user-defined internal presets storable via PC software or on PCMCIA card
• Servo-balanced, gold-plated XLR connectors for all inputs and outputs
• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• High-quality components and exceptionally rugged construction ensure long life
