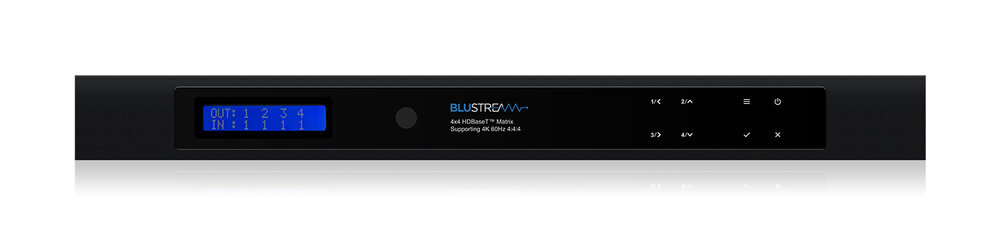

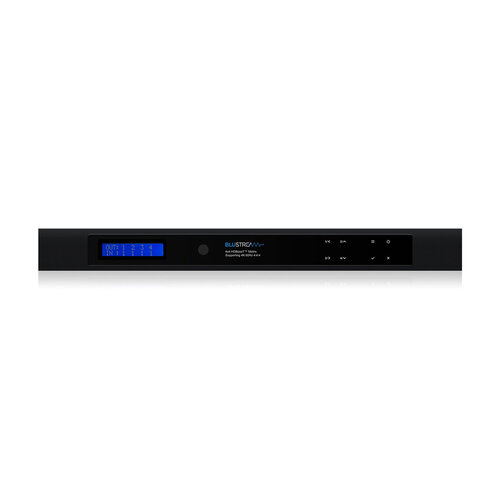

Blustream 4 x 4 HDBT Matrix KIT 70M @ 1080P with 18 Gbps 4 x HDBT Out + 1 HDMI

The Essential 4x4 HDBaseT™ Matrix offers uncommon execution and an incentive for the custom establishment market.

The HMXL44CS-KIT is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix bundle using CSC innovation to convey HDMI, Bi-directional IR, RS-232, and PoC up to lengths of 70m over a solitary CAT link.

The network additionally gives progressed highlights including synchronous HDBaseT™/HDMI on yield 1, video down transformation on HDBaseT™ yield 1, sound breakout with pre-amp variable line-level control, and an internet browser interface module for control and arrangement of the grid.

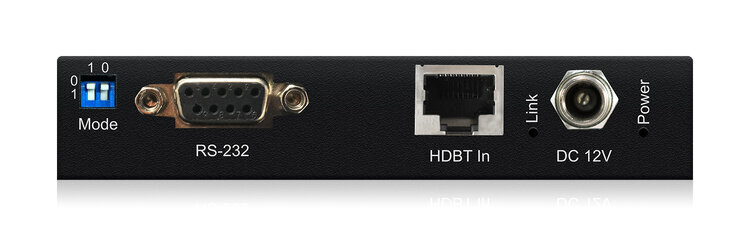

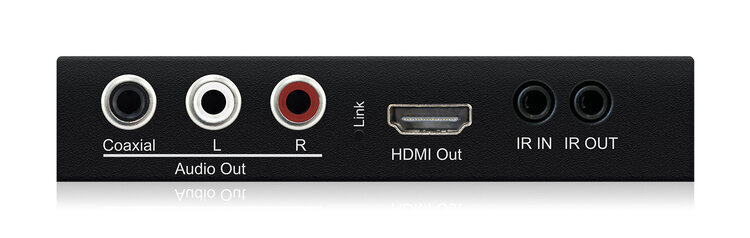

The HMXL44CS-KIT is provided with 4 x HEX70CS-RX recipients.

The Blustream 4 x 4 HDBT Matrix KIT 70M @ 1080P with 18 Gbps 4 x HDBT Out + 1 HDMI features:

• Progressed HDBaseT™ innovation offering appropriation of video and sound over a solitary CAT link
• Progressed Color Space Conversion (CSC) upholds HDMI 2.0 18Gbps detail including HDR

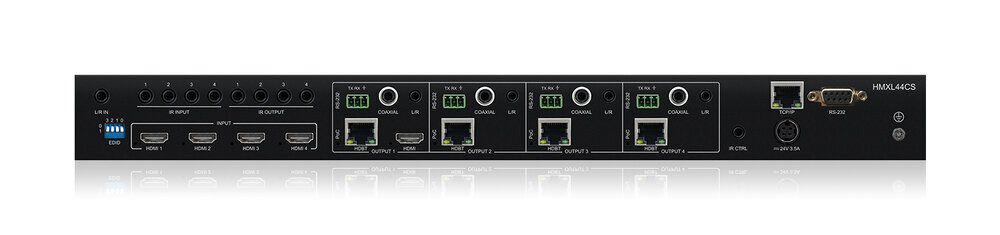

• Highlights 4 x HDMI inputs which can be freely steered to 4 x HDBaseT™ yields
• Yield 1 highlights synchronous HDMI and HDBaseT™ yield
• Video down-transformation on HDBaseT™ yield 1 takes into consideration a presentation just fit for supporting lower video goals (4K 60Hz 4:2:0 or 1080p) to get the local 4K 60Hz 4:4:4 video content while as yet showing most extreme unique 4K UHD goal on excess video yields
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Stretches out HDMI 1080p video up to 70m
• Supports all industry standard video goals including VGA-WUXGA and 480i-4K
• HDMI re-timing on the HEX70CS-RX HDBaseT™ Receivers to help settle HDMI HDCP, similarity, and handshaking issues
• Supports all known computerized HDMI sound configurations including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions
• Simple (L/R) sound information can be installed onto any blend of HDMI inputs simultaneously
• Web interface module for control and setup of the framework
• Supports bi-directional IR and RS-232 on all HDBaseT™ yields
• Provided with Blustream IR beneficiaries and producers
• Control through the front board, IR, RS-232, and TCP/IP
• Supports PoC (Power over Cable) to control provided HDBaseT™ recipients
• outsider drivers accessible for all significant control brands
• 1U Design for 19" rack mount incorporation - mounting pack included
• Progressed EDID the board
• HDCP 2.2 consistent
