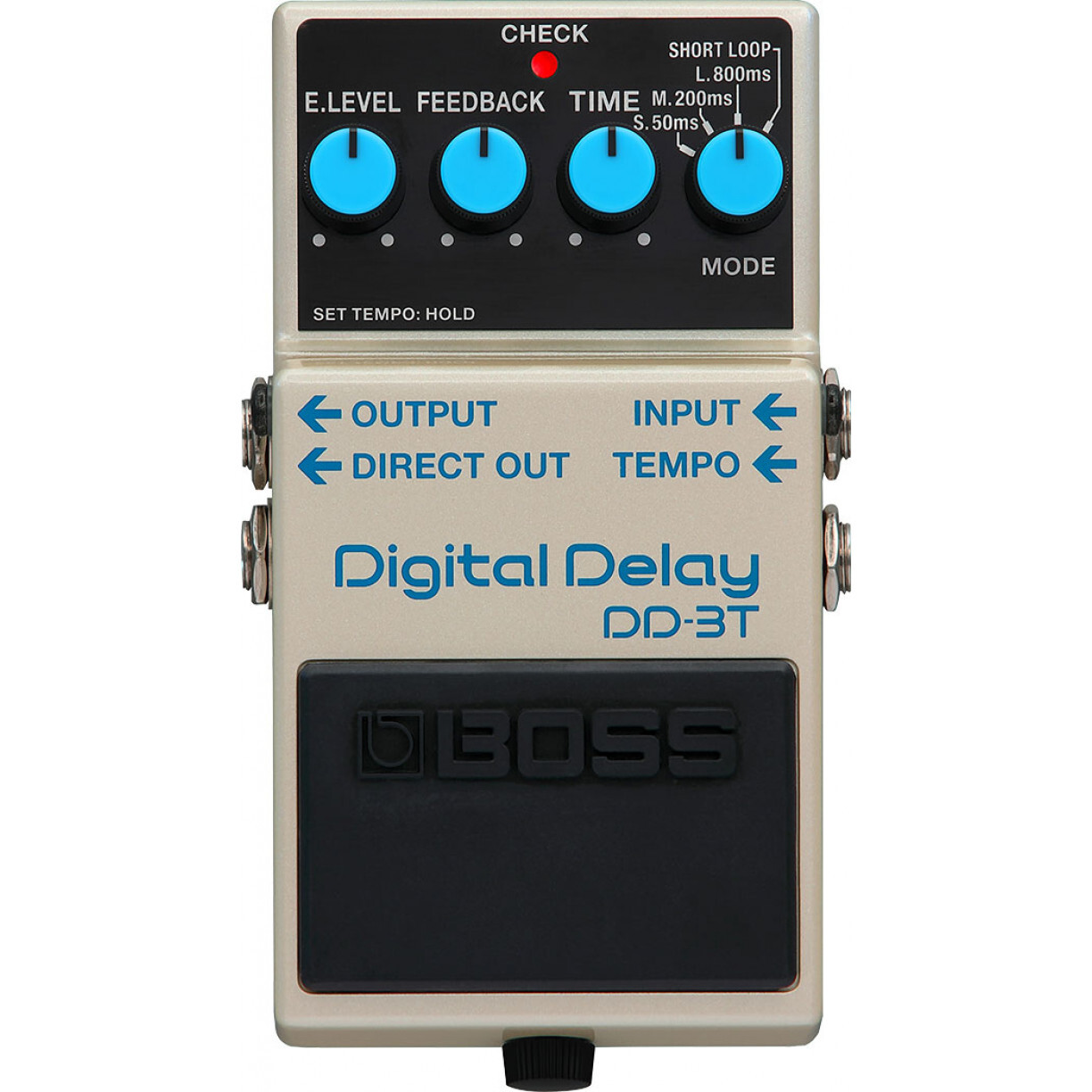

BOSS DD3T  Digital Delay GUITAR PEDAL

BOSS’s iconic DD-3 Digital Delay has been a pedalboard staple since 1986, loved everywhere for its great sound and simple operation. With the DD-3T, we’ve updated the classic stomp with enhanced functionality while fully retaining the original’s sound and control layout. It’s now possible to tap in delay tempos using the onboard switch or an external one, with your choice of three beat subdivisions. And the direct output jack has been moved next to the main output, providing easier connectivity for wet/dry setups..

SPECIFICATIONS

• Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterBypassBuffered bypassControlsMODE knob
• TIME knob
• FEEDBACK knob
• E.LEVEL(Effect Level) knob
• Pedal switchIndicatorCHECK indicator (Used for indication of check battery)ConnectorsINPUT jack: 1/4-inch phone type
• OUTPUT jack: 1/4-inch phone type
• DIRECT OUT jack: 1/4-inch phone type
• TEMPO jack: 1/4-inch phone type
• DC IN jackPower SupplyCarbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)Current Draw45 mAExpected battery life under continuous useAlkaline: Approx. 11.5 hours
• Carbon: Approx. 3 hours
• *These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
• Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
• Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA series
• Footswitch: FS-5U, FS-6, FS-7SIZE AND WEIGHTWidth73 mm
• 2-7/8 inchesDepth129 mm
• 5-1/8 inchesHeight59 mm
• 2-3/8 inchesWeight (including battery)420 g
• 15 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change wi
