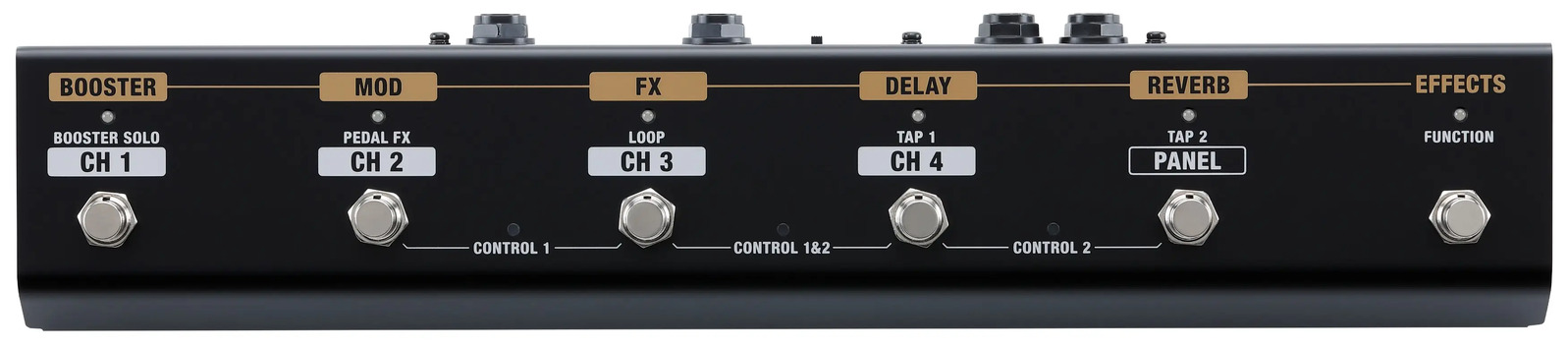

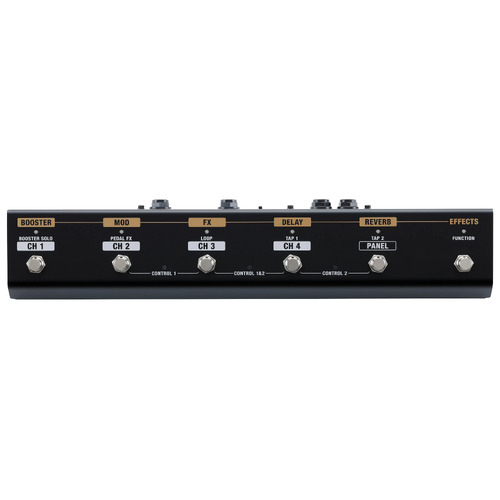

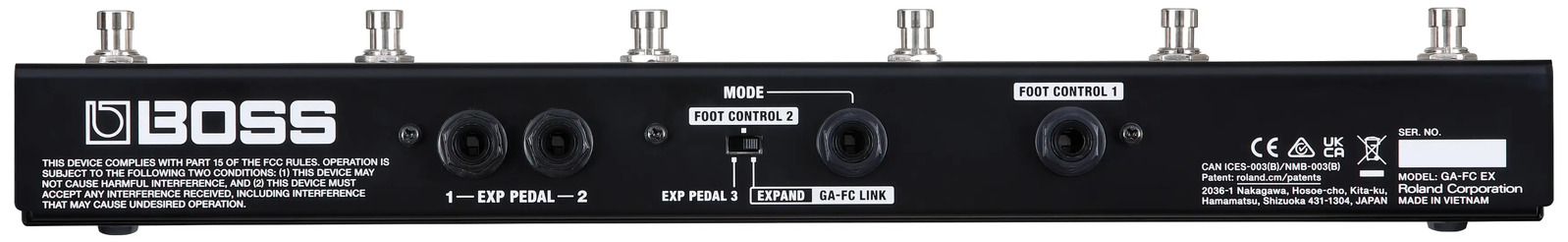

GA-FC EX Floor Controller for KTN amplifiers

More foot control capabilities is available for some BOSS amplifier models with the GA-FC EX. While adding new features for more performance flexibility, it keeps the traditional GA-FC's easy setup and user-friendly workflow.

• ·         Expanded GA-FC with enhanced functionality for select BOSS amplifiers
• ·         Rugged metal chassis and six heavy-duty footswitches
• ·         Control channel selection, effect on/off, and more
• ·         Two-color LEDs for easy view of control status
• ·         Two dedicated expression pedal jacks
• ·         Additional control jack with three-way mode selector
• ·         EXPAND mode for adding another GA-FC EX or a GA-FC
• ·         FOOT CONTROL 2 mode for operating two amps at once
• ·         EXP PEDAL 3 mode for a third expression pedal
• ·         Works as a standard GA-FC controller with other amplifier models
• ·         Connects with a single 1/4-inch TRS cable (included)—no power required

More Power and Flexibility

The GA-FC EX builds on the standard GA-FC with several enhanced features. Status LEDs with two colors make it easier to see changes when switching. And along with two dedicated expression pedal jacks, there’s an additional control jack with a three-way mode selector. It allows you to connect a third expression pedal or use the GA-FC EX for expanded applications.

Enhanced Performance Control for Katana MkII Amps

The mode selector on the GA-FC EX opens up powerful control capabilities with supported Katana MkII models.

Double Your Footswitches

Set the mode switch to EXPAND and connect an additional GA-FC EX or a standard GA-FC for even more floor control. With twice the footswitches, you have instant access to all memories and effects at once.

 Operate Two Amps

If you use two Katana MkII amps in your setup, FOOT CONTROL 2 mode is for you. Connect one GA-FC EX via two cables to select memories and effects on both amps, either together or independently.

Compatible Products

The following BOSS amplifiers support all GA-FC EX features.

• ·         Katana-Artist MkII
• ·         Katana-Head MkII
• ·         Katana-100 MkII
• ·         Katana-100/212 MkII

Future products with GA-FC EX support will be listed here as they become available.

The GA-FC EX can be used with following BOSS and Roland amplifiers that support the GA-FC Foot Controller, but only standard GA-FC control functions are available.

• ·         BOSS Katana-100, Katana-100/212, Katana-Head and Katana Artist
• ·         BOSS Nextone Special, Artist, and Stage
• ·         BOSS Waza Tube Amp Expander
• ·         BOSS Katana-210 Bass and Katana-110 Bass
• ·         BOSS Acoustic Singer Pro and Live
• ·         Roland Blues Cube Artist, Artist 212 and Tour
