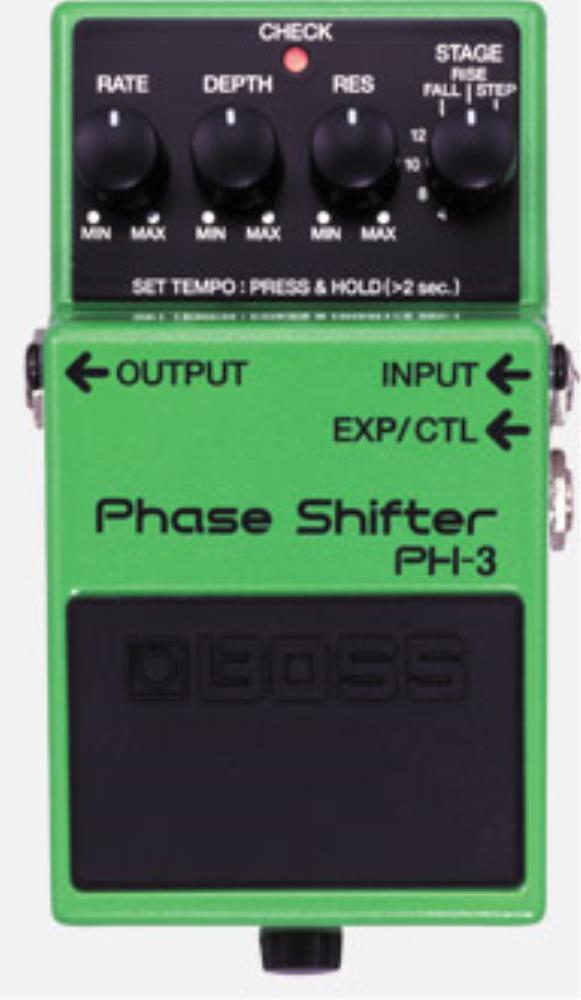

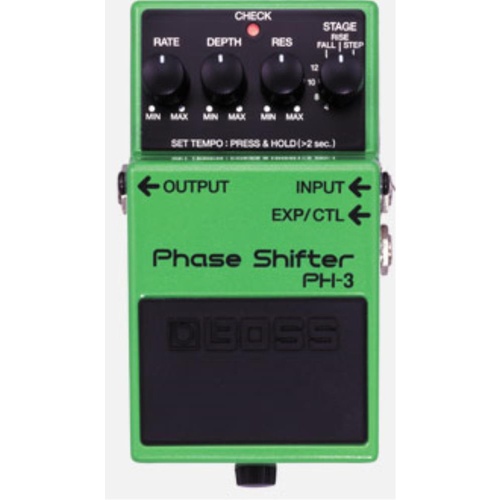

BOSS PH-3: Phase Shifter



The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.
  • Compact pedal with versatile vintage and modern BOSS phasing
  • New "Rise" and "Fall" modes create unidirectional phasing
  • Includes classic multi-stage phasers with selectable stages
  • Realtime control of Rate via optional expression pedal
  • Tap tempo sync of phasing effects
  • BOSS 5-year warranty
“Rise” and “Fall” Effects
In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.
Total Control
Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.

specifications

BOSS PH-3: Phase Shifter



Nominal Input Level
-20 dBu
Input Impedance
1 M ohms
Nominal Output Level
-20 dBu
Output Impedance
1 k ohms
Recommended Load Impedance
10 k ohms or greater
Residual Noise Level
-92 dBu (IHF-A, Typ.)
Connectors
INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
Power Supply
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw
50 mA (DC 9 V)
Accessories
Dry Battery 9 V type (6F22/9 V)
Options
AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
Size and Weight ( incl. battery )
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight
0.4 kg
0 lbs. 15 oz.
SKU PH3
Barcode # 4957054053031
Brand BOSS
Shipping Weight 0.5700kg
Shipping Width 0.150m
Shipping Height 0.065m
Shipping Length 0.092m
