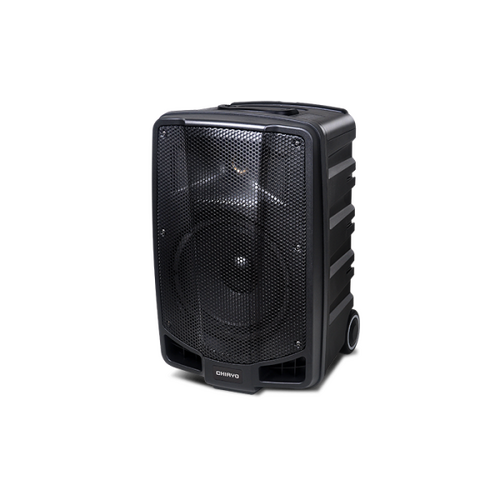

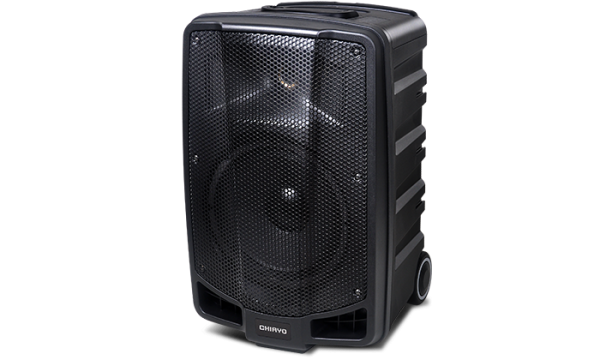

Chiayo APEX PRO Portable WirelessPA System 250-watt 10" Speaker & 2x UHF Receiver Modules

Includes:

• USB/Bluetooth player module
• 2 x SDR8200M-6 diversity UHF 100 channel receiver modules (Band 6 650 - 675 MHz)
• Lithium batteries
• DC55 dustcover
• Transmitter not included

APEX PRO provides multiple user-friendly functions that allow you to control various audio as you like. The built-in Bluetooth receiver can pair with the smartphone to play music. The USB port can be used as an audio output of a PC. Voice priority can automatically reduce the volume of the music right after stops.

Perfect experience: Two built-in 250W class-D power amplifiers drive 10” woofer and 1” tweeter and easily satisfies the amplification requirement of large events with a 500-1000 crowd, bringing an unprecedented quality sound experience.

Easy setup: CHIAYO’s receiver module can quickly search for an interference-free working channel and operate channel synchronization with one click, easy and quick to set up, allowing users to enjoy excellent sound quality.

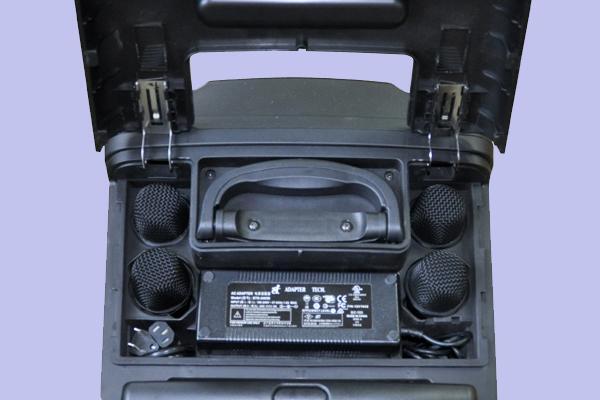

More than meets the eye: Hidden storage compartment for 4 transmitters and a switching power supply, creating a sense of perfect one-piece design.

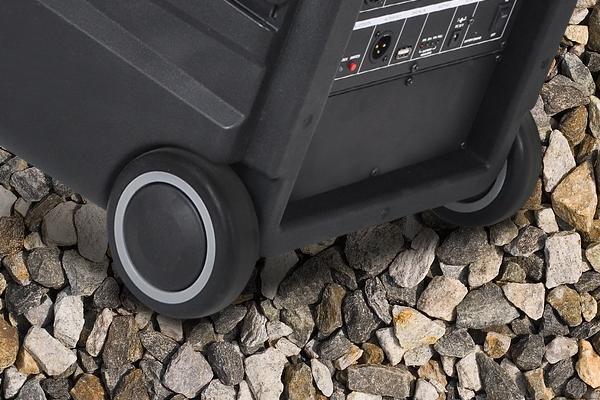

Move as you wish: Integrated retractable handle and big TPR Wear-resistant wheels for easy portability, ready to use anywhere.

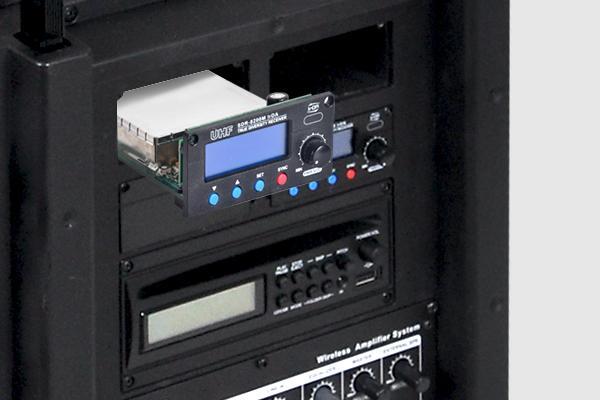

Flexible customization: The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of wireless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module. Able to connect active and passive speakers to extend the coverage. Under the wireless audio interlinking mode, 1 to many, the coverage immediately doubles and all blind spots disappear.

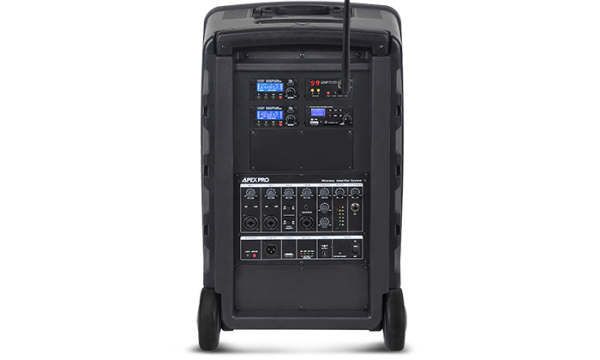

APEX PRO

FEATURES:

• Dual 250W Class-D power amplifiers built in.
• Built in 2-way 250 watt speaker system (10” + 1” HF).
• 250 watt active output for external 4~8Ω speaker.
• MIC 1 and 2 are XLR/6.3mm combo jack connectors for microphone and line inputs with individual volume control and a MIC/LINE level switch.
• LINE IN (XLR/6.3mm combo & 3.5mm jacks) with volume control.

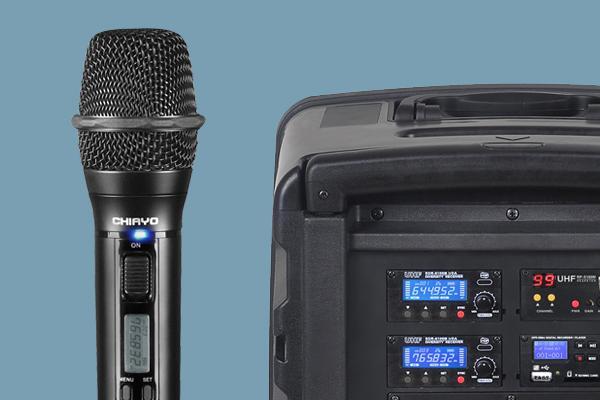

• Up to 4 diversity receiver modules with 100 frequencies.(optional)
• Scan and Sync button for quick and simple mic channel set-up.
• Built in Bluetooth receiver for music streaming.
• DIGITAL IN (USB 2.0) allows playing audio files directly from computer via USB cable.
• ACTIVE OUT (XLR jack) for multi-unit audio linking.
• SPEAKER OUT (6.3mm jack) for an external 8Ω passive speaker with volume control.
• REVERB with bypass, and volume control for wired and wireless microphones (switchable).
• VOICE PRIORITY function automatically ducks music during speech (switchable).
• 3-band equalizer (BASS / MIDDLE / TREBLE) for all audio inputs.
• Digital limiter prevents output distortion, with 6-step LED audio meter indicator.
• Smart charging circuit with 4-step LED battery indicators and charging LED.

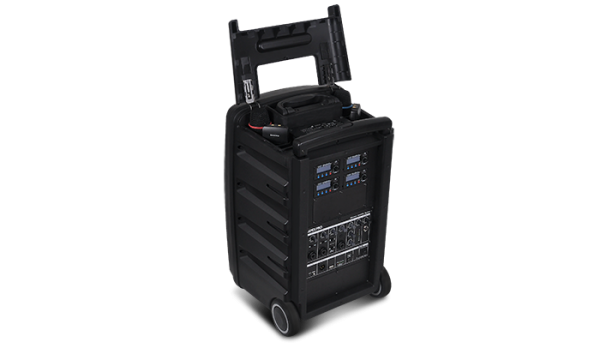

• Storage compartment for 4 transmitters (handheld x 4 pcs or handheld x 2 pcs + beltpack x 2pcs) and a switching power supply.
• User friendly battery compartment design for simple battery replacement.
• Integrated retractable handle and BIG wheels for easy portability.
• Tripod stand mountable with ST-50.
• Up to 12 hours operating time per charge with lithium battery and 6 hours with Lead-Acid battery.
• 2 power modes: Internal Rechargeable battery & DC jack.

SPECS:

• Model:    APEX PRO
• Onboard Class D amplifier:    Dual 250W Class-D power amplifiers
• Maximum Output Power:
  • Built in 2-way 240 watt speaker system
  • 240 watt active output for external 4~8ohm speaker
• Speaker system:     10" LF, 1" HF and crossover
• Sensitivity:    Maximum 110 dB
• T.H.D.:     < 0.5%
• Freq. response:     50Hz-20KHz±3dB
• Audio Inputs:
  • MIC/LINE in x 2 (6.3mm/XLR COMBO)
  • LINE IN x 2 (6.3mm/XLR COMBO, 3.5mm)
  • Digital in (USB 2.0)
  • Up to 4 wireless microphones
• Audio Output:    ACTIVE OUT (XLR)
• External speaker:    8Ω (6.3mm), with volume control
• Controls:    EQUALIZER,REVERB & VOICE PRIORITY on wired/wireless mics
• Audio meter indicator:    6 LED indicators
• Power supply:     Input: 100-240V AC / 30-32V DC, 4A
• Battery type:      Lithium
  • Battery spec:       25.9V, 7.8A
  • Battery Q'ty:     1
  • Battery Indicator:    4 LED indicators
  • Operating time :       8-10hours in music, >12 hours in speech
  • Charging time:       about 8hours
• Storage
  • Transmitter: handheld x 4 pcs or handheld x 2 pcs + beltpack x 2pcs
  • Switching power supply: 1pc
• Dimension (mm):     550(H) x 360(W) x 340(D)
• Weight (kg):     15.7

SDR8200M-6 - 102 CHANNEL TRUE DIVERSITY UHF RECEIVER MODULE BAND 6

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
