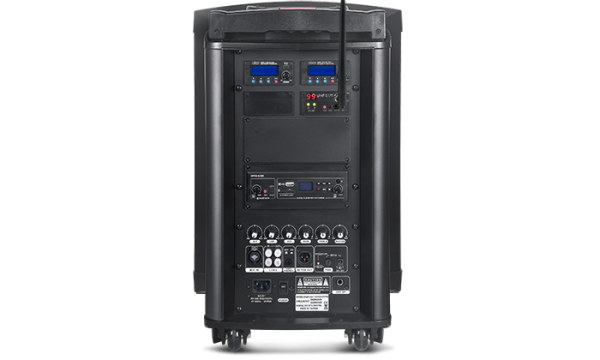

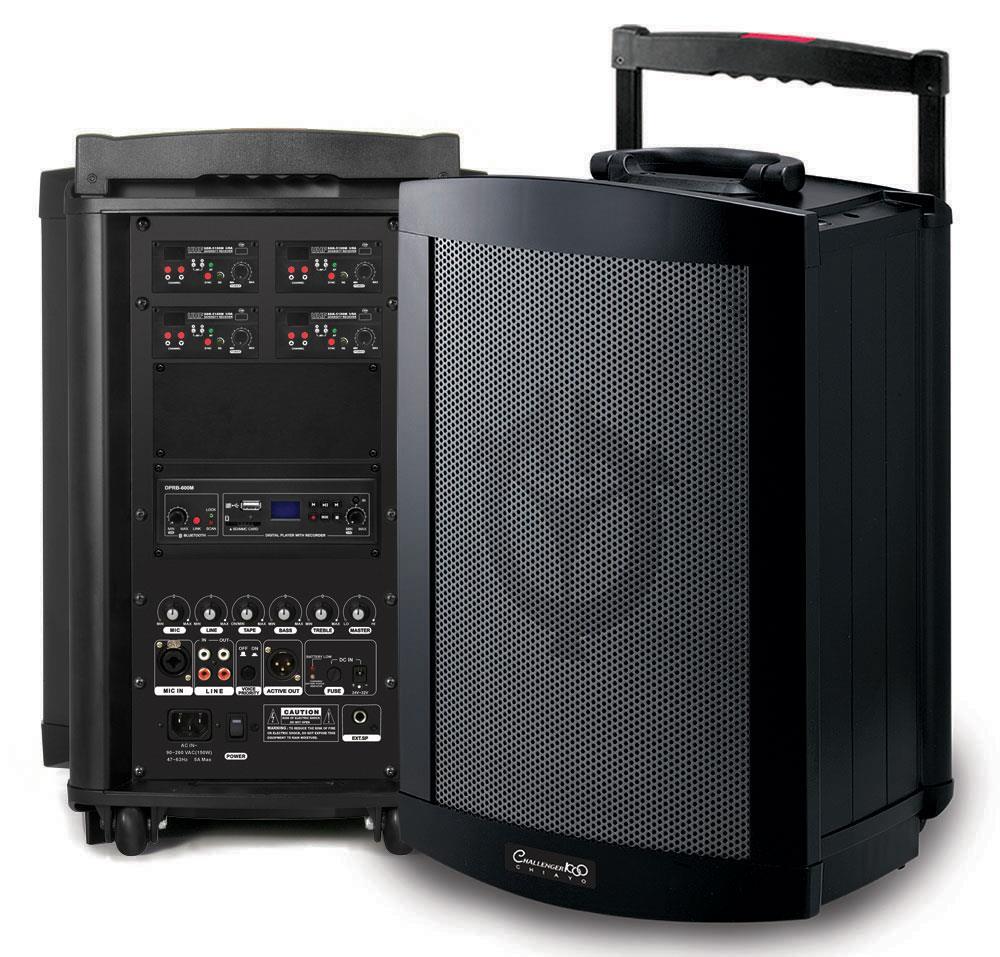

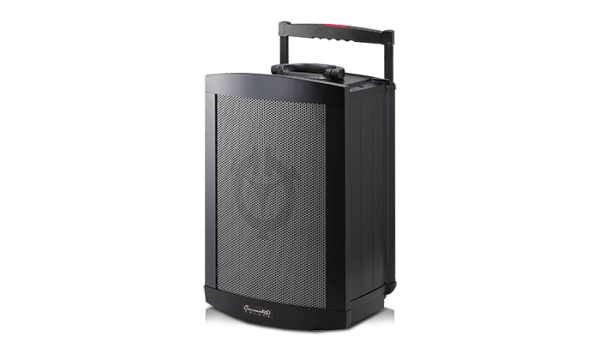

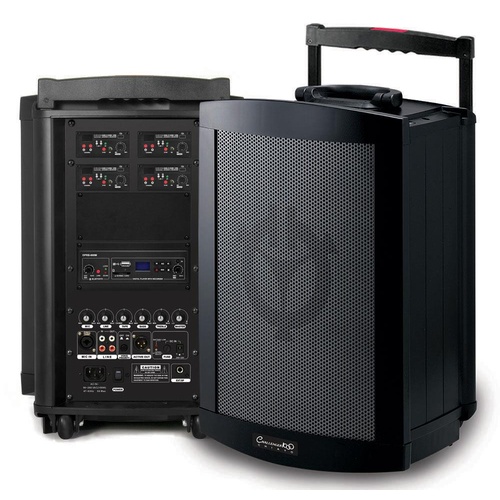

Chiayo CHALLENGER 1000 Series Portable PA System 150 watt 10" Speaker & 2x UHF Receiver Modules

Includes:

• DPRB600M Digital rec/play, USB/Bluetooth module
• 2 x SDR8200M-6 diversity UHF 100 channel receiver modules (Band 6 650 - 675 MHz)
• Lead acid batteries
• DC40 dustcover

CHALLENGER 1000, CHIAYO's classic flagship PA amplifier and iF award winner, provides four module slots for installing receiver, transmitting, MP3 recorder player and Bluetooth modules, allowing you to operate multimedia and connect to active speakers for audio link that create a more powerful listening experience.

Louder and clear: Built-in 200W class-D power amplifier drives 10” 3-way  full range speaker and easily satisfies the amplification requirement of large events with a 500-1000 crowd, bringing an unprecedented quality sound experience.

Easy setup: CHIAYO’s receiver module can quickly search for an interference-free working channel and operate channel synchronization with one click, easy and quick to set up, allowing users to enjoy excellent sound quality.

Move as you wish: Ruggedly aluminum enclosure with integrated retractable handle, wheels and built-in batteries for easy portability, always being the focus wherever you go.

Flexible customization: The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of wireless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module.

Far reaching: Able to connect active and passive speakers to extend the coverage. Under the wireless audio interlinking mode, 1 to many, the coverage immediately doubles and all blind spots disappear.

Challenger 1000 FEATURES

• High efficiency Class-D amplifier produces 120W RMS audio output (maximum music output 150W)
• All-In-One! Easy to operate in both indoors and outdoors.
• Comes with various types of new receiver, repeater, MP3 player and Bluetooth modules.
• Excellent aesthetic design built from a patented rugged aluminum enclosure.
• Rechargeable lead acid batteries eliminate all cables so you can take it anywhere!
• Smart charging circuit with LED indicator.
• Speaker system: 10” full range coaxial speaker.
• Integrated preamplifier, mixer and amplifier circuitry.
• Anti-interference Pilotone circuitry delivers superior wireless reception.
• Repeater transmitter module in combination with Challenger Slave speaker for extended operating distance.
• Voice Priority circuitry automatically ducks music during speech.
• SLAVE (active speaker) can have 1 or 2 receiver modules installed allowing it to function as an independent PA system
• Wired Audio Link:Several SLAVEs can be linked through IN/OUT jacks to form a larger wired system.
• Wireless Audio Link:Repeater transmitter enables wireless link between Challenger Master and Challenger Slave speakers. A larger system of several SLAVEs can be wirelessly linked using wireless built-in receiver/transmitter modules. No cables or wires at all!
• Integrated retractable handle and wheels for easy portability.
• Modules Available: CD/USB player, Digital video player/USB/SD player, Wireless Microphone Receiver , Repeater Transmitter, Bluetooth Receiver + Digital Player / Recorder.
• Tripod stand mountable with ST-50 (standard)/ST-51 (wind-up).
• Trolley Base (TB-50) for moving on rough surface.

SPECS

SDR8200M-6 - 102 Channel True Diversity UHF Receiver Module 650-675MHZ

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
