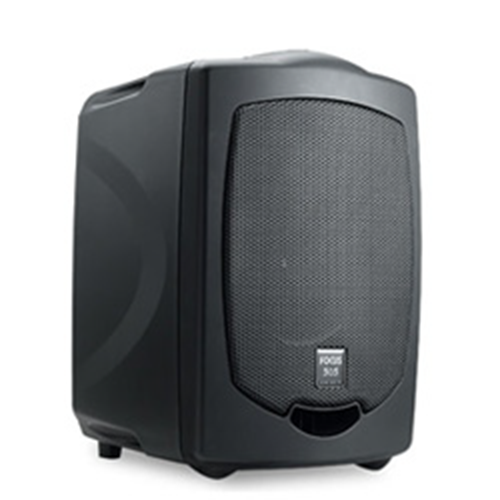

Chiayo FOCUS 505 Portable PA System 50-watt 6.5" Speaker & 1x UHF Receiver Module

Includes:

• DPRB500M Digital rec/play, USB/Bluetooth module
• 1 x SDR8200M-6 diversity UHF 100 channel receiver module
• Lead acid batteries.
• Band 6 650 - 675 MHz.
• Transmitter not included

FOCUS 505, not only small and lightweight, but also offers many useful functions. More than 12 hours of operation per lead-acid battery charge. The wireless microphone comes in 2.4 GHz digital and UHF analog for selection. The digital system utilizes FHSS effectively that avoids interference from other 2.4 GHz devices. The treble and bass equalizer controls even more satisfies the ears of demanding users.

Small but loud: Built-in 50W class-D power amplifier drives 6.5” full range speaker and easily satisfies the amplification requirement of medium-small events with a 300-500 crowd.

Multiple musical sensations: Volume, treble and bass equalizers to music and voice, adding a variety of sound controls based on user's need.

Flexible customization: ​The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of wireless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module.

Long battery duration: More than 12 hours of operation per lead-acid battery charge. Battery compartment design makes battery replacement much easier.

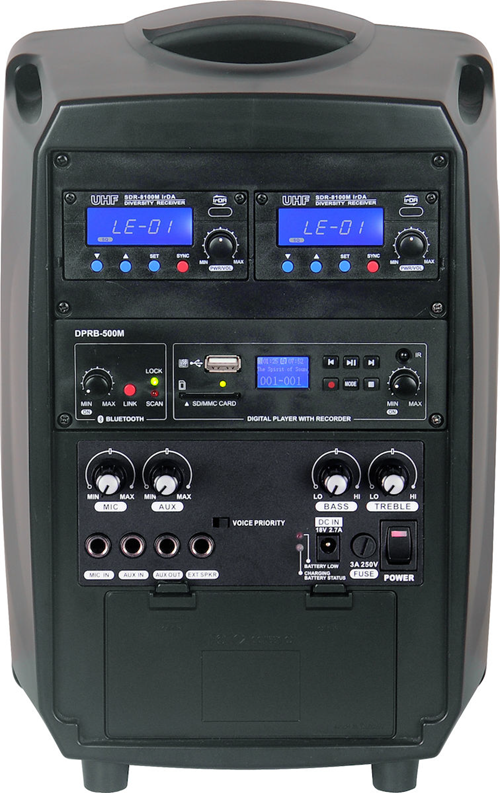

FOCUS 505

Features

• 50W Class-D amplifier to power a 6" full-range driver.
• MIC IN (Φ6.3mm jack) for microphone with volume control.
• AUX IN (Φ6.3mm jack) with volume control.
• Up to 2 diversity receiver modules with 100 frequencies.(optional)
• Scan and Sync button for quick and simple mic channel set-up.
• SPEAKER OUT (Φ6.3mm jack) for an external 4Ω passive speaker.
• VOICE PRIORITY automatically ducks music when a microphone is used (switchable).
• 2-band equalizer (BASS / TREBLE) for all audio inputs.
• Smart charging circuit with battery indicator LED and charging LED.
• User friendly battery compartment design for simple battery replacement.
• Tripod stand mountable with ST-40.
• Up to 12 hours operating time per charge with Lead-Acid battery.
• 2 power modes: Internal Rechargeable battery & DC jack.

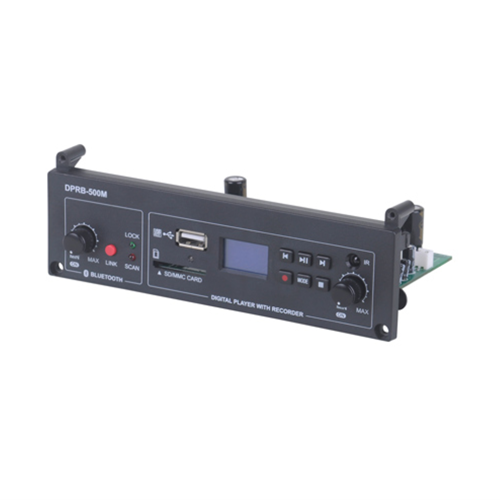

DPRB-500M - MP3 Recorder + Bluetooth Receiver Module

Features

• MP3 recorder player with Bluetooth receiver function.
• Able to record and read MP3 files in the USB and SD card.
• Clear and intuitive LCD display for easy operation and quick set-up.
• Selectable repeat and play modes.
• Remote control for more setting convenience.
• Individual power / volume control for MP3 and Bluetooth.

SDR8200M-6 - 102 Channel True Diversity UHF Receiver Module 650-675MHZ

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
