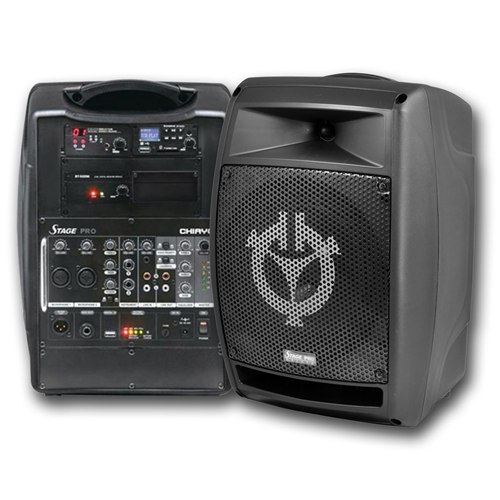

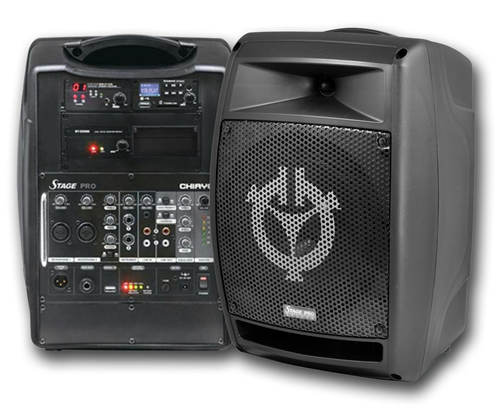

Chiayo STAGE PRO Portable Wireless Mixer PA System 200-watt w/ Built-in Bluetooth/USB Player Recorder

STAGE PRO provides four module slots for installing receiver, transmitting and MP3 recorder player modules. It can playback music by pairing the smartphone with the integrated Bluetooth receiver. Audio inputs include 3.5Ø, RCA and two 6.3Ø instrument jacks with independently adjustable volume. Audio outputs to an external amplifier or recorder via the 6.3Ø or RCA jacks, or to an external active speaker via the XLR jack. Its versatile and considerate design successfully combines sound and functionality.

Exceptional listening experience: Built-in 200W class-D power amplifier drives 8” woofer and 1” tweeter and easily satisfies the amplification requirement of large events with a 500-1000 crowd.It can also connect to CHIAYO 12" subwoofer, bringing an unprecedented quality sound experience.

Multiple musical sensations: Volume and treble, meddle and bass equalizers specific to music, adding a variety of sound controls based on user's need.

Loudness compensation: Loudness compensation automatically boosts high and low sound frequencies. Even at low volume levels, you can clearly hear the treble and bass effects and enjoy the most natural sound playback.

Show personal unique sound: Adjustable treble, bass effects and echo for wired and wireless microphones. Echo can be enabled/disabled as required.

SPECS:

• Model: STAGE PRO
• Max power output: 200W, 4Ω load (class-D)
• Speaker system: 8"LF + 1"HF & electronic crossover
• Frequency response: 50Hz-20KHz±3dB
• T.H.D.: < 0.5%

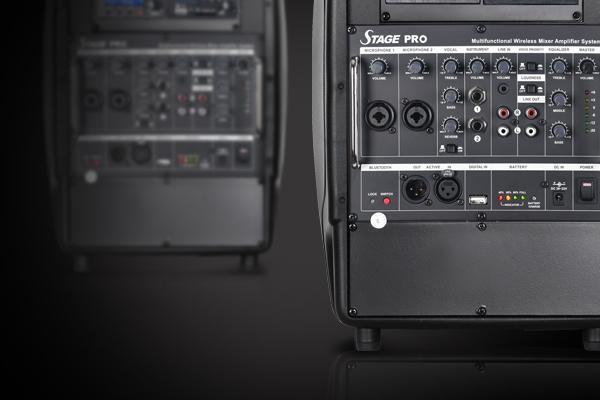

• Audio input: MIC in x2 (Ø6.3mm/XLR COMBO); LINE in x2 (RCA L/R, Ø3.5mm); Instrument in x2 (Ø6.3mm)DIGITAL in (USB); BLUETOOTH in
• Audio output: LINE out (RCA L/R); ACTIVE out (XLR)
• Power supply: 100-240V AC, 30-32V DC / 4A
• Battery: Lead-Acid (12V / 5Ah) x2 or Lithium (25.9V / 7.8Ah) x1
• Operating time: Lead-Acid: 5-6 hours in music, >10 hours in speech; or Lithium: 8-10 hours in music, >12 hours in speech
• Charging time: Lead-Acid: about 6 hours; or Lithium: about 8 hours
• Dimensions (mm): 290 x 250 x 424
• Weight (kg): Lead-Acid: 12.5; Lithium: 9.5
