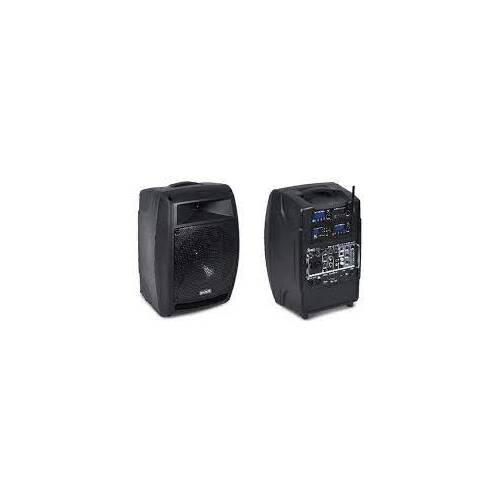

Chiayo STAGE PRO Portable Wireless Mixer PA System 200-watt 8" 2-way Speaker & 1x UHF Receiver Module

Includes:

• DPRB600M Digital rec/play, USB/Bluetooth module
• 1 x SDR8200M-6 diversity receiver module (Band 6 650 - 675 MHz)
• Lead acid batteries
• DC35 dustcover.
• Transmitter not included

STAGE PRO provides four module slots for installing receiver, transmitting and MP3 recorder player modules. It can playback music by pairing the smartphone with the integrated Bluetooth receiver. Audio inputs include 3.5Ø, RCA and two 6.3Ø instrument jacks with independently adjustable volume. Audio outputs to an external amplifier or recorder via the 6.3Ø or RCA jacks, or to an external active speaker via the XLR jack. Its versatile and considerate design successfully combines sound and functionality.

Exceptional listening experience: Built-in 200W class-D power amplifier drives 8” woofer and 1” tweeter and easily satisfies the amplification requirement of large events with a 500-1000 crowd.It can also connect to CHIAYO 12" subwoofer, bringing an unprecedented quality sound experience.

Multiple musical sensations: Volume and treble, meddle and bass equalizers specific to music, adding a variety of sound controls based on user's need.

Loudness compensation: Loudness compensation automatically boosts high and low sound frequencies. Even at low volume levels, you can clearly hear the treble and bass effects and enjoy the most natural sound playback.

Show personal unique sound: Adjustable treble, bass effects and echo for wired and wireless microphones. Echo can be enabled/disabled as required.

Product Features:

• Ruggedly built compact ABS speaker enclosure.
• 200W Class-D amplifier to power 8” woofer and 1” tweeter and electronic crossover.
• Up to 4 diversity receiver modules with 100 frequencies.(optional)
• Scan and Sync button for quick and simple mic channel set-up.
• MIC IN 1 and 2 are XLR/Φ6.3mm combo jack connectors for microphone input with individual volume control.
• INSTRUMENT IN provides two Φ6.3mm jacks for two instrument level inputs.
• LINE IN (RCA L/R & Φ3.5mm jacks) with volume control.
• DIGITAL IN (USB 2.0) allows playing audio files directly from computer via USB cable.
• ACTIVE IN/OUT (XLR jacks) for multi-unit audio linking.
• LINE OUT (RCA L/R jack) for external audio recording.
• 2-band equalizer (BASS / TREBLE) for wired microphones.
• 3-band equalizer (BASS / MIDDLE / TREBLE) for music.
• VOICE PRIORITY automatically ducks music when a microphone is used (switchable).
• REVERB with bypass for wired and wireless microphones (switchable).
• LOUDNESS function boosts bass/treble performance (switchable).
• Digital limiter prevents output distortion, with 6-step LED audio meter indicator.
• Smart charging circuit with 4-step LED battery indicators and charging LED.
• User friendly battery compartment design for simple battery replacement.
• Tripod stand mountable with ST-50.
• More than 12 hours operating time per charge with lithium battery and 10 hours with Lead-Acid battery.
• 2 power modes: Internal Rechargeable battery & DC jack.

• Power supply: 100-240V AC, 30-32V DC / 4A
• Battery: Lead-Acid (12V / 5Ah) x2 or Lithium (25.9V / 7.8Ah) x1
• Operating time: Lead-Acid: 5-6 hours in music, >10 hours in speech; or Lithium: 8-10 hours in music, >12 hours in speech
• Charging time: Lead-Acid: about 6 hours; or Lithium: about 8 hours
• Dimensions (mm): 290 x 250 x 424
• Weight (kg): Lead-Acid: 12.5; Lithium: 9.5

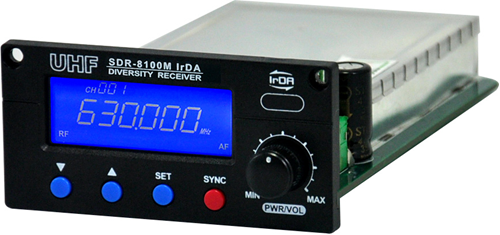

SDR8200M-6 - 102 Channel True Diversity UHF Receiver Module 650-675MHZ

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
