description

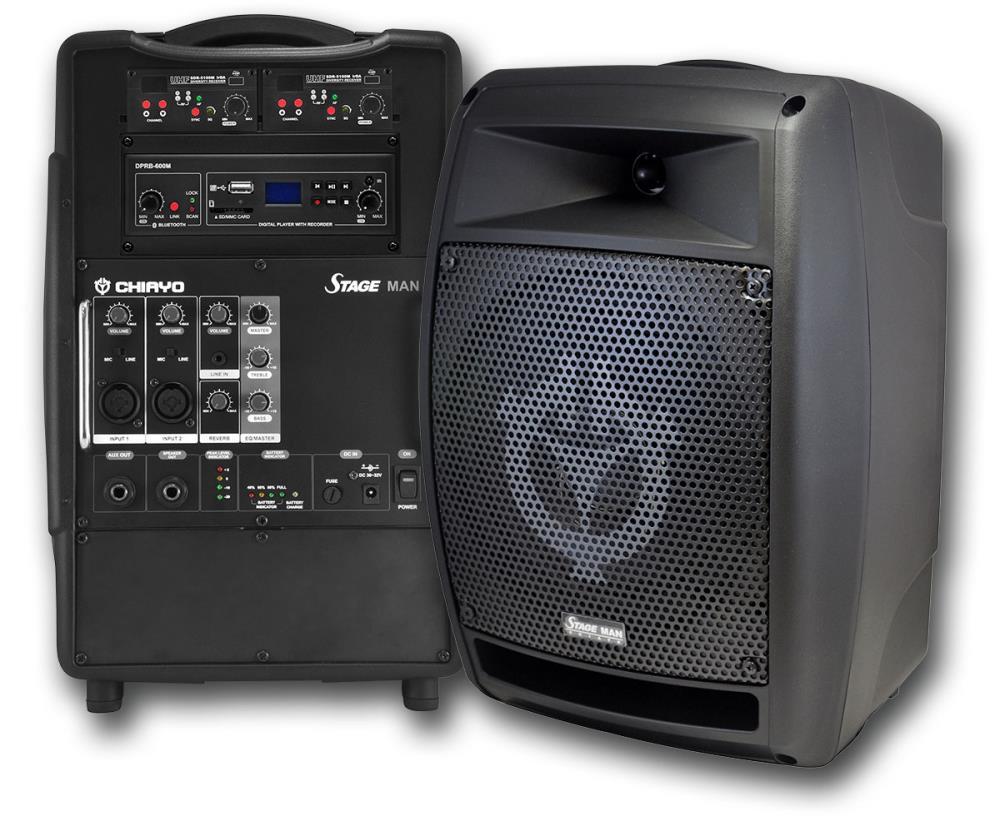

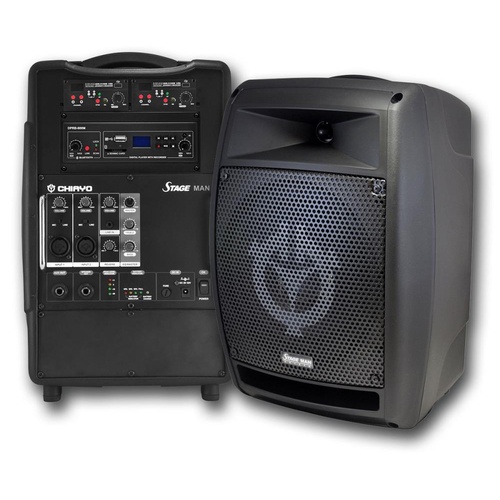

Chiayo STAGEMAN Portable Wireless PA System 150-watt 8" Speaker & 2x SDR8200M-6 UHF Receiver Modules

Includes:

• DPRB600M Bluetooth/SD/USB Player Recorder Module
• 2 x SDR8200M-6 diversity receiver modules (Band 6 650 - 675 MHz)
• Lead acid batteries
• Cabled microphone
• DC35 dustcover
• Transmitter not included

The Chiayo StageMan Portable PA comes as per the above wireless configuration and options as listed in the heading with the options for wireless, bluetooth and CD/USB player add-ons as listed below the system features section.

StageMan provides four module slots for installing receiver, transmitting and MP3 recorder player modules. It can playback music by pairing the smartphone with the integrated Bluetooth receiver. Audio input of 3.5Ø jack with independently adjustable volume. Audio outputs to an external amplifier or recorder via the 6.3Ø jack, or to an external active speaker via the XLR jack. STAGE MAN can provide excellent sound performance with useful functions that you might need.

All You will need to do is purchase either a handheld microphone or Belt pack (your choice of headset or lapel)

Chiayo Electronics have been designing and manufacturing portable PA and sound systems for over 30 years. Chiayo portable PA’s are used in a variety of applications and setups such as education, worship services, weddings and other community events, sports and band, auctions and government use for board presentations and OHS outdoor uses .

The Chiayo Stage Man has been DESIGNED with performers, presenters and instructors in mind, the Stage Man as it has been engineered with a heavy duty lightweight 150 watt power amplifier and a punchy  8" full range speaker in a compact and rugged ABS enclosure. This unit van be purchased in a few configurations with up to two wireless microphones or belt packs PLUS including two microphone and instrument inputs as well Bluetooth and USB players standard.

There is also accessories including powered and passive extensions speakers, stands to elevate the Stage Man unit for even greater coverage, shoulder style carry bags for the speaker stands, wireless microphones (Handheld, Lapels & Headsets), plug-in corded microphones, an omni style swivel/wall bracket for mounting on a wall and more.

We will include a dust cover with pockets for accessories and transmitters and a clear see through rear panel so you can still use the Stage Man with the cover on. Chiayo - Australia's leading portable PA system specialist just keeps on getting better.

Product Features

• Includes Class-D digital power amplifier delivering 100W to the internal 8" full range speaker and 100W to an external speaker.
• 2 power modes: Internal Rechargeable battery & DC jack.
• Up to 10 hours operating time per charge with lithium battery and 6 hours with Lead-Acid battery.
• User friendly battery compartment design for simple battery replacement.
• High efficiency system; compact cabinet and efficient 8" full range speaker for live performance.
• Optional CD/USB/SD/Digital video player modules (including remote control) and a digital recorder/player module.
• Up to 4 diversity receiver modules with 100/16 selectable frequencies in each system (optional).
• Automatic Digital limiter with 6 LED indicators prevents output distortion.
• 2-band equalizer, BASS/TREBLE and MASTER volume control.
• AUX OUT (6.3mm jack) for external audio recording.
• LINE IN (3.5mm jack) with individual volume control.
• MICROPHONE 1 and 2 are XLR/6.3mm combo jack connectors for wired microphone inputs with individual volume control and a MIC/LINE level switch.
• REVERB control for wired and wireless microphones
• AUX OUT (6.3mm jack) and SPEAKER OUT (6.3mm jack) for external passive speakers.
• Smart charging circuit with 4-step LED battery indicators and charging LED.
• Tripod stand mountable with ST-50.

SDR8200M-6 - 102 Channel True Diversity UHF Receiver Module 650-675MHZ

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
