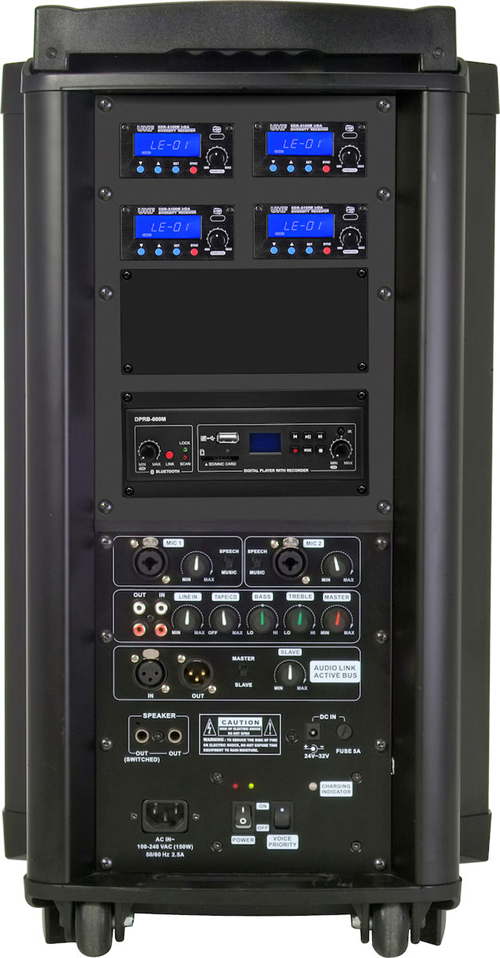

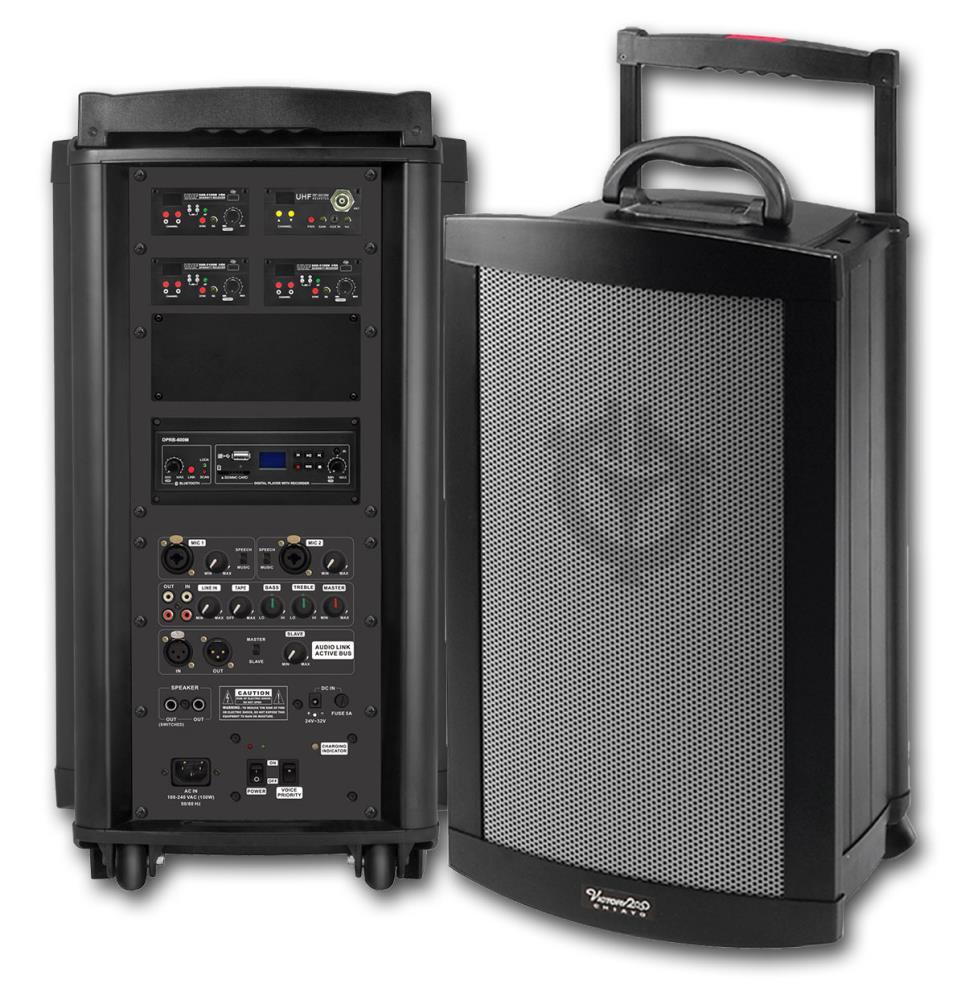

Chiayo VICTORY 2000 Series Portable PA System 200-watt 10" Speaker & 2x UHF Receiver Modules

Includes:

• DPRB600M Digital rec/play, USB/Bluetooth module
• 2 x SDR8200M-6 diversity UHF 100 channel receiver module (Band 6 650 - 675 MHz)
• Lead acid batteries
• DC50 dustcover
• Transmitter not included

VICTORY 2000, CHIAYO's classic flagship PA amplifier and iF award winner, provides four module slots for installing receiver, transmitting, MP3 recorder player and Bluetooth modules, allowing you to operate multimedia and connect to active speakers for audio link that create a more powerful listening experience.

All-in-one and easy to operate both indoors and outdoors, the Victory 2000 is a powerful yet compact battery-operated portable sound system. This system features Bluetooth, SD/USB recording capability! The beauty of this setup is that you can add up to 4 wireless microphones, giving you the ultimate versatility in this great little punchy package.

The are quite popular for Schools / Carnivals / Lecture Theatres / Health and fitness clubs / Sporting events / Functions / Conferences / Promotions / Presentations / Auctions / Houses of Worship / Marriage Celebrants. Because of their solid build and engineering design, their size defies their sound quality and applications for excellence in sound projection


Louder and clear: Built-in 200W class-D power amplifier and crossover drive 10” woofer and 1” tweeter and easily satisfy the amplification requirement of large events with a 500-1000 crowd, bringing an unprecedented quality sound experience.

Easy setup: CHIAYO’s receiver module can quickly search for an interference-free working channel and operate channel synchronization with one click, easy and quick to set up, allowing users to enjoy excellent sound quality.

Move as you wish: Ruggedly aluminum enclosure with integrated retractable handle, wheels and built-in batteries for easy portability, always being the focus wherever you go.

Flexible customization: The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of wireless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module.

Far reaching: Able to connect active and passive speakers to extend the coverage. Under the wireless audio interlinking mode, 1 to many, the coverage immediately doubles and all blind spots disappear.

Victory 2000 FEATURES

• High efficiency Class-D amplifier produces 120W RMS audio output (maximum music output 200W).
• All-In-One! Easy to operate in both indoors and outdoors.
• Excellent aesthetic design built from a patented rugged aluminum enclosure.
• Rechargeable lead acid batteries eliminate all cables so you can take it anywhere!
• Smart charging circuit with LED indicator.
• Speaker system: 10" LF, 1" HF and crossover.
• Integrated preamplifier, mixer and amplifier circuitry.
• Anti-interference Pilotone circuitry provides superior wireless reception.
• Wireless transmitter module available for longer and wider operating distance.
• Two XLR-Jack wired microphone inputs.
• Audio outputs: Line out (RCA), Active out.
• Audio inputs: Line in (RCA).
• Volume controls: Mic in, Line in, Digital video player, Bass, Treble, Master.
• Switchable MIC-IN audio mode between Speech (balanced)/Music (unbalanced).
• Voice Priority circuitry automatically ducks music during speech.
• SLAVE (active speaker) can have 1 or 2 receiver modules installed allowing it to function as an independent PA system
• Wired Audio Link:Several SLAVEs can be linked through IN/OUT jacks to form a larger wired system.
• Wireless Audio Link: A larger system of several SLAVEs can be wirelessly linked using wireless built-in receiver/transmitter modules. No cables or wires at all!
• Integrated retractable handle and wheels for easy portability.
• Optional device: CD/USB player, Digital video player/USB/SD player, receiver/transmitter/Bluetooth receiver/Digital music player with recorder.
• The CD/USB player, Digital video player/USB/SD player can be remotely operated from both front and rear of the amplifier.
• Tripod stand mountable with ST-50 (standard)/ST-51 (wind-up).
• Trolley Base (TB-50) for moving on rough surface.
• Comes with DC50 dust cover.

SPECS:

SDR8200M-6 - 102 Channel True Diversity UHF Receiver Module 650-675MHZ

Features

• Patented IrDA technology for 2-way sync between transmitter and receiver.
• UHF synthesized true diversity for highest quality and dropout-free reception.
• Helical Filter RF front end ensures high selectivity.
• Excellent IF design delivers high image and spurious rejection.
• Anti-interference Pilotone circuit.
• RF noise squelch circuit.
• LCD for easy adjustment. Displays channel, frequency, RF level, AF level, antenna selection and transmitter battery level.
• Balanced and unbalanced audio output.
• 20-pin connection for easy installation.
