description

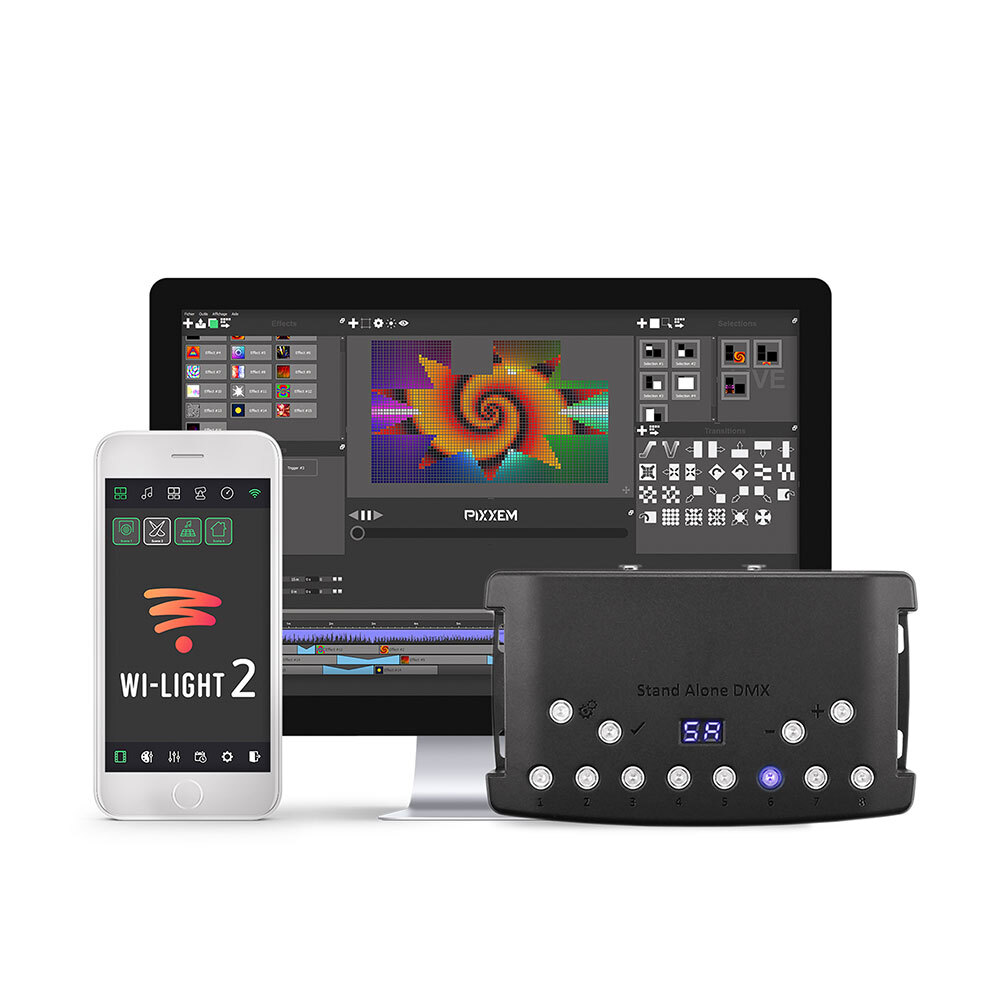

The CQSA-E 1024 includes an Ethernet port in addition to the USB. This gives long distance access and communications with the device anywhere from a Local Networks (LAN or WLAN). Connected to an access point or a Wifi router you have easy controls and settings with a mobile or tablet using the Wi-Light 2 APP. CQSA-E includes all the same hardware features as the CQSA 1024 but without RS232 triggers. Complete 5-in-1 Stand Alone lighting control solution with DMX, In/Out, Art-Net Out, sACN Out, NODE (art-Net to DMX decoder), Splitter. CQSA-E is the essential tool for all your lighting projects, performances and installations.• Ethernet to DMX device • 2×512 or 1024 channels in/out on PC and Stand Alone • ETHERNET port for Local Area Network (LAN, WLAN) • Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet) • Art-net 2×512 on Ethernet (SD required, 8×512 per device in option) • sACN 2×512 on Ethernet (SD required, 8×512 per device in option) • Node 2 ports, Art-Net to DMX decoder and converter (DHCP, Fix IP) • Multi Zones Play up to 5 scenes a time (Stand alone) • SD Card memory (Micro SD, all FAT format, up to 256 Gb) • Splitter mode and merging DMX • Internal memory (No SD card required) • 128 devices max on Network, 12 max on USB
DMX Output Channels: 2x512 or 1024 In/Out channels PC and 512 Out Stand Alone
Zone: 5 Zones, play up to 5 different scenes/sequences at time in Stand Alone
Memory: Micro SD Card (all FAT format, up to 256 GB) + Internal memory (No SD card required)
DMX Modes: DMX In/Out, DMX Splitter, DMX Record, DMX Trigger

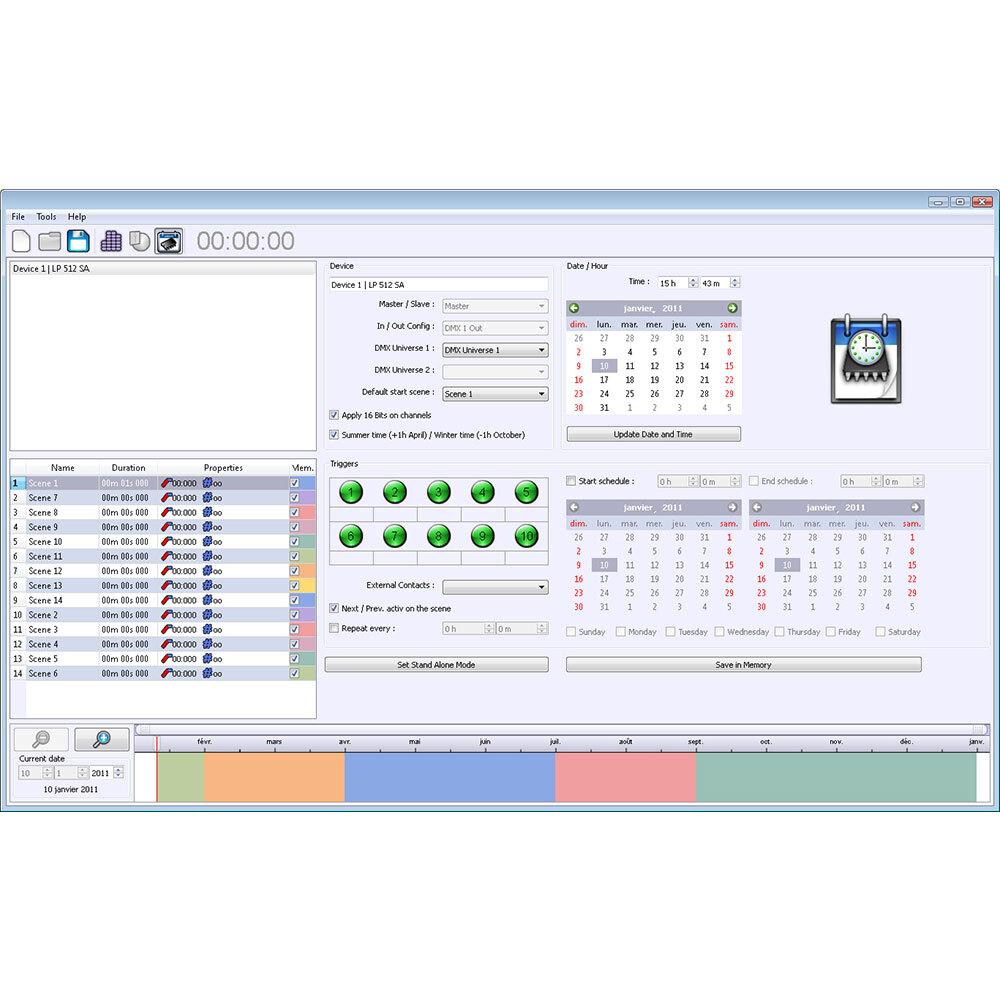

Stand Alone Options: 16-bit and fine channel management Cross Fade time between scenes Default start scene when power up

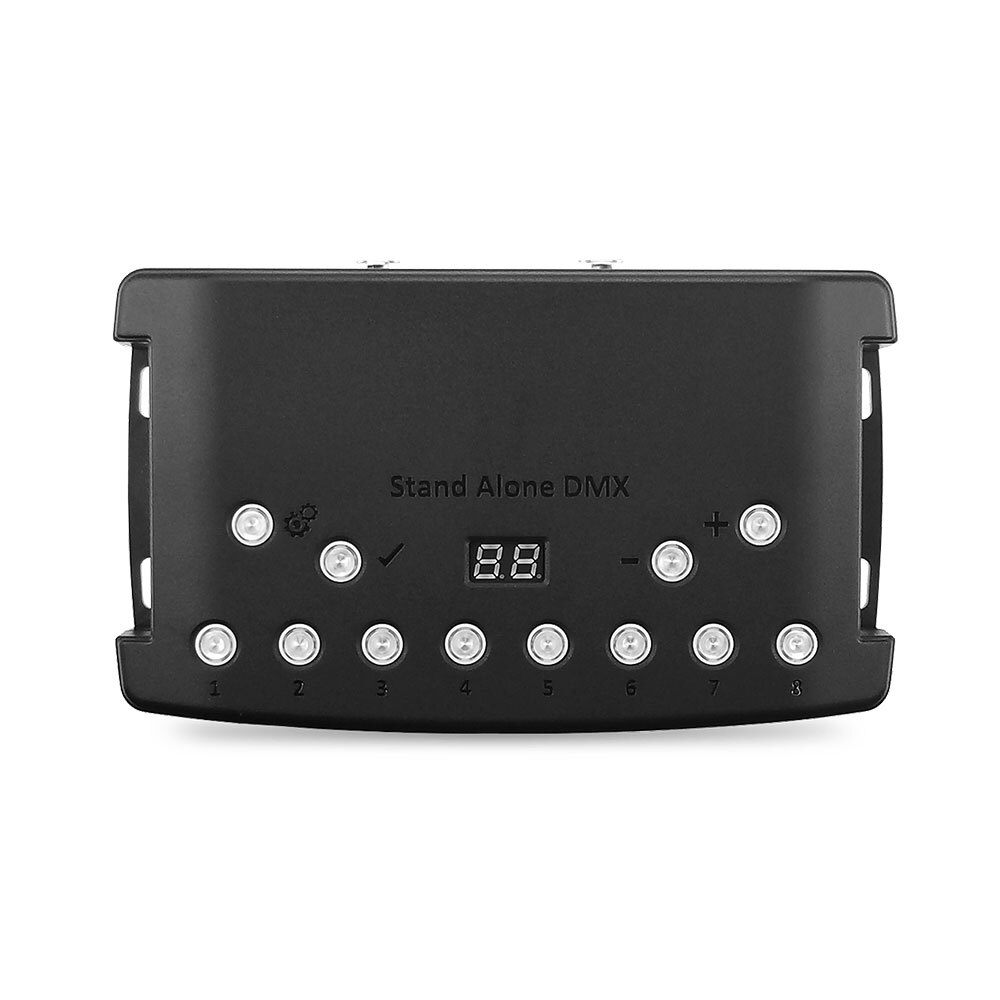

Triggers: 4 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority, 15 contacts max) Infrared receiver (with optional IR remote) 10 scene selection, scene speed, general dimmer and next scene 1 NEXT button for scene selection Wi-Light 2 APP(modem required)

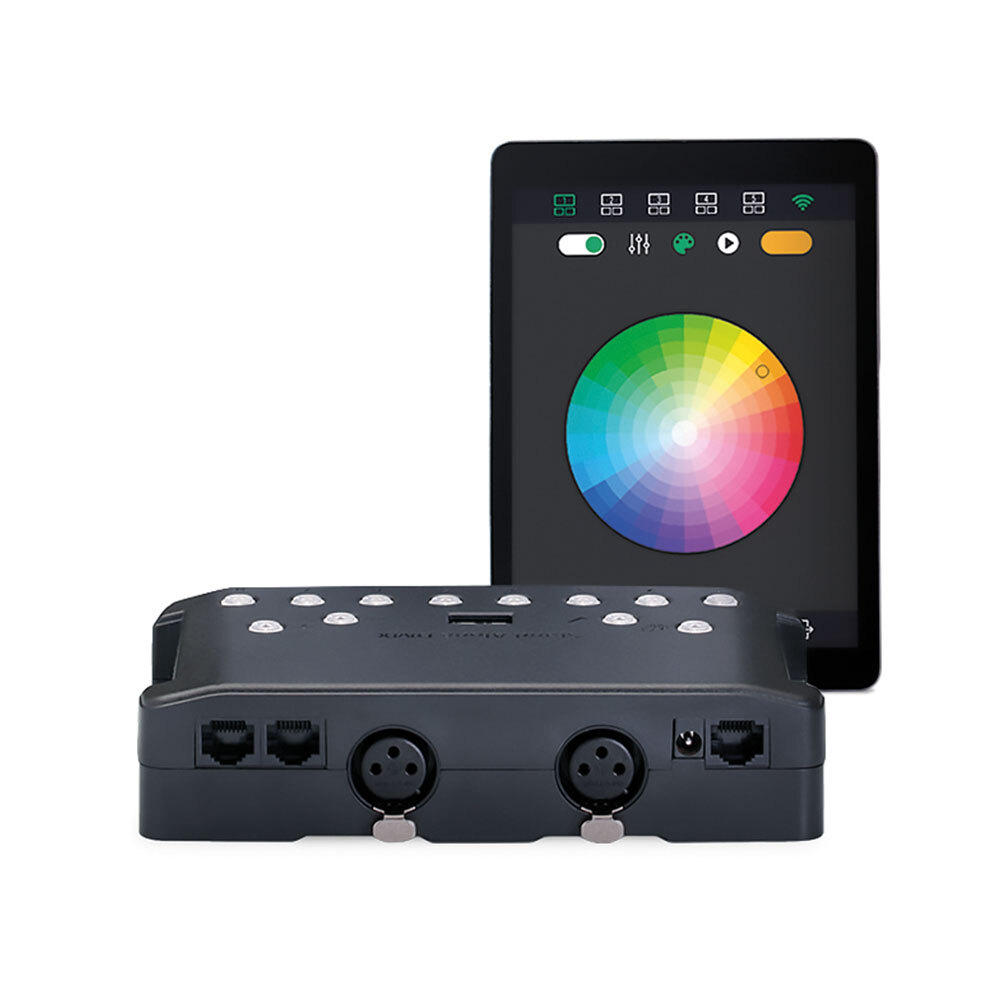

I/O Connectors: Mini USB 2.0, 3 pin XLR (XLR5 optional)
Power: 5V DC USB Power
Dimensions: 48 x 70 x 89mm
Weight: 0.21 kg
Certifications: CE ; RoHS

specifications

SKU CQSA-E1024
Brand Chromateq
Shipping Weight 0.3000kg
Shipping Width 0.140m
Shipping Height 0.060m
Shipping Length 0.210m
Shipping Cubic 0.000120000m3
