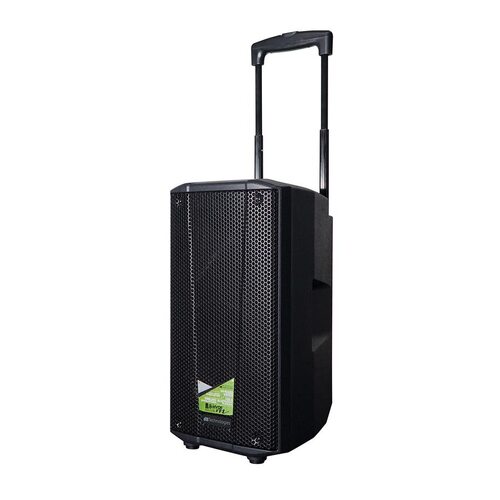

Bi-Amp Battery-Powered Speaker with Handheld Transmitter (542-566MHz)

B-Hype on the move! With this new M model, dBTechnologies adds a mobile, complete PA to its all-user 2-way speakers family.

B-Hype M mixes the professional acoustic performance of the BH family with the most advanced versatileness of a complete portable PA equipped with a wireless microphone system, audio media player with Bluetooth connection, SD card and USB port, a long lasting battery, wheels and a retractable top handle: all you need for a professional performance on the move.

A perfect solution for travelling shows, busker's show, nouveau cirque, spoken words acts, and all kind of performance set in outdoor or unconventional venues.

The system is equipped with: one 1" compression driver exit and one 10" woofer. The input section allows the user to connect: up to three wired inputs, one wireless microphone, and different media inputs (including Bluetooth? ). Users can also connect the audio output to a second speaker. The control section is equipped with an equaliser and a CH1/RF priority function that attenuates the level of every channel but Channel 1 and the Radio microphones for a smooth automatic ducking effect.

The sturdy and compact cabinet (only 12.5 kgs - 27 lbs) is equipped with wheels and 3 handles (1 per side and 1 retractable on the top). A 36 mm pole mounting also allow use on a speaker stand.

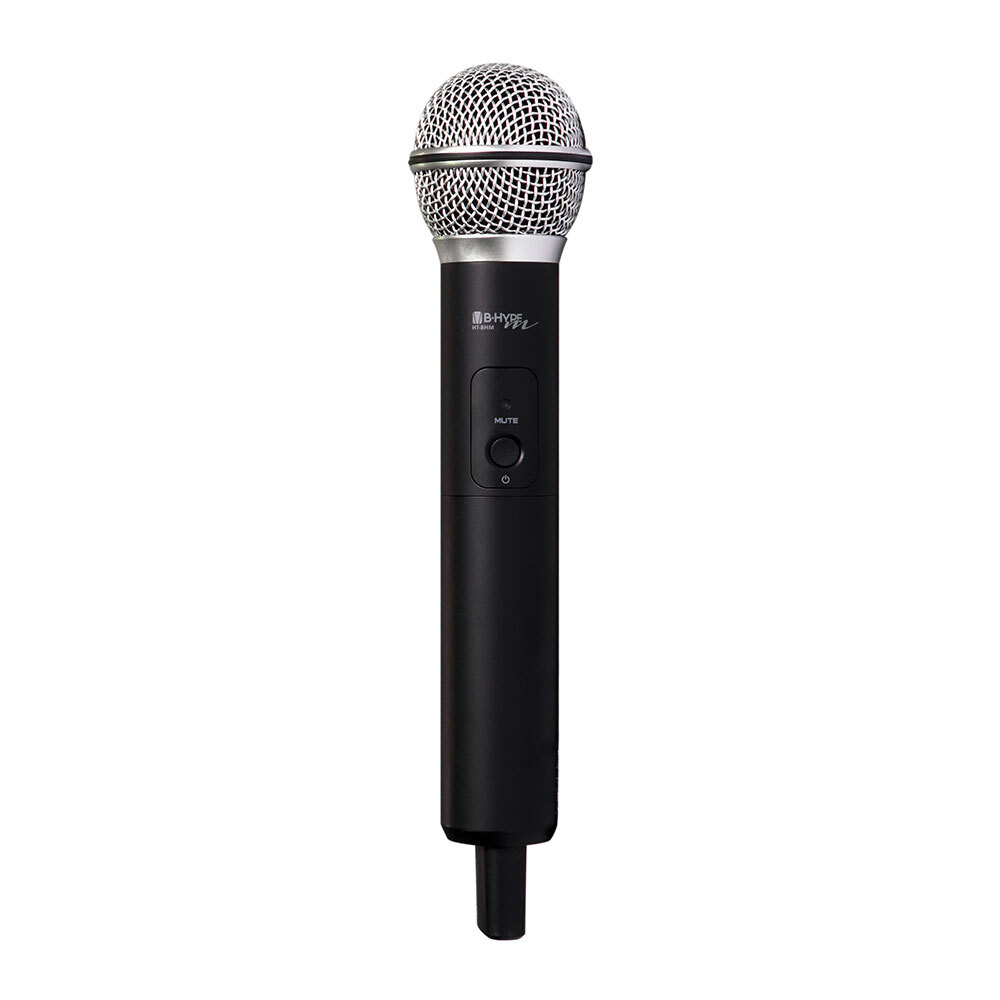

BHype M is available in two versions: with handheld transmitter (B-HYPE M HT bundle) or bodypack transmitter (B-HYPE M BT bundle). Both are provided with wireless antennas.

Technical Data

• Speaker Type: Bi-amp battery-powered speaker

Acoustical Data

• Frequency Response [-10dB]: 62 - 20000 Hz
• Max SPL: 123 dB
• HF compression driver: 1"
• LF: 10"
• Dispersion: 90 ø H x 45ø H
• Crossover frequency: 2400 Hz

Amplifier

• Amp: Class D SMPS
• Peak Power: 190 Watt
• Special Features: Digital battery charger, Battery management and power saving functions

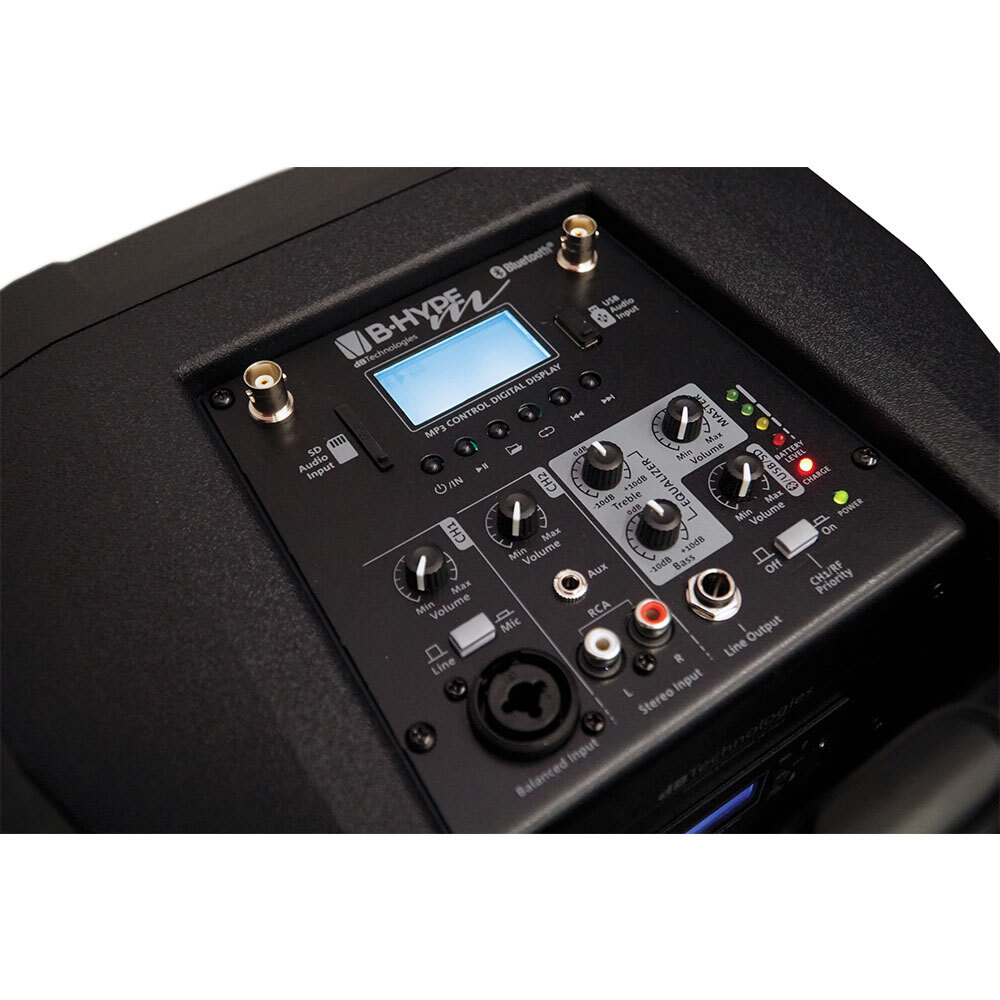

• User Interface: 1x OLED Display with 6 keys for media management
• Wireless Input: 1x UHF diversity receiver, IR sync function
• Mic/Line Input: XLR / 1/4" Jack Combo (Mic - Line)
• Stereo Input: 2x RCA In + 1x mini-Jack
• USB Media Reader: USB Type "A" port for media files (MP3-WMA-AAC) + SD card
• Bluetooth? Input: 1x Bluetooth receiver
• Mix Out: 1/4" Jack (unbalanced)
• Volume Controls: 4x rotative knobs (Mic/Line, Stereo In, Master, Media)
• Controls: 1x Treble and 1x Bass Equalisers
• Indicators: 2x LEDs (LIMITER, SIGNAL)
• Mains:VDE Socket1x 3-position switch (On, Off, Recharge)

Input

• Mains connection: VDE
• Signal IN: 1x Combo (XLR/TRS) balanced; 1x stereo RCS; 1x mini-Jack
• Signal OUT: 1x TRS link
• Controls: Master Volume, EQ (treble, bass), CH1/RF priority
• Media

Mechanics

• Housing: Polypropylene PP
• Handles: 1x side, 1 on top (retractable)
• Grille: Full grille
• Width: 300 mm (11.81 in)
• Height: 568 mm (22.36 in)
• Depth: 301 mm (11.86 in)
• Weight (without transmitter): 12.5 kg (27 lbs.)
