DB Technologies B-HYPE Portable PA System Headset With Bodypack Microphone

BúHype M mixes the professional acoustic performance of the BúH family with the most advanced versatileness of a complete portable PA equipped with a wireless microphone system, audio media player with Bluetooth connection, SD card and USB port, a long lasting battery, wheels and a retractable top handle: all you need for a professional performance on the move. A perfect solution for travelling shows, busker's show, nouveau cirque, spoken words acts, and all kind of performance set in outdoor or unconventional venues.

The system is equipped with: one 1" compression driver exit and one 10" woofer. The input section allows the user to connect: up to three wired inputs, one wireless microphone, and different media inputs (including Bluetooth? ). Users can also connect the audio output to a second speaker. The control section is equipped with an equaliser and a CH1/RF priority function that attenuates the level of every channel but Channel 1 and the Radio microphones for a smooth automatic ducking effect.

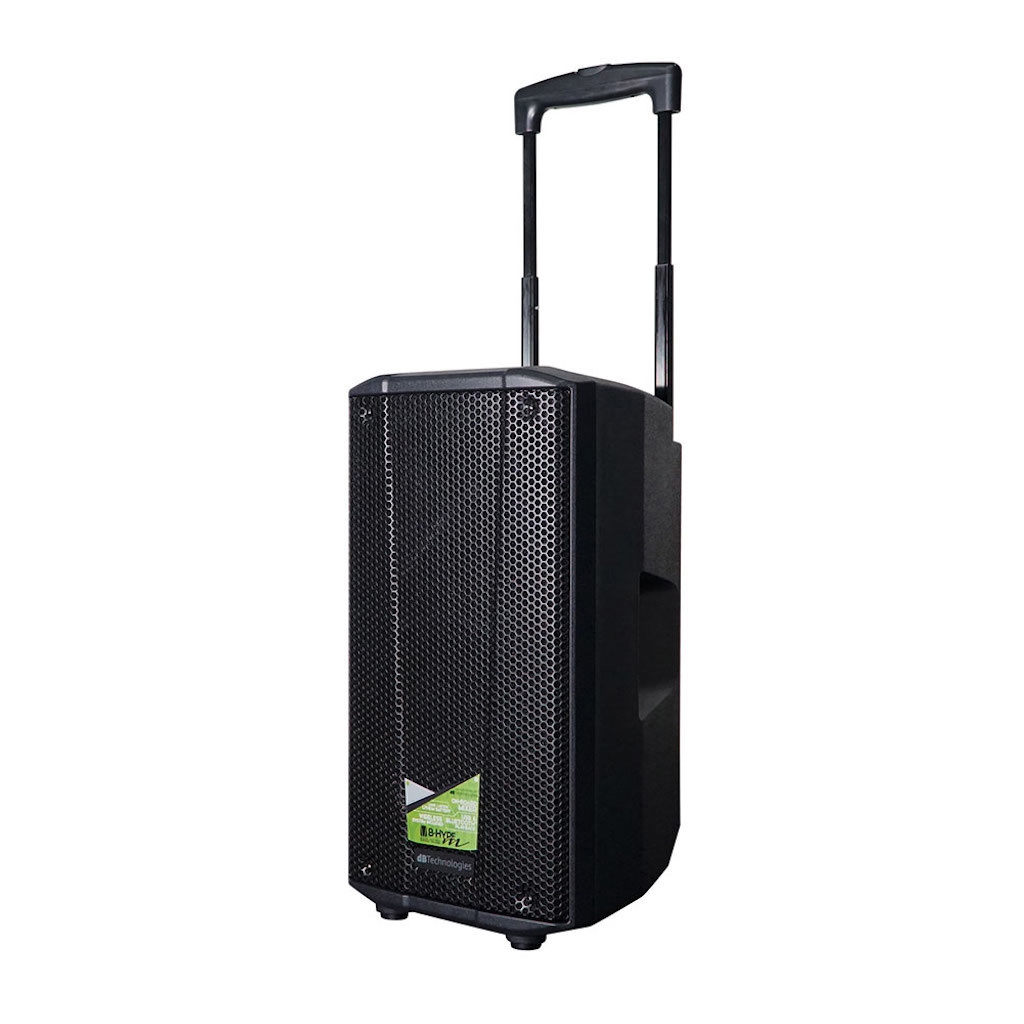

The sturdy and compact cabinet (only 12.5 kgs - 27 lbs) is equipped with wheels and 3 handles (1 per side and 1 retractable on the top). A 36 mm pole mounting also allow use on a speaker stand.

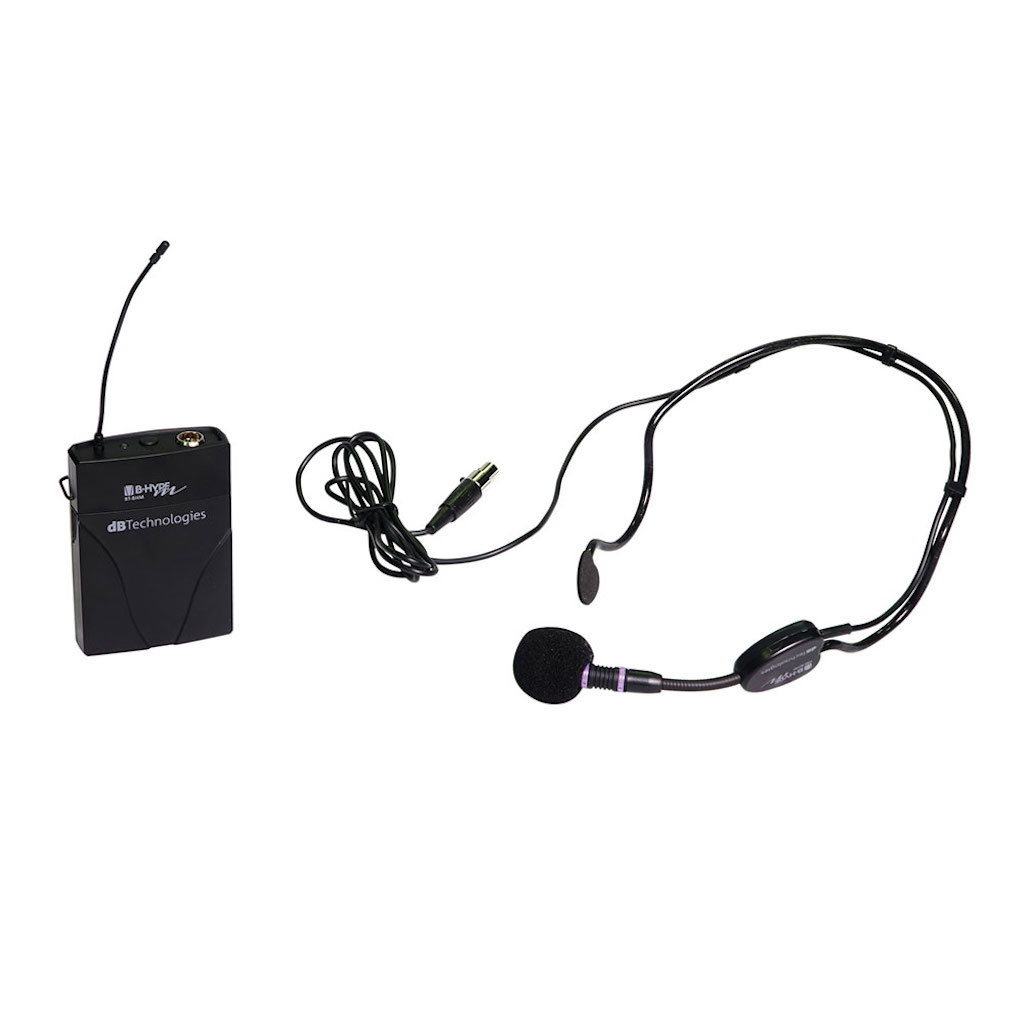

BúHype M is available in two versions: with handheld transmitter (B-HYPE M HT bundle) or bodypack transmitter (B-HYPE M BT bundle). Both are provided with wireless antennas.

Technical Data

• Speaker Type:Bi-amp battery-powered speaker

Acoustical Data

• Frequency Response [-10dB]:62 - 20000 Hz
• Max SPL:123 dB
• HF compression driver:1"
• LF:10"
• Dispersion:90 ø H x 45ø H
• Crossover frequency:2400 Hz

Amplifier

• Amp:Class D SMPS
• Peak Power:190 Watt
• Special Features:Digital battery charger,Battery management andpower saving functions
• User Interface:1x OLED Display with 6 keysfor media management
• Wireless Input:1x UHF diversity receiver,IR sync function
• Mic/Line Input:XLR / 1/4" Jack Combo (Mic - Line)
• Stereo Input:2x RCA In + 1x mini-Jack
• USB Media Reader:USB Type "A" port for media files(MP3-WMA-AAC) + SD card
• Bluetooth? Input:1x Bluetooth receiver
• Mix Out:1/4" Jack (unbalanced)
• Volume Controls:4x rotative knobs(Mic/Line, Stereo In, Master, Media)
• Controls:1x Treble and 1x Bass Equalisers
• Indicators:2x LEDs (LIMITER, SIGNAL)
• Mains:VDE Socket1x 3-position switch(On, Off, Recharge)

Input

• Mains connection:VDE
• Signal IN:1x Combo (XLR/TRS) balanced;1x stereo RCS;1x mini-Jack
• Signal OUT:1x TRS link

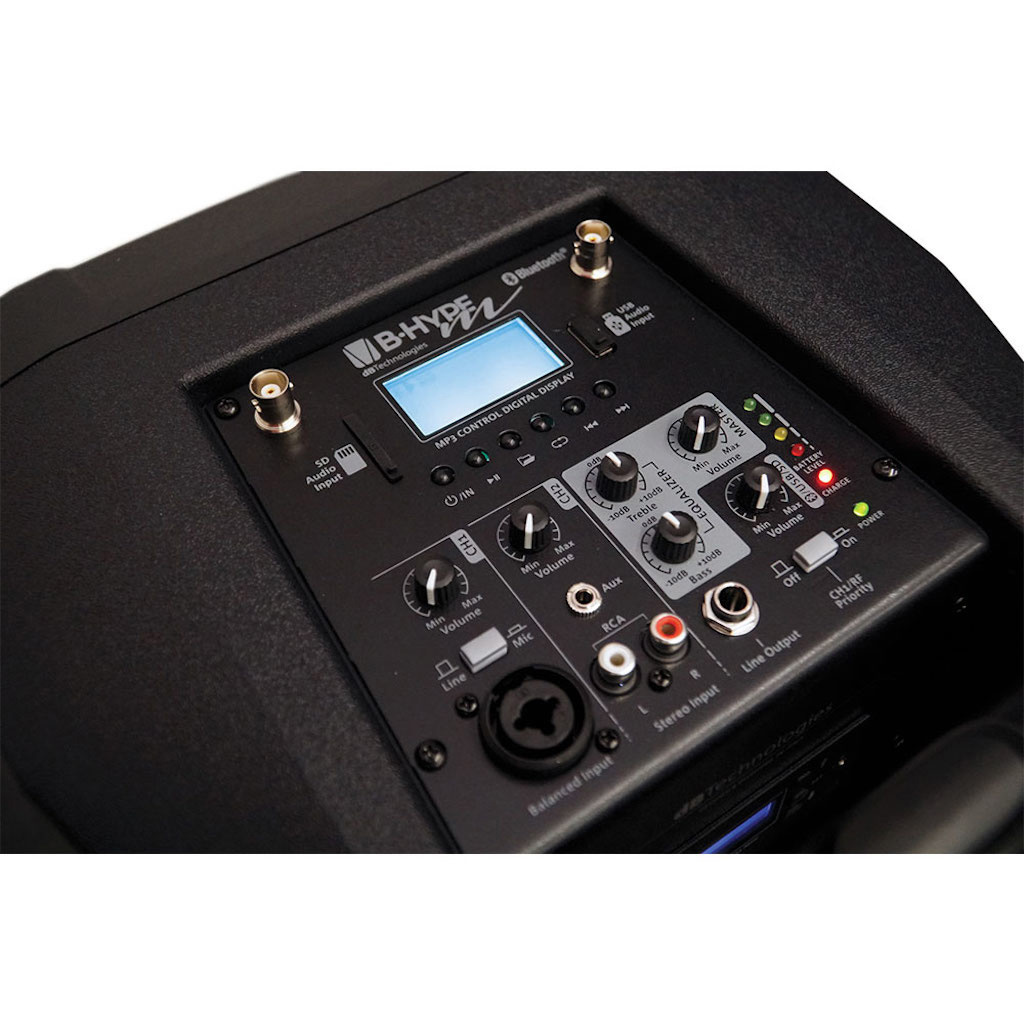

• Controls:Master Volume, EQ (treble, bass), CH1/RF priority
• Media

Mechanics

• Housing:Polypropylene PP
• Handles:1x side, 1 on top (retractable)
• Grille:Full grille
• Width:300 mm (11.81 in)
• Height:568 mm (22.36 in)
• Depth:301 mm (11.86 in)
• Weight (without transmitter):12.5 kg (27 lbs.)

Note:Data is not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
