description

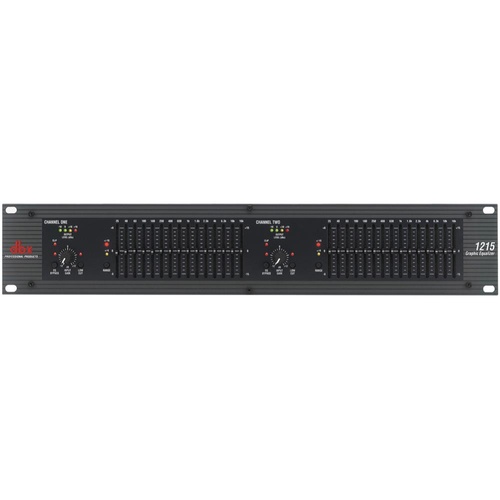

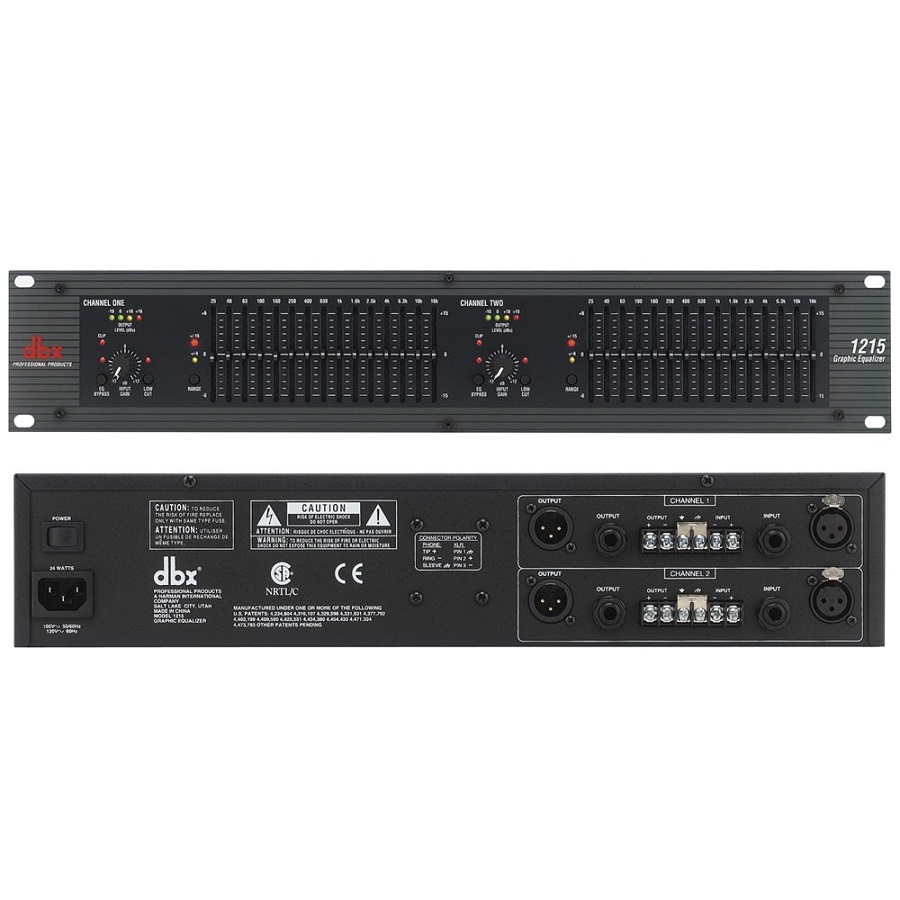

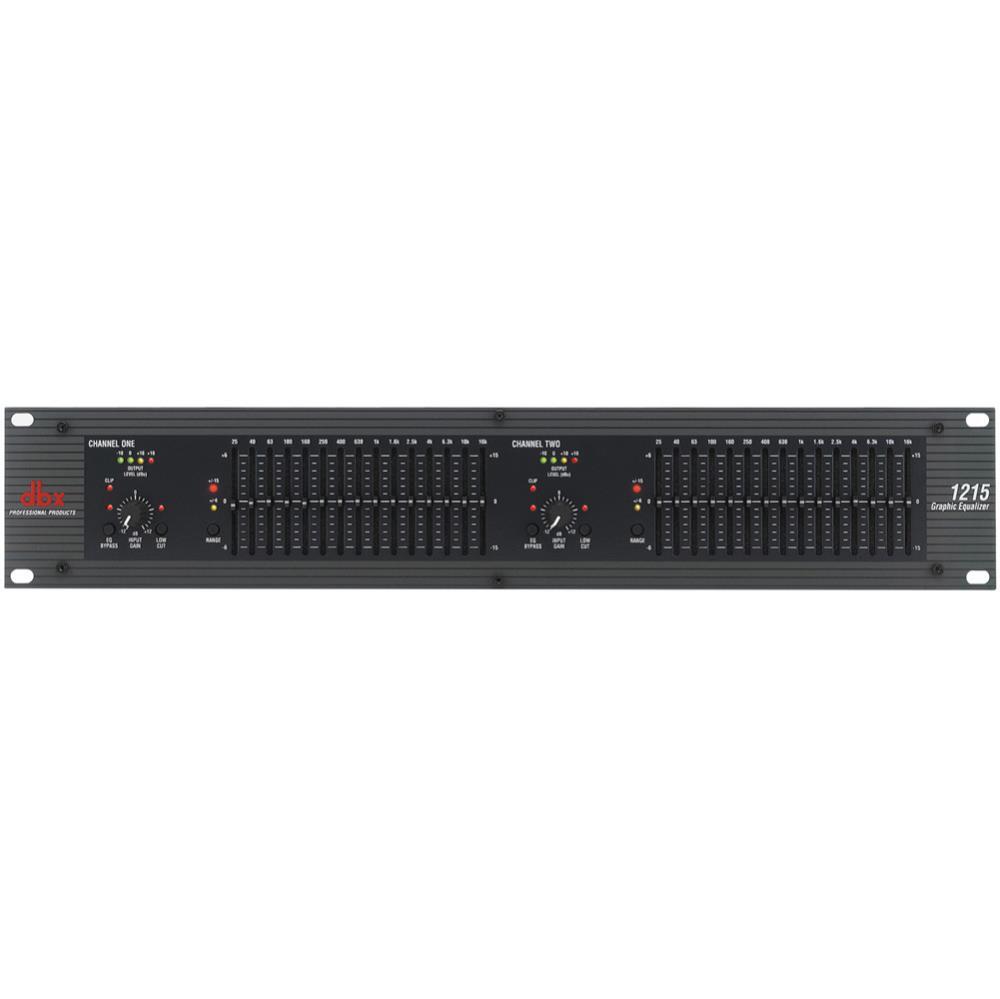

The dbx 12 Series were intended to address the issues of the most demanding sound support situations, while offering the effortlessness of clear controls. The 1215 gives standard components like dual channels, 15 2/3 octave groups, ISO frequency focuses, +/ - 12 dB input pick up reach, and switchable 40Hz/18 dB for each octave low profile filters, additionally incorporates other mindful features. These incorporate 45 mm faders; selectable +/ - 6dB or +/ - 15dB boost/cut reach for exact increase modification; XLR, barrier strip, and 1/4'' TRS connectors for establishment ease; adjusted inputs and outputs for silent operation; and chassis/signal ground lift abilities for brisk hum isolation. The visionary outline of the dbx 12 Series makes your occupation simpler.

The dbx 12 Series Equalizers were accuratly designed to give years of upkeep free operation in any application. The attractively disengaged transformer, electronically even/uneven inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire transfer sidestep with 2 second power up delay were steps our specialists took to guarantee similarity for all establishments. Just the best parts were used, yielding a 10Hz to 50kHz frequency reaction, greater than 90dB SNR (ref +4dBu), under 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of not exactly - 80dB from 20Hz to 20kHz. This is contained in a 2U steel/aluminum frame.

Product Features

• 18dB/octave 40Hz Bessel low-cut filter
• Chassis/signal ground lift capability
• Internal power supply transformer
• Power-off hardwire relay bypass with 2-second power-up delaySwitchable boost/cut ranges of ±6 or ±15 dB
• Electronically balanced/unbalanced inputs
• Servo balanced/unbalanced inputs
• RF filtered inputs and outputs

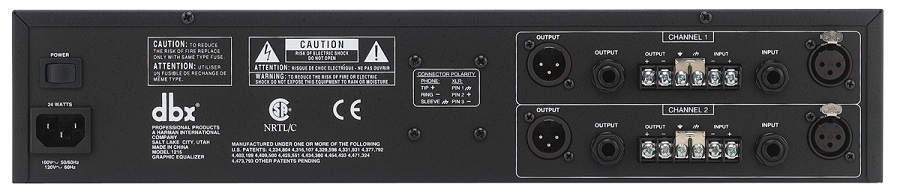

• XLR, Barrier Strip, and 1/4" TRS connectors
• -12dB/+12dB input gain range
