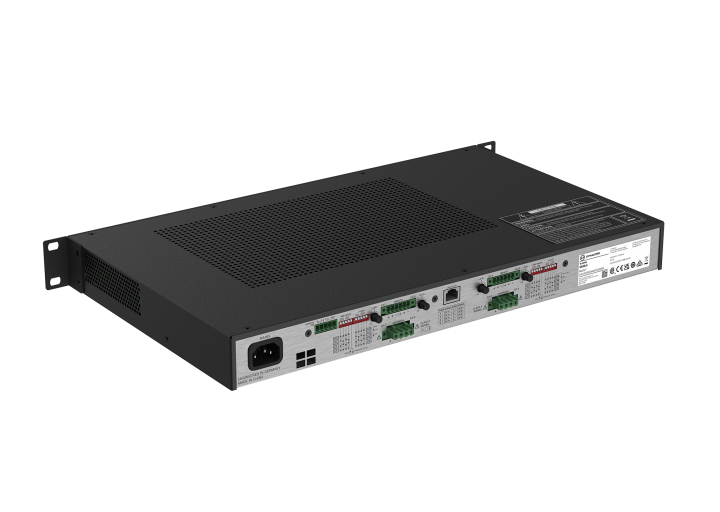

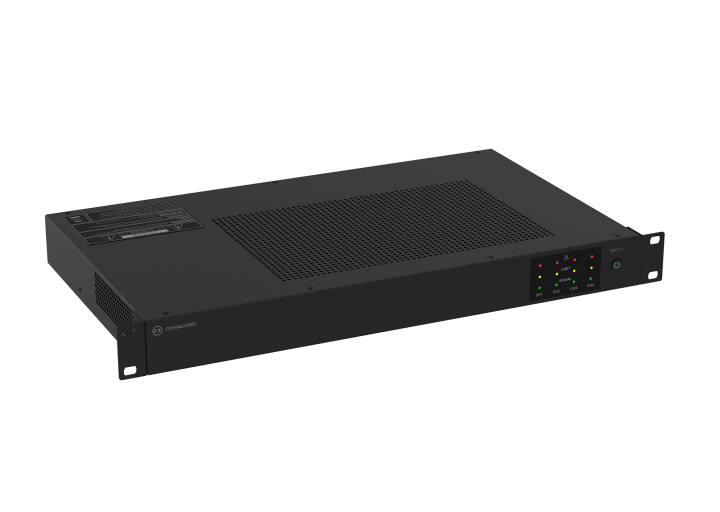

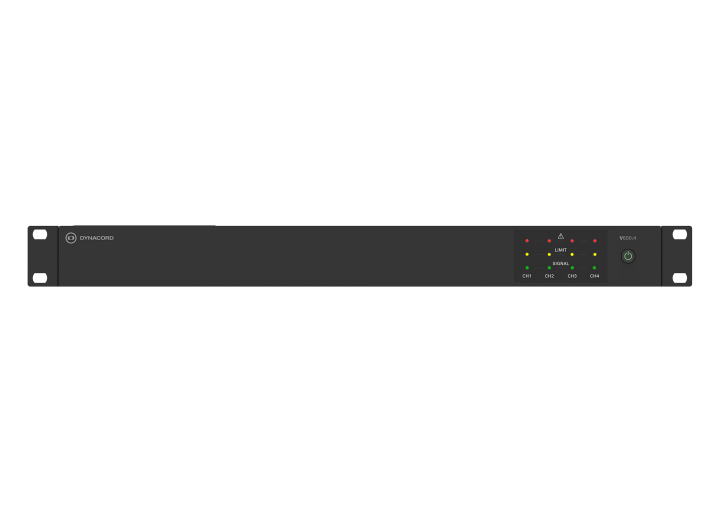

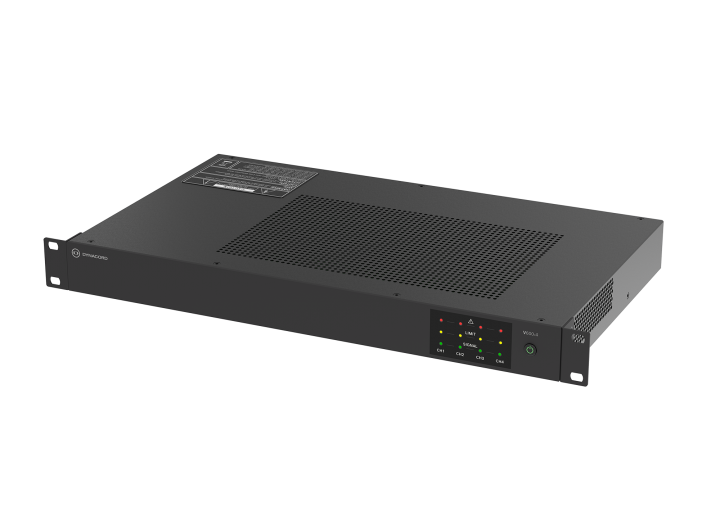

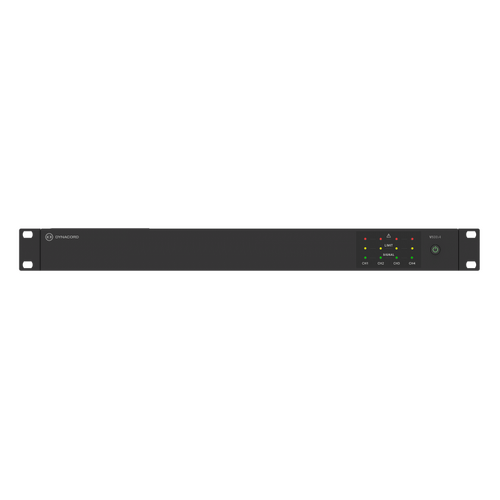

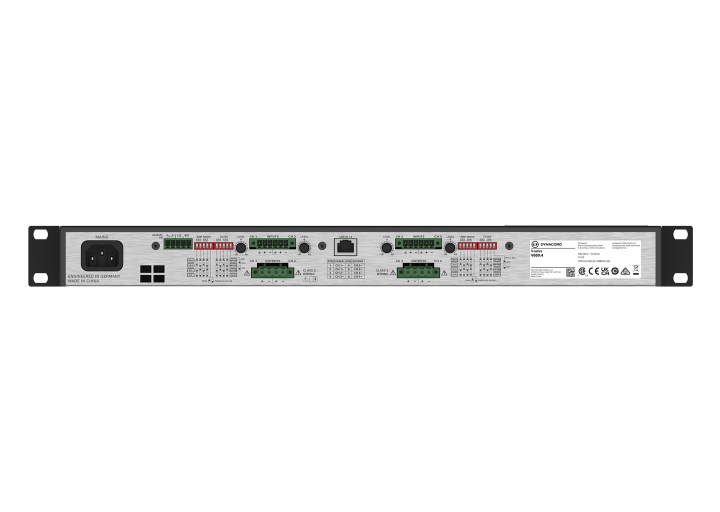

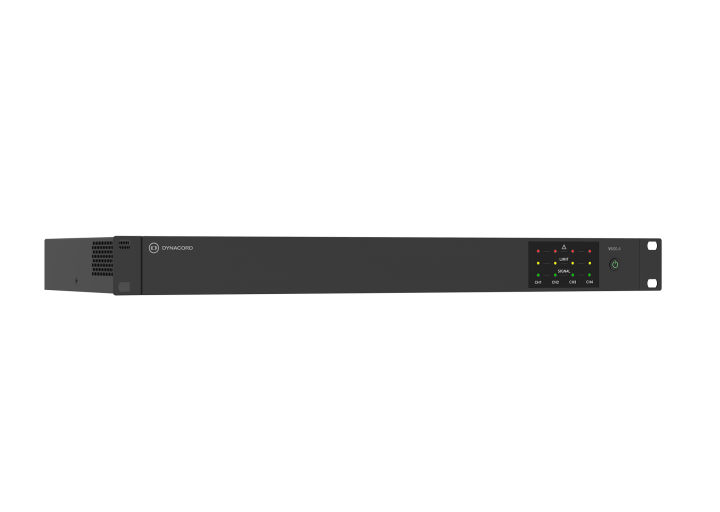

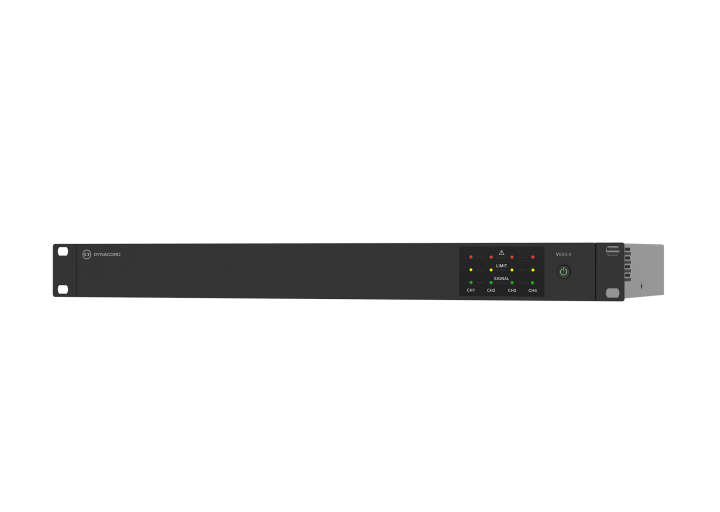

The V600:4 is perfect for small to mid-sized installation scenarios such as education, hospitality, retail, houses of worship and more. The four-channel power amplifier with a total power of 600 Watts is recommended as a go-to power amplifier for consultants, installers and specifiers who are looking for a sturdy, extremely versatile amplifier that is quick to install and runs trouble-free – even under demanding power conditions.

With a compact 1RU form factor requiring minimal rack space, the V600:4 is fully equipped with best-in-class features and innovative new Dynacord technologies to offer building owners an optimal combination of real professional performance and resource-efficient power consumption, all at a very attractive price point. The newly developed Dynacord powerTANK technology adds even more installation flexibility, working like a power reservoir for the amplifier. With direct access to the total power of 600 Watts, the V600:4 can deliver asymmetric power across all channels as needed. There is no waste of energy, which allows great flexibility – especially when driving multiple audio zones with different loads. For example, a single V600:4 can simultaneously serve as system drive for the compact loudspeakers in a small zone (such as a kitchen area) as well as for larger loudspeakers (such as in an auditorium). Contributing to the ease of installation, this feature does not require any special configuration skills – powerTANK engages automatically. In conjunction with a DSP matrix – such as the Dynacord MXE5 Matrix Mix Engine – the V600:4 can also be specified for larger distributed installations working as a distribution amplifier for smaller zones.

Features

powerTANK
powerTANK is a reservoir of available amplification power that is deployed flexibly across the 4 channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.

Variable Load Drive
Variable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel with any impedance. dualCOOL The dualCOOL thermal design means that the amplifier typically operates as a convection cooled amplifier, but in extreme thermal conditions the amplifier is also equipped with an intelligent multi‑speed fan to ensure maximum performance and reliability in any application.

ecoRAIL
ecoRAIL’s power consumption is similar to a regular standby level, yet ecoRAIL still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can be engaged to further reduce power consumption to less than a watt when there is no signal present for extended periods.

PFC power supply
Equipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, means that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.

SPECIFICATIONS
