description

• The SUB-Q45A is an active bass speaker with an 18" woofer and integrated power amplifier, as well as an active, adjustable low-pass filter. The subwoofer is suitable for supporting the bass in a wide range of PA and DJ applications, eg when using active loudspeakers or sound systems. The woofer with a membrane in a hard surround produces dry bass with a high sound pressure level.
• With the adjustable section frequency of the integrated low-pass crossover, the subwoofer can be optimally adapted to the loudspeaker with which the subwoofer is used. The phase can be reversed 180¬?.
• The sub can be connected directly to the subwoofer output of a mixer or another music source via cinch sockets or via XLR sockets with a mono or stereo signal.
• The bass box is tailored to the requirements of mobile DJs, but musicians also appreciate the bass system. The compact SUB-Q45A can easily be transported in a car. The robust wooden housing with felt cover, protective corners and metal grille is scratch-resistant.
• The sub is equipped with a stand flange at the top so that a top can be placed on top of the box.

Features:

• Bass reflex system with 2 bass tubes
• Integrated, powerful power amplifier
• Active crossover with adjustable cut-off frequency: 40 to 250Hz
• Phase 180¬? reversible
• Adjustable input level
• 18‚Äù/ 45cm bass speaker with the membrane in fabric surround and large ferrite magnet
• A sturdy metal grille protects the woofer
• Lateral recessed carrying handles
• Scratch-resistant, robust wooden housing with black felt covering
• Protective steel corners on all 8 corners
• Stand insert for the top on the top of the sub
• 4 anti-resonance feet are included¬† ¬†

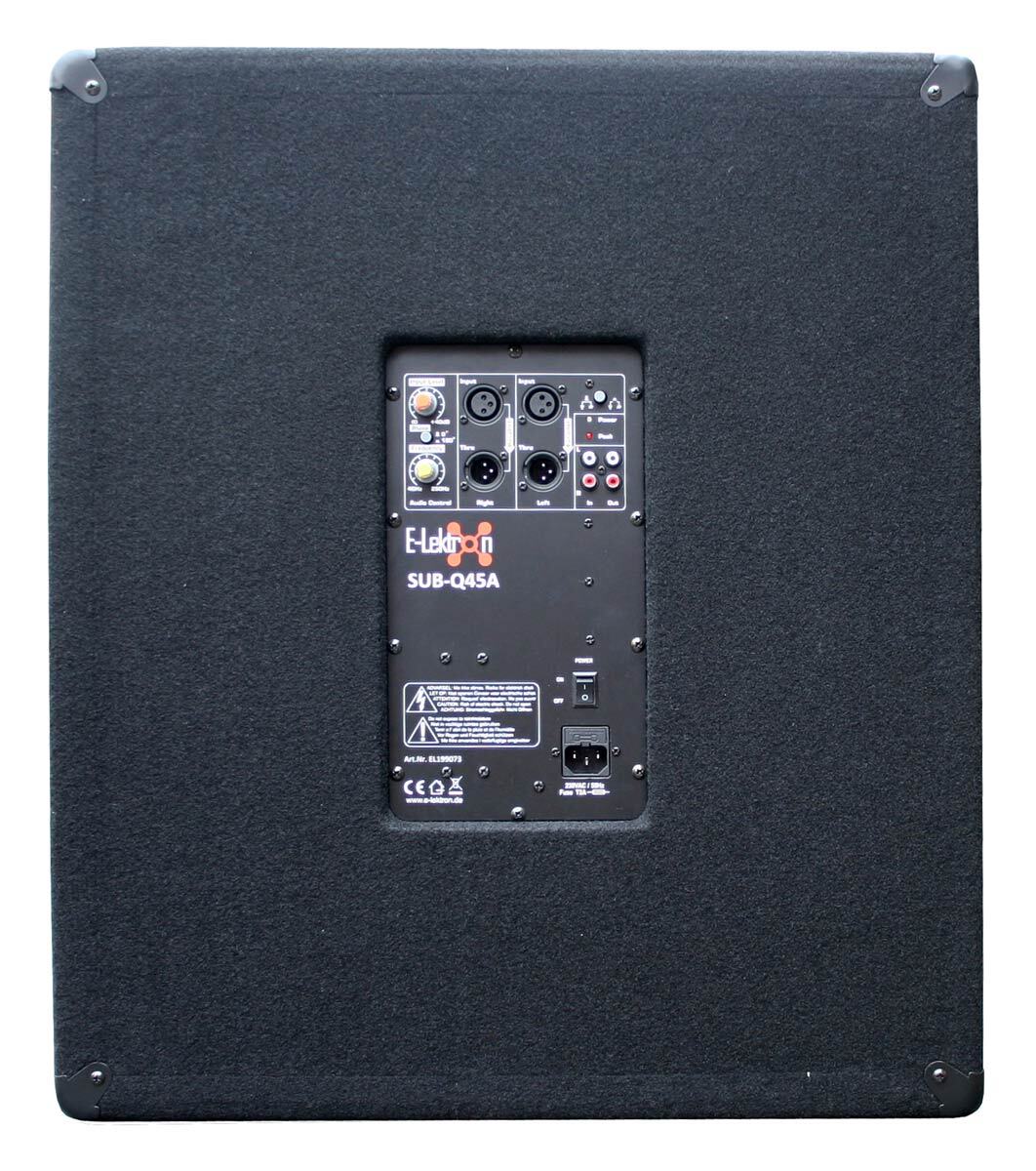

• Connections: stereo/mono cinch sockets (unbalanced) and XLR sockets (balanced/unbalanced)
• Ground/Float switch to avoid a ground loop

Teechnical Specifications:

• Top performance: up to 1000 watts
• Continuous power: 500 watts max.
• Distortion factor: 0.1% or less (THD)
• Signal-to-noise ratio: > 80dB
• Woofer: 18" / 45cm diameter
• Frequency range: 35Hz - 250Hz
• Operation on: 220-240Vac, 50Hz
• Max sound pressure: 119dB
• Tripod insert : ?ò 35mm
• Dimensions: 55(W) x 44(D) x 65(H) cm
• Weight: about 23.5kg

Package:

• 1 X Active Subwoofer
• 1 X Australia Plug Power Lead
• 4 X feet inc fastening screws
• 1 X Audio Cable 5 meter RCA Stereo
• 1 X User Manual
