description

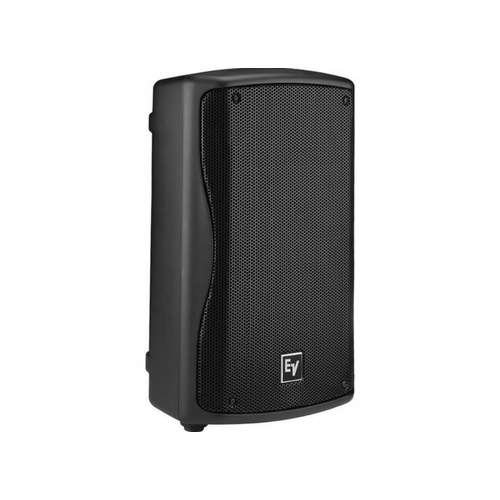

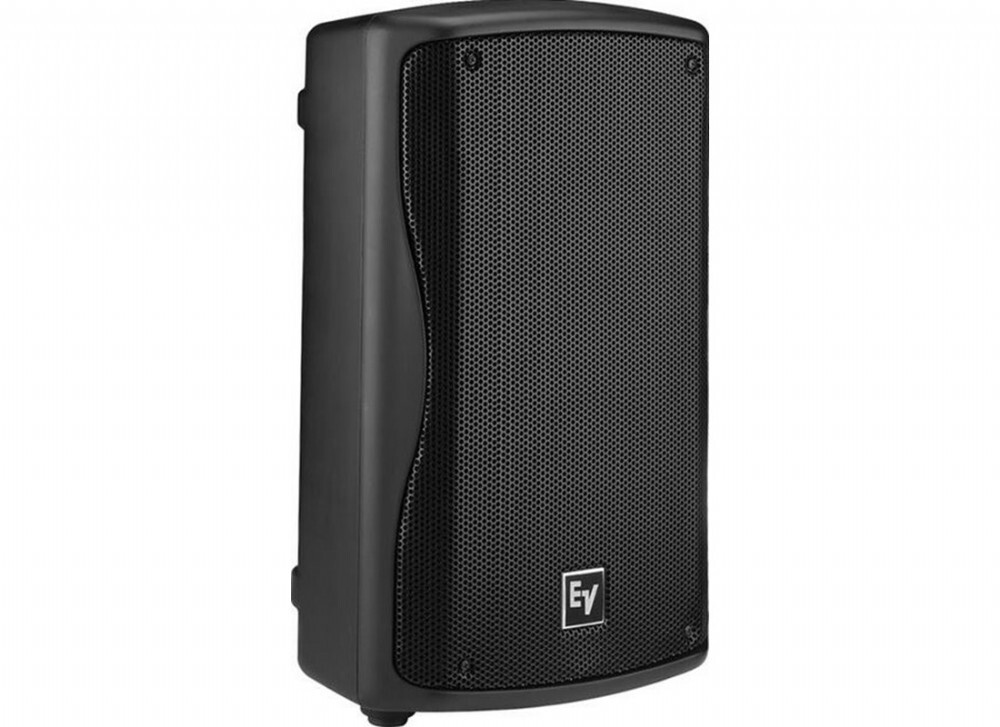

Electrovoice ZXA1-90B - EV 800W, ZX1A 8-inch 2-Way Powered Speaker, 90° x 50° with Rotatable Waveguide, Black

This is a condensed, amplified loudspeaker system, which is made for portable sound applications that require the most portability200W, 8-inch 2-Way Powered Speaker, 90° x 50° with Rotatable Waveguide, Black

The ELECTROVOICE ZXA1 packs A heap of SPL for its size and performance in a lightweight, portable package.  Its a perfect scenario for portability for duos, presenters and for foldback for smaller venues.

Combining an 800-watt amplifier in a two-way, 8-inch and horn package, the ZXA1 can handle whatever you throw at it, and still sound great.  Pairing the ZXA1 with its brother, EV 12 SUB gives you a versatile, portable and reliable full range PA system.

The Electro-Voice ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series amplifiers with audio quality and reliability proven at the very highest levels.

  • Integrated 800 watt power amplifier.
  • Bi-amplified design with transducer protection.
  • EV8L 8” high-output LF transducer.
  • DH2005 1” exit true compression driver.
  • 90° x 50° coverage pattern.
  • Rotatable horn design.
  • 123 dB maximum SPL.
  • Selectable high-pass filter for use with sub-woofers.
  • Line and microphone inputs.
  • Integral monitor angle on enclosure.
  • Built-in pole mount. Lightweight (< 9 kgs) with integral handle for easy carrying.
  • LOUDSPEAKER POWERED PORTABLE 2 WAY 8'' LF;800W AMP 90x50 DEG ROTABLE
  • SERIAL# :095706917454970034     095706923720420053

specifications

  • Freq. Response (-3 dB): 60Hz-20kHz
  • Freq. Range1 (-10 dB): 48Hz-20kHz
  • Max. Calculated SPL: 123dB
  • Horizontal Coverage: 90 or 50
  • Vertical Coverage: 50 or 90
  • Amplifier Power Output: 800W
  • LF Transducer: EV8L, 203mm (8") Driver
  • HF Transducer: DH2005, 25mm (1") Exit
  • Compression Driver
  • Crossover Frequency: 1.8kHz
  • High Pass Frequency: 100Hz, User Selectable
  • Power Requirement (120V): 95V-132V, 50-60Hz, 0.6A
  • Power Requirement (230V): 190V-264V, 50-60Hz, 0.4A
  • Line input: XLR and TRS Combo
  • Mic input: XLR with independent Gain
  • Line Output: XLR (Mic and Line Sum)
  • Enclosure Material: High Impact Polystyrene
  • Grille: Polyester Powder Coated, 18GA
  • Galvanized Steel
  • Dimensions (HxWxD): 457mm x 282mm x 264mm, (17.98" x 11.12" x 10.38")
  • Net Weight: 19 lb. (8.6kg)
SKU EVL-ZXA1-90B
Barcode # 800549591225
Shipping Weight 10.5000kg
Shipping Width 0.300m
Shipping Height 0.470m
Shipping Length 0.320m
