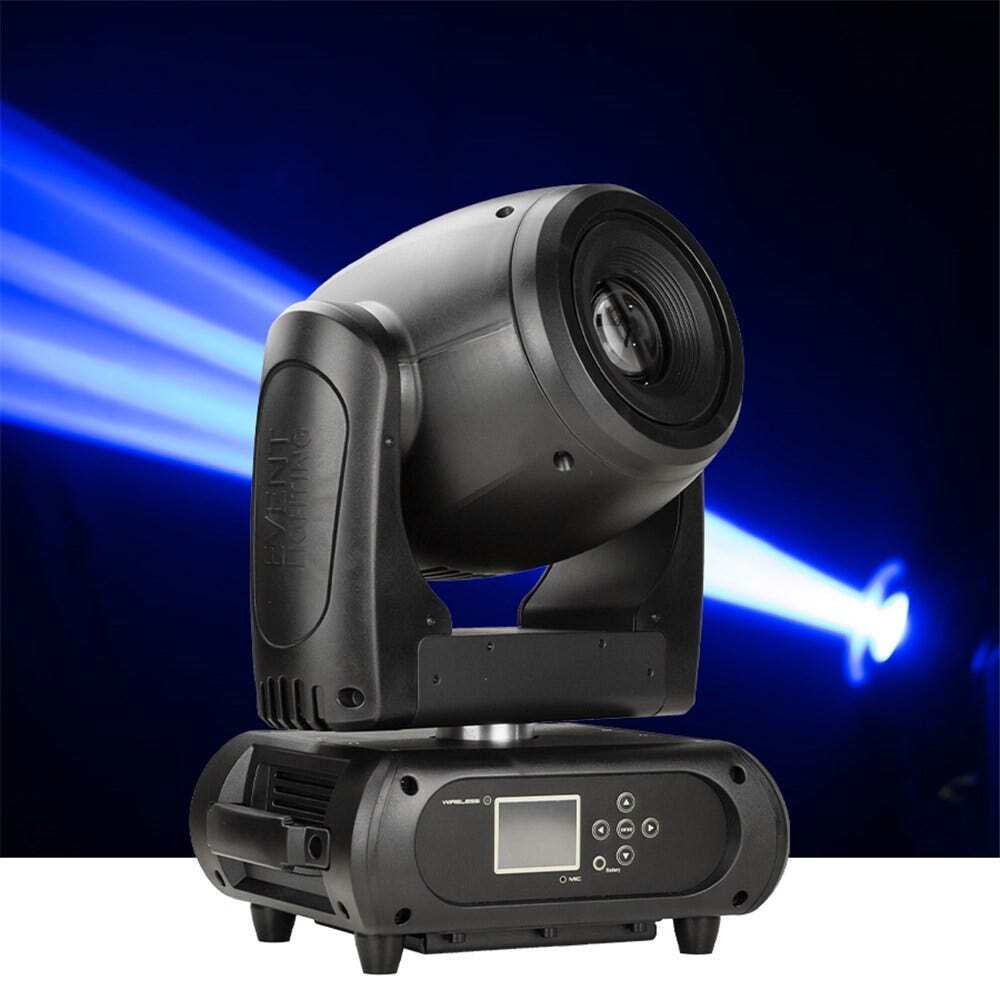

Event Lighting M1S190W - 190W LED Spot Moving Head

The M1S190W is a feature packed mover with two gobo wheels, an iris, frost, 3/8 facet prism wheels and 3- and 5-pin DMX on board, in a compact 14 kg fixture.

This advanced moving head spot proves the value in selecting a high quality LED light source that is superior in both brightness and performance to others rated at the same power. With its incredible power and lux this 150Watt moving spot has output comparable to a 575Watt discharge lamp. Without the ongoing cost of replacing expensive lamps. Multiple control options are available in this fixture with two gobo wheels and a colour wheel on hand offering a host of dynamic, eye popping effects that will be sure to leave audiences delighted, with its fast movement and wide pan and tilt range. Professional features include an indexable, replaceable and rotating gobo wheel, a fixed gobo wheel, multiple prisms, strobe, frost and electronically controlled focus. With a motorized ?fast speed? iris for beam shaping and incredible aerial effects. In addition to DMX, the M1S150W offers RDM (Remote Device Management) and can be operated manually in Stand-Alone, Sound Active and Master-Slave Modes. Other standard features include large flippable LCD battery powered menu, an automatic temperature controlled fan, and upgradable DMX with 8 bit dimming control and optional wireless DMX. It is equipped with 14 gobos (7 rotating, 7 static) and a 14 degree beam angle with an incredible 21,385lux at @2.5M. The unit is controllable in 4DMX modes and includes 3 pin (upgradeable to 5) DMX In/Out and genuine Neutrik PowerCON connectors. Designed to provide maximum innovation and creativity for lighting designers, with high output, accurate precision and crisp clear projection. Suitable for installation into large entertainment spaces, productions and touring.

Photometrics

• Light Source: 190 W White LED Module, 14,910 K
• Beam Angle: 12°
• Output: 15,400 lumen, 35,420 lux on @ 2.5 m
• PWM: 1,200 Hz
• LED Lifespan: 60,000 hours

Colour 8 Colours + Open

Gobos

• Fixed: 1 x 7 + Open Fixed Gobo Wheel
• Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø22mm).

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Focus: Motorised
• Prism: 3-facet, 8 facet
• Frost: Yes
• Iris: Yes

Movement 8 / 16 bit Auto Reposition

• Pan: 630° (3.2 sec) or 540° (2.9 sec)
• Tilt: 233° (1.9 sec)

Power

• Input Voltage: 100~240V AC, 50/60 Hz, 270 W
• Connection: Neutrik® powerCON in/out

Control

• Operational Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM (optional: W-DMX™)
• DMX Channels: 23 / 24 / 14 / 16
• Interface: 3-Pin XLR, 5-Pin XLR
• Display: 2.4″ colour LCD control panel with battery power.
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel, matte black
• Cooling: Multi-sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 14 kg
• Rigging: 2x omega brackets with 1/4-turn quick locks
