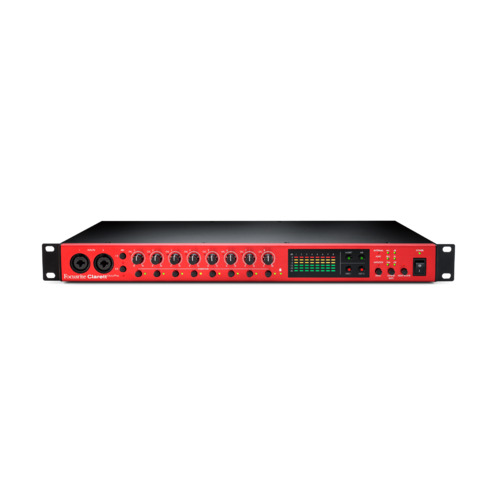

FOCUSRITE Clarett OctoPre Rackmount 8 Channel AD/DA Converter with ISA-Modelled Mic Preamps

Bavas Music city introduces to thier ragne of FOCUSRITE the Clarett OctoPre which gives you eight inputs - and eight outputs too - that you can use to extend the capabilities of your Clarett Thunderbolt audio interface - or any other interface fitted with ADAT optical inputs and outputs.

The mic pres have been designed specifically for the Clarett range, with plenty of gain, yet low noise and distortion - and great sound quality. They include a special “Air” feature that switches in an analogue model of the classic transformer-based Focusrite ISA mic pre, switching the impedance of the preamp to that of the original ISA, and enabling a ‘transformer resonance effect’, giving your microphone recordings the air and clarity of an ISA transformer-based mic pre recording. In addition, the mic pres have plenty of headroom and are ideal for recording drums and other extreme level sources.

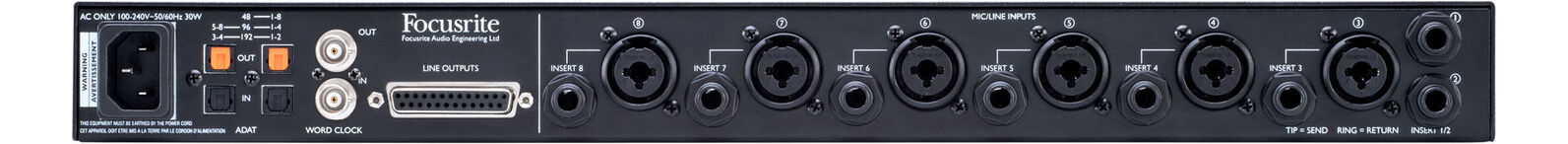

The front panel includes dual instrument inputs featuring extra headroom to handle the loudest pickup, while the rear panel includes universal XLR/jack connectors for the remaining auto-switching mic/line inputs. In addition, each input has its own switched insert point for single-cable connection of compression, equalisation and other outboard analogue processing - with hard-wired relay bypass so you can leave outboard gear or a patchbay connected ready to access at the press of a button.

In addition to providing eight mic pres with 24-bit, 192kHz A-D conversion, the Clarett OctoPre offers D-A conversion of up to eight ADAT digital channels feeding 25-pin DSUB rear-panel analogue outputs, making it useful for mixing as well as tracking. The line outputs can optionally provide line level output feeds from the mic pres - useful for feeding a live console, for example, while recording the digital outputs. Aside from the insert point, the Clarett OctoPre is balanced end to end for exceptional noise immunity.

Key Features

• 8-channel mic/line expansion with ADAT I/O
• 8 Clarett mic pres with Air transformer emulation
• 8 line outputs fed from D/A or mic preamps
• Switched inserts with true bypass on all channels
• Dual-port ADAT I/O (8 channels at up to 96kHz, 4 channels at 176.4/192kHz)
• 24-bit/192kHz AD/DA for high-resolution audio
• Mic pres and front-panel instrument inputs engineered with generous headroom
• 6-segment LED metering and channel clip indicators
• 48-volt phantom power available across all inputs (switchable: 1-4, 5-8)
• Word clock I/O; JetPLL jitter elimination
