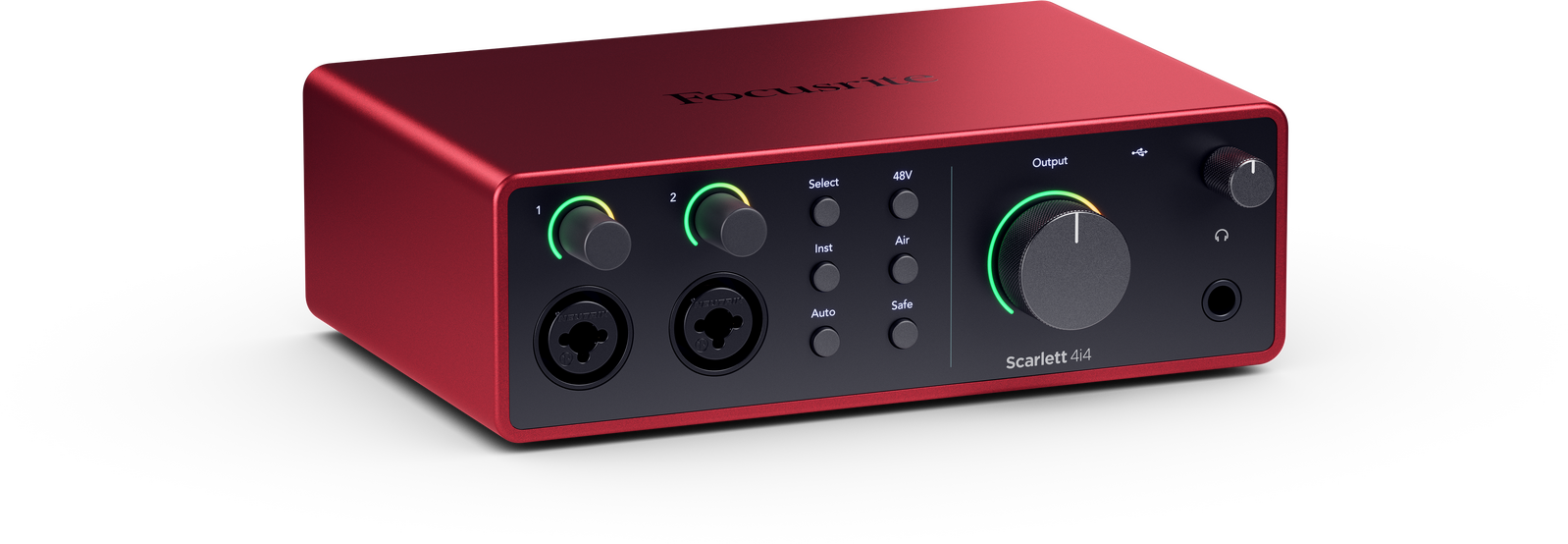

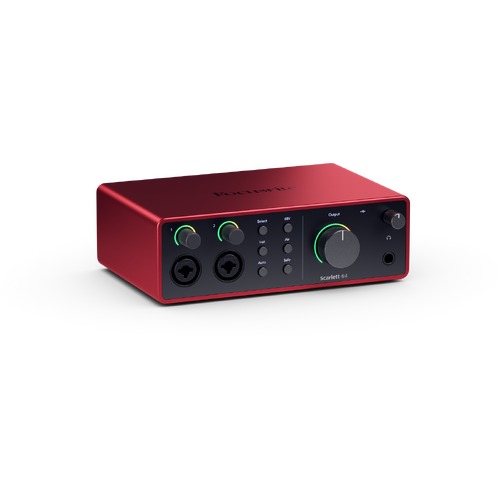

Focusrite Scarlett 4i4 (4th Gen) 4-in/4-out USB Audio Interface

Scarlett 4i4 is the complete compact studio hub for all your instruments. Perfect for multi-instrumentalists and collaborators, 4i4 is loaded with I/O for everything. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line and MIDI connections for your keys, guitars, synths, grooveboxes and controllers. With 4i4 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.

Two of our most detailed, ultra-low-noise preamps.
Plug into 4i4’s 4th-Generation remote-controlled preamps – Scarlett’s clearest and most detailed ever, with a huge 69dB gain range to get the best from every mic.

All the I/O you'll need
Hook up an electric guitar to one of the 4i4's Hi-Z instrument inputs, it feels just like an amp. Plug synths and grooveboxes straight into the super high quality line inputs. Connect your favourite outboard gear to the additional line outputs. You've even got midi.

Auto Gain and Clip Safe
Let 4i4 handle your levels. Auto Gain sets your levels and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.

All the software you need to make a hit record.
Once you’ve got started with Ableton Live Lite or three months of Pro Tools Artist recording software (both included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.

Loud and Clear with any headphones
A custom designed headphone amp design sets the stage for the best playback you've ever heard from a scarlett interface, driving high impedance headphones louder and clearer than ever before.

Mix your way with 4i4's independent outputs.
With 4i4, headphones, monitors, and line outs each get their own mix, so you can create the perfect studio for your speakers, the artist's headphones, and your outboard gear.

The Best Playback you've ever heard
A custom designed headphone amp design sets the stage for the best playback you've ever heard from a scarlett interface, driving high impedance headphones louder and clearer than ever before.

Huge 120dB Dynamic range for incredible recordings
Scarlett delivers incredible audio quality, with converters direct from our flagship RedNet interfaces as found in high end studios around the world.

SPECIFICATIONS:

Overview

• Number of Microphone Preamps: 2
• Phantom Power: Yes
• Instrument Inputs: 2
• Line Inputs: 4
• Air Mode: Yes
• Auto Gain: Yes
• Clip Safe: Yes
• Line Outputs: 4
• Headphone Outputs: 1
• Loopback: Yes
• MIDI: Yes
• Connectivity: USB Type-C
• Protocol: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 6 x 6 (including Loopback inputs)
• A/D Resolution: 24-bit/192 kHz
• Bus Powered: Yes (1.5A)

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response: 20-20kHz ± 0.06dB
• Dynamic Range: 116dB (A-Weighted)
• THD+N: -100dB @ 8dB gain
• Noise EIN: -127dBu (A-Weighted)
• Maximum Input Level: 16dBu
• Gain Range: 69dB
• Impedance: 3kΩ

Variable Line inputs

• Frequency Response: 20-20kHz ± 0.05dB
• Dynamic Range: 115.5dB (A-Weighted)
• THD+N: -100dB @ 8dB gain
• Maximum Input Level: 22dBu
• Gain Range: 69dB
• Impedance: 60kΩ

Fixed Line inputs

• Frequency Response: 20-20kHz ± 0.02dB
• Dynamic Range: 115.5dB (A-Weighted)
• THD+N: -105dB
• Maximum Input Level: 22dBu
• Impedance: 60kΩ

Instrument inputs

• Frequency Response: 20-20kHz ± 0.15dB
• Dynamic Range: 113dB (A-Weighted)
• THD+N: -80dB @ minimum gain
• Maximum Input Level: 12dBu
• Gain Range: 62dB
• Impedance: 1MΩ

Line outputs (Balanced)

• Frequency Response: 20-20kHz ± 0.02dB
• Dynamic Range: 120dB
• THD+N: -112dB
• Maximum Output Level: 16dBu
• Impedance: 100Ω

Headphone outputs

• Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range: 112dB @ 33Ω / 115dB @ 300Ω
• THD+N: -99dB @ 33Ω / -108dB @ 300Ω
• Maximum Output Level: 5dBu into 33Ω / 11dBu into 300Ω
• Maximum Output Power: 57mW into 33Ω / 27mW into 300Ω
• Impedance: 11Ω

Analogue to Digital Converter

• THD+N: -110dB
• Dynamic Range: 120dB

Digital to Analogue Converter

• THD+N: -115dB
• Dynamic Range: 130dB (A-Weighted)

Power

• USB: 1.5A
• External (Optional)7.5W
