description

ibanez grgm21bkn 3/4 size guitar

• SPECS

  • neck type GRGMMaple neck

  • top/back/body Poplar body

  • fretboard Jatoba fretboard White Sharktooth inlay

  • fret Medium frets

  • number of frets 24

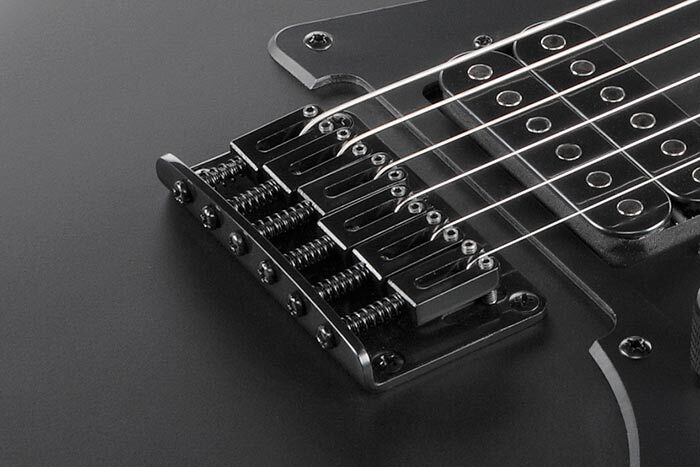

  • bridge F106 bridge

  • string space 10.5mm

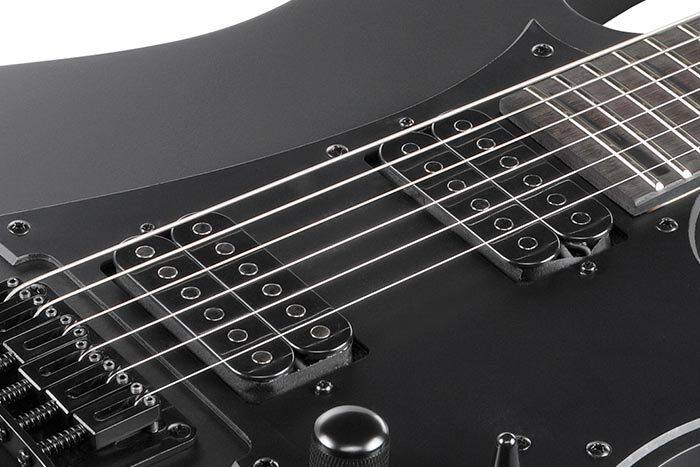

  • neck pickup Infinity R (H) neck pickupPassive/Ceramic

  • bridge pickup Infinity R (H) bridge pickupPassive/Ceramic

  • factory tuning 1E,2B,3G,4D,5A,6E

  • string gauge .010/.013/.017/.026/.036/.046

  • hardware color Chrome

• NECK DIMENSIONS

  • • Scale : 564mm/22.2"

    • a : Width 41mm at NUT

    • b : Width 56mm at 24F

    • c : Thickness 19.5mm at 1F

    • d : Thickness 21.5mm at 12F

    • Radius : 400mmR

• SWITCHING SYSTEM



  DESCRIPTION
  When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

• CONTROLS



  DESCRIPTION

  With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
