description

High-resolution compact studio monitor

Your music as you’ve never heard before

IK’s iLoud Micro Monitors stunned an industry. Producers and engineers at every level marveled at the performance coming from such a small setup, so IK challenged our team to push its concept even further - to design a new compact speaker to rival 5”, 6” and even 8” monitors.

The result is iLoud MTM, and it changes everything about the sound, accuracy and convenience of reference monitors in today’s modern studio.

Once you hear iLoud MTM, you’ll find it hard to ever go back to traditional big-box speakers.

Specs

iLoud MTM Specifications

• Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
• LF Drivers: 2 x 3.5” polypropylene custom made mid-woofers
• HF Driver: 1” low distortion, back chambered silk dome tweeter
• Acoustic Design: DSP tuned bass reflex
• Number of amps per speaker: 2
• Amplifiers type: High efficiency Class-D
• Total power: 100W RMS
• LF power: 70W RMS
• HF power: 30W RMS
• Crossover Type: Linear Phase Variable Order
• Crossover Frequency: 3.1kHz
• Frequency response: from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal)
• Phase response: System remains coherent within +/- 15° from 200Hz to 20kHz
• Sensitivity at +4dBu: 0dBu signal generates a 100 dB SPL @ 1 m
• Sensitivity at -10dBV: -11dBu signal generates a 100 dB SPL @ 1 m
• Maximum SPL @ 1m, one speaker playing, on axis: 103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise
• Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
• LF extension: switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz
• LF switch: Low shelf, +2dB or -3dB from 100Hz down
• HF switch: high shelf, +2dB or -2dB from 8kHz up
• Desk switch: -4dB at 160Hz and +1dB at 1.8kHz
• Calibration: Fully automatic and built-in digital calibration, microphone included
• Measurement Microphone: Omnidirectional, Mems based precision measurement microphone
• Full DSP control

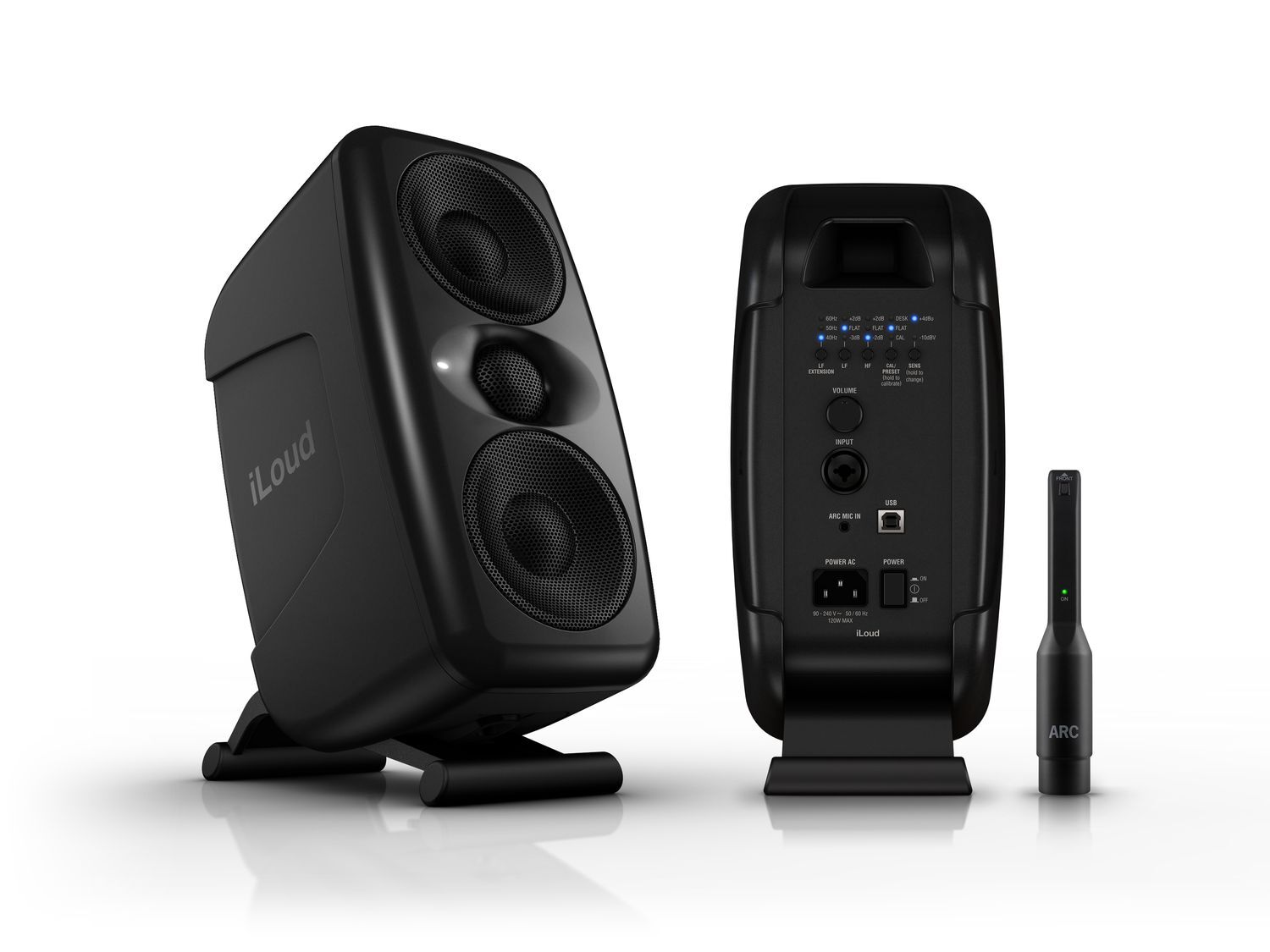

• Connectors: 1x combo XLR-1/4” TRS balanced input; 1/8” TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
• Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption

Dimensions

• Size: 264mm/10.39" x 160mm/6.3" x 130mm/5.12"
• Weight (per speaker): 2,5kg/5.5lbs (speaker + foot)

Package includes

• 1 x iLoud MTM monitor
• Power cord
• ARC Microphone
• ARC Microphone cable
• Tilting stand
• Horizontal support feet
• Locking key
