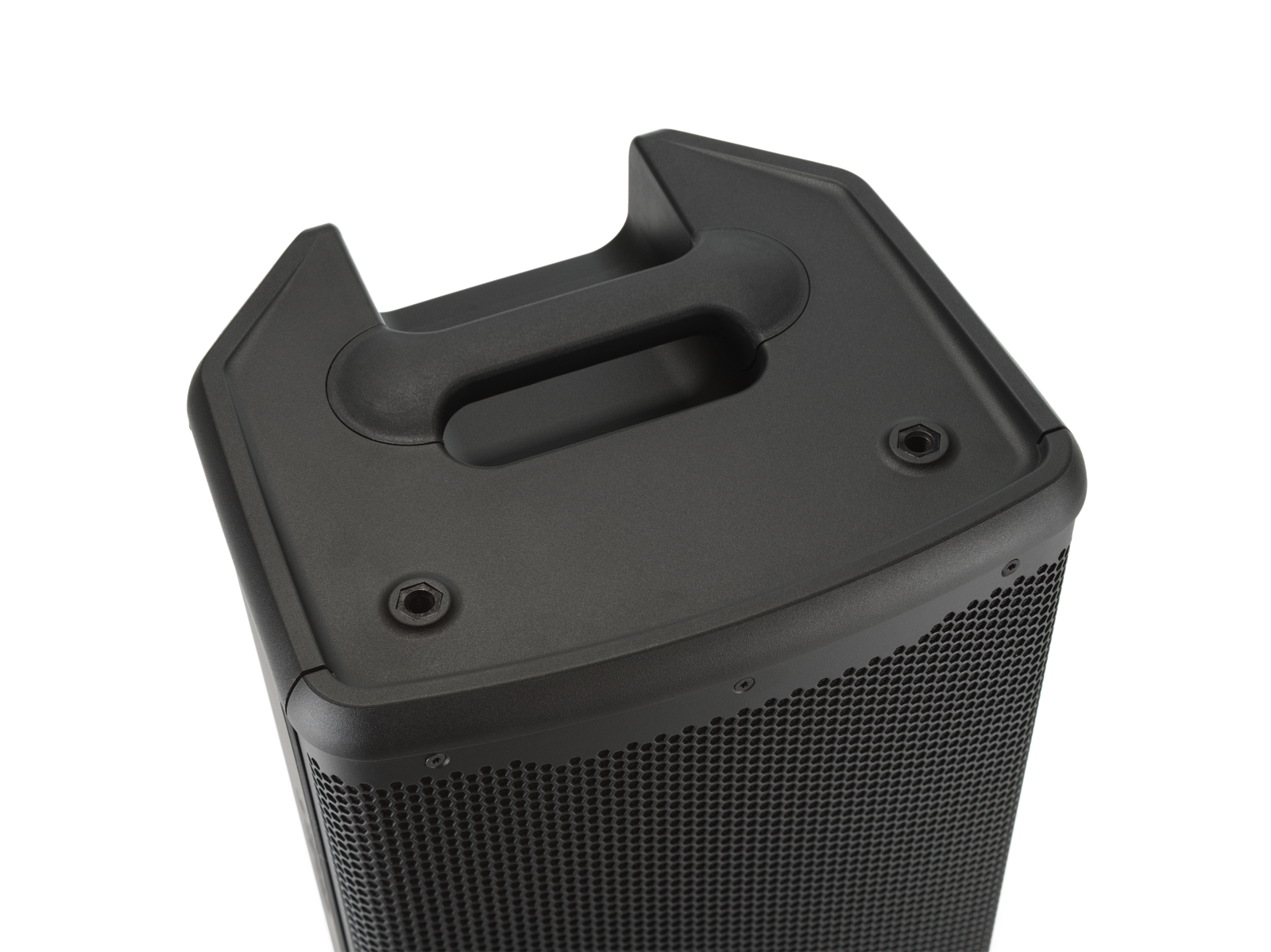

JBL EON712 12-inch Powered PA Speaker with Bluetooth

The EON700 Series represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.

EON700 leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.

Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
Speakers are powered by 1,300 (loudspeakers) or 1,500 (subwoofer) watts of ultra-efficient discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.

Advanced DSP and Control
EON700’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other speaker functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming (full-range speakers) and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.

System Versatility
EON700 loudspeakers can be used as main PA speakers or floor monitors. Full-range models feature top and rear suspension points for flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount. EON718Ssubwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations

Product Specifications

• JBL-EON712: 12-inch Full-Range
• Power: 1,300W peak (650W cont)
• Frequency response: 50 Hz–20 kHz (-10 dB); 60 Hz–20 kHz  (-3 dB)
• Max SPL: 127 dB
• Dispersion: 100° H x 60° V

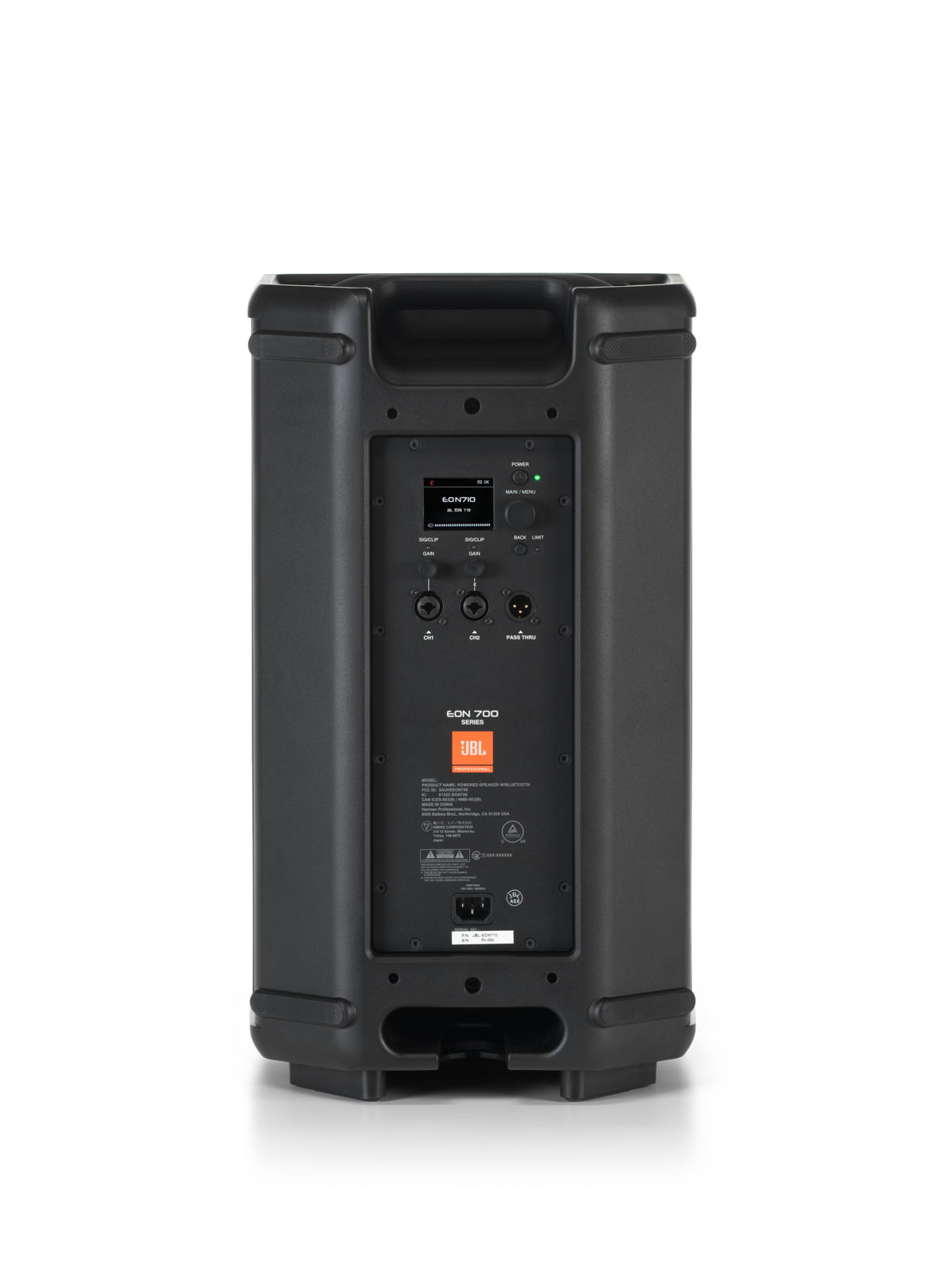

• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Weight: 14.5 kg
