description

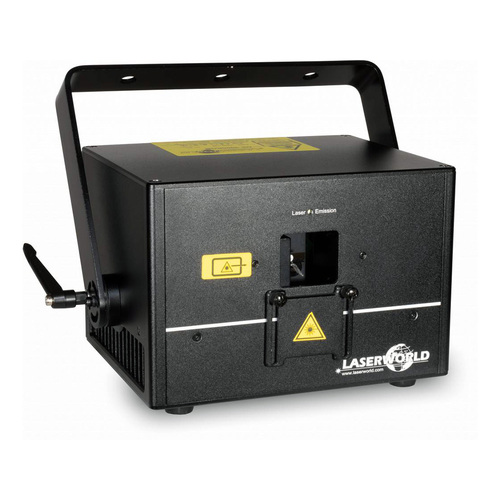

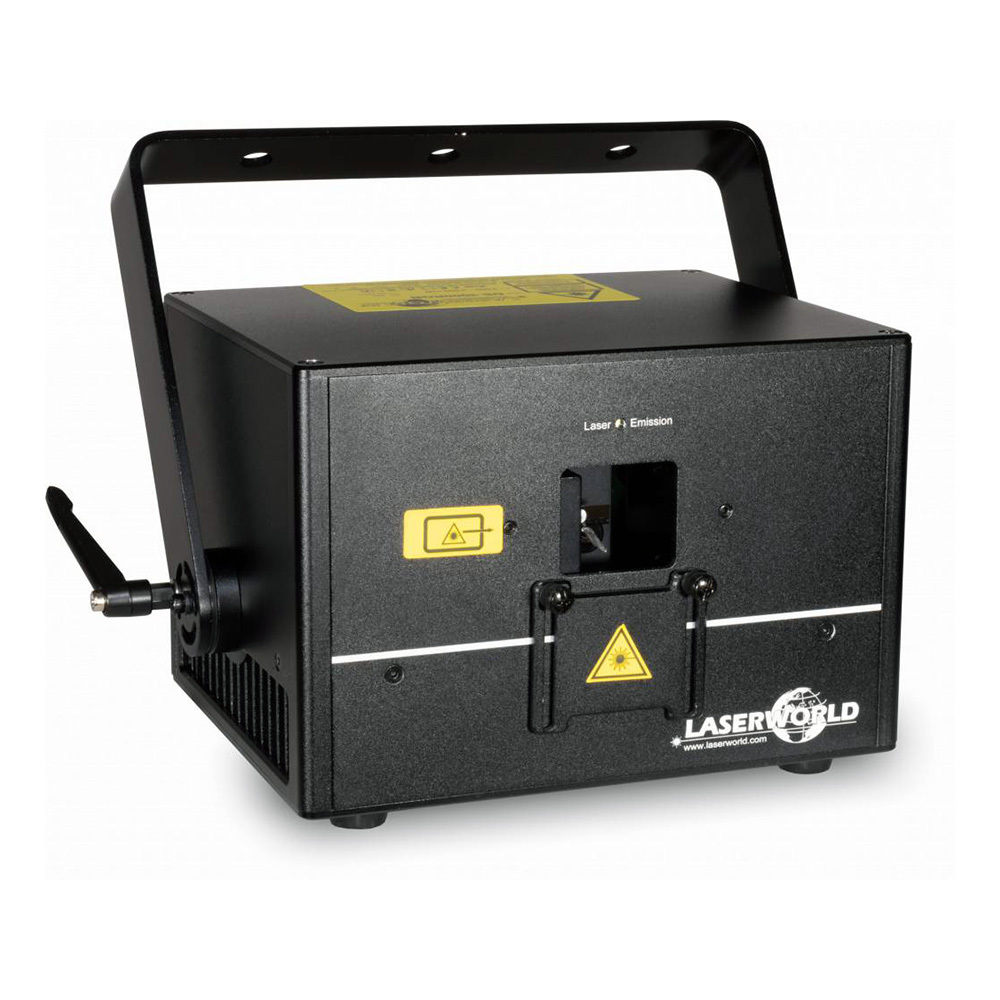

The Laserworld DS-2000RGB ShowNET is the latest addition to the popular Diode series. The new ShowNET version features an integrate ShowNET ILDA control board for direct connection and control with the Laserworld ShowEditor software (included). Perfect for professionals wanting to start creating and and running their own custom laser shows. Like the original the laser features premium 2,000mW diode-only laser sources (“Pure Diode”). Delivering the highest quality beam specifications with beautiful analogue colour modulation. The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNET. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone mode! There are two different DMX modes:

1. DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
2. Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show. The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.

Beginners, as well as professionals, use the Laserworld Diode Series units, as they are easy to use and very versatile in their features. While remaining very compact and lightweight. Another great feature of the DS series is the ability to align the beams without having to open the main housing. This is done through the small panel located on the front of the show system. At its heart the DS-2000RGB has 3 main diodes; Red: 450mW / 638nm, Green: 400mW / 520nm; and Blue: 1,400mW / 450nm. With a beam spec of 3mm / 1.0mrad for ultra sharp projections. Coupled with high-grade galvo-scanners capable of speeds of up to 30,000 p/ps @ 8°, and a max scan angle of 45° to give you the coverage needed for larger events. All Diode series projectors come with an integrated and switchable scan fail safety (SFS) which prevents single beams from being projected. Additional safety features include a projection shield, and a safety key to prevent unauthorized operation. Perfect for a wide of applications from nightclub to large stage productions.

• Premium ‘pure diode’ laser projection system
• Powerful 2,000mW output with guaranteed minimum of 1,900mW
• Ultra fast scanner speeds of 30 kpps @ 8° , with a max scan angle of 45°
• Compact and lightweight design
• Integrated ShowNET network control interface

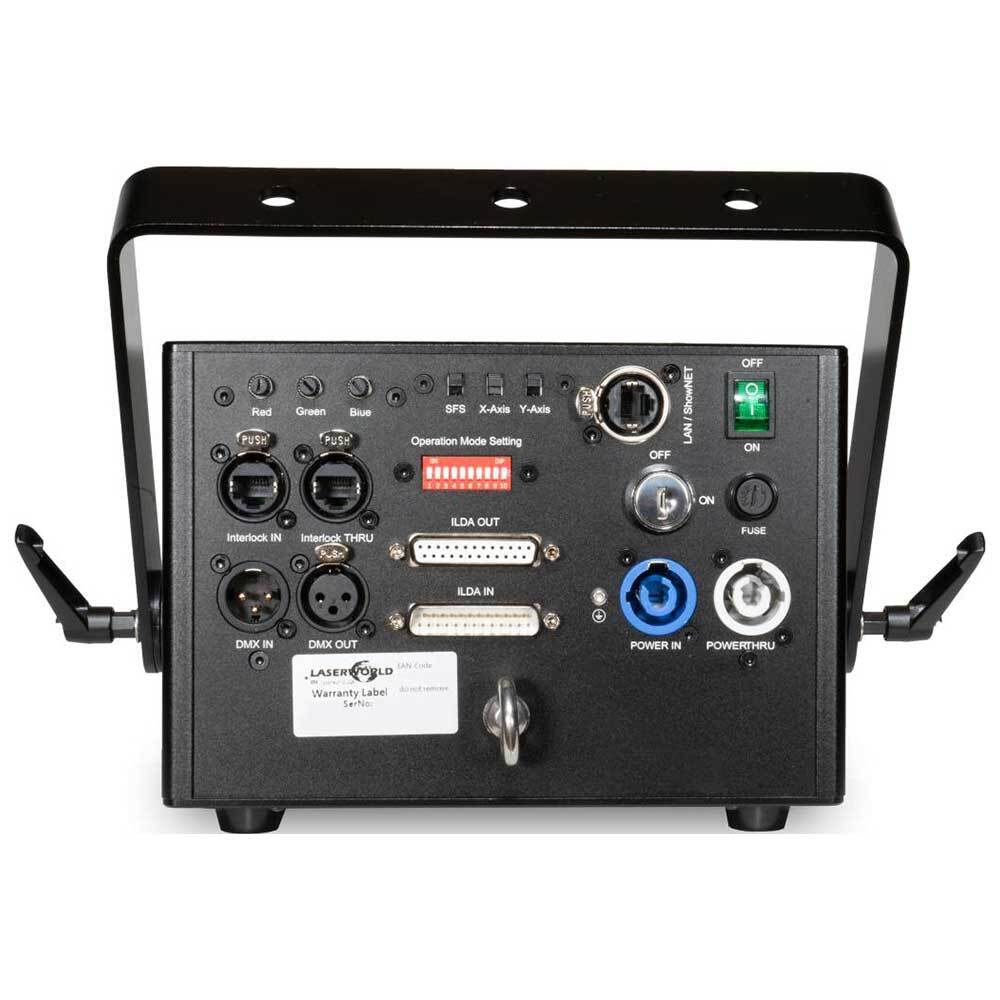

• DMX512 input and output (non-isolated) with built-in ART-net converter
• Connect directly to your host PC via the ethernet connection (supports up to 16 projectors in parallel)
• Flexible IP address setting: static address, DHCP or AutoIP
• Internal MicroSD card for ILDA file playback (ILDA format code 4/5 RGB)
• Integrated scan fail safety (SFS), safety key, and projector shield

Guaranteed power at aperture:	1’900 mW
Power Red:	450 mW / 638 nm
Power Green:	400 mW / 520 nm
Power Blue:	1’400 mW / 450 nm
Beam Specifications (full angle):	ca. 4 mm / 1.1 mrad
Laser Sources:	Diode
Laser Class:	4
Operation Modes:	ILDA, DMX, stand-alone, master-slave
Scanner:	30 kpps@8°
Scan Angle max.:	45°
Basic Patterns:	over 120 (layers, tunnels, fences, waves, etc.)
Accessories:	power cable, manual, keys, interlock, allen key
Power Supply:	85 V – 250 V / AC, 50/60 Hz internal PSU
Power Consumption:	45 W
Dimensions:	210 x 170 x 145 mm (L x W x H)
Weight:	4 kg
