NORD STAGE 4 73

Nord Stage 4 73 Featuring a fully weighted Triple Sensor keybed (E-E) that has aftertouch, and Physical Drawbars that are equipped with LEDs to indicate.

AN INCREDIBLE NEW EXPERIENCE

The Nord Stage 4 boasts a brand-new panel design with separate LED faders for each Layer, giving unparalleled overview and versatility for sound creation and live performance. The new Preset Library is brimming with exciting Piano, Synth, and Organ sounds for fast and easy patch development.

The Layer Scene enables you to easily toggle between two distinct sound configurations with the press of a button. The Nord Stage 4 introduces a new level of creative creativity with the addition of a powerful new Effects section, various pedal selections, and a superior Triple Sensor keybed.

The Nord Stage 4 sets a new benchmark with its intuitive new panel design, superior triple sensor keybed, comprehensive effect sections for each layer, and huge improvements to Nord’s award-winning technology.

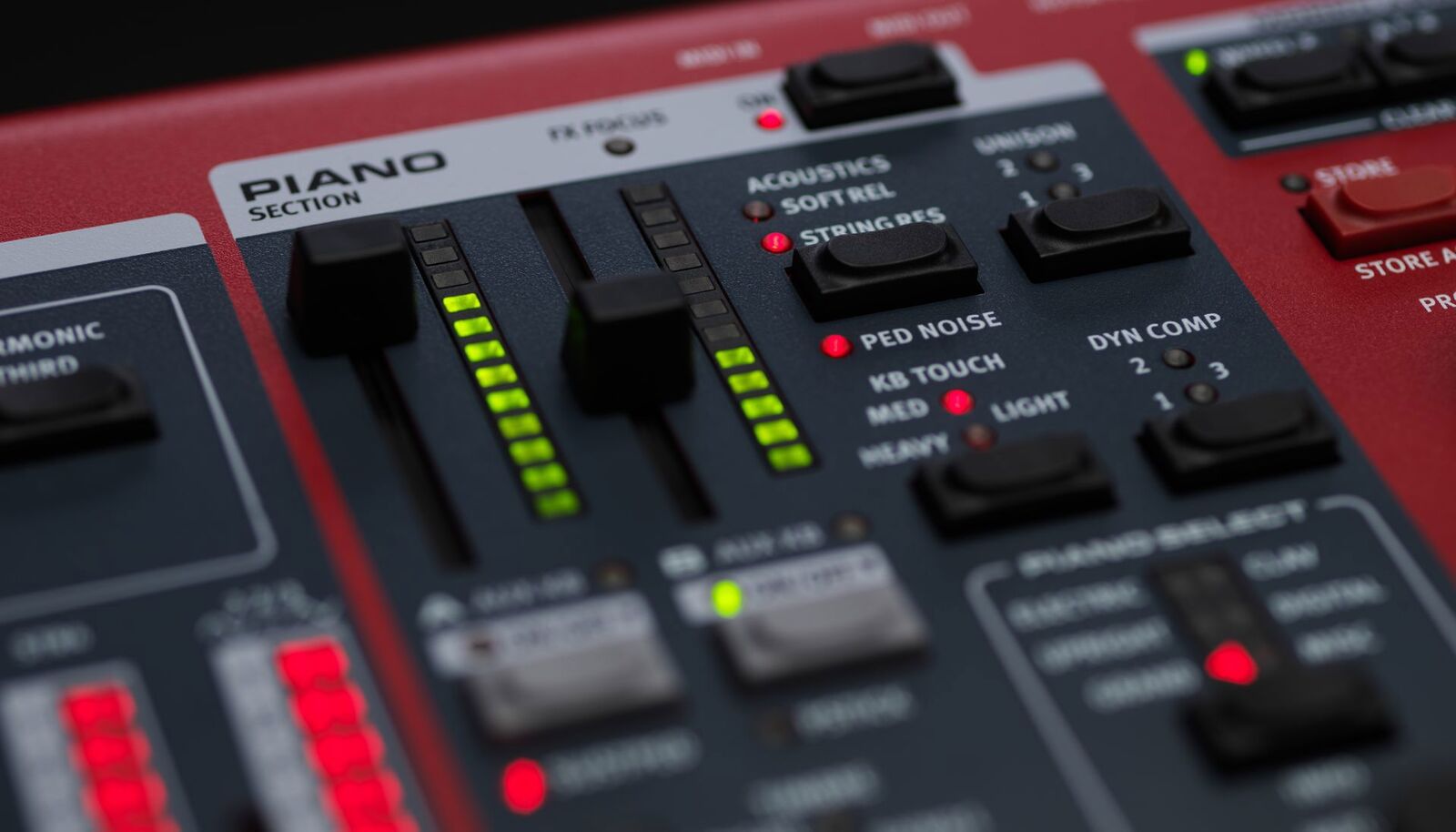

PIANO

A new, improved selection of Grands, Uprights, and Electric Pianos from Nord’s Nord Piano Library is included with the Nord Stage 4, along with additional features like Dynamic compression and Unison.

SYNTH

The powerful Nord Wave 2 Synth Engine is at the heart of the three-layer Synth section, which includes Virtual Analog, Samples, FM, and Digital Waves. A new Nord Sample Library collection includes Strings, Bass, Choirs, Guitars, and more. The improved Arpeggiator has new Polyphonic, Gate, and Pattern modes for a wide range of rhythmic applications with programmable patterns.

ORGAN

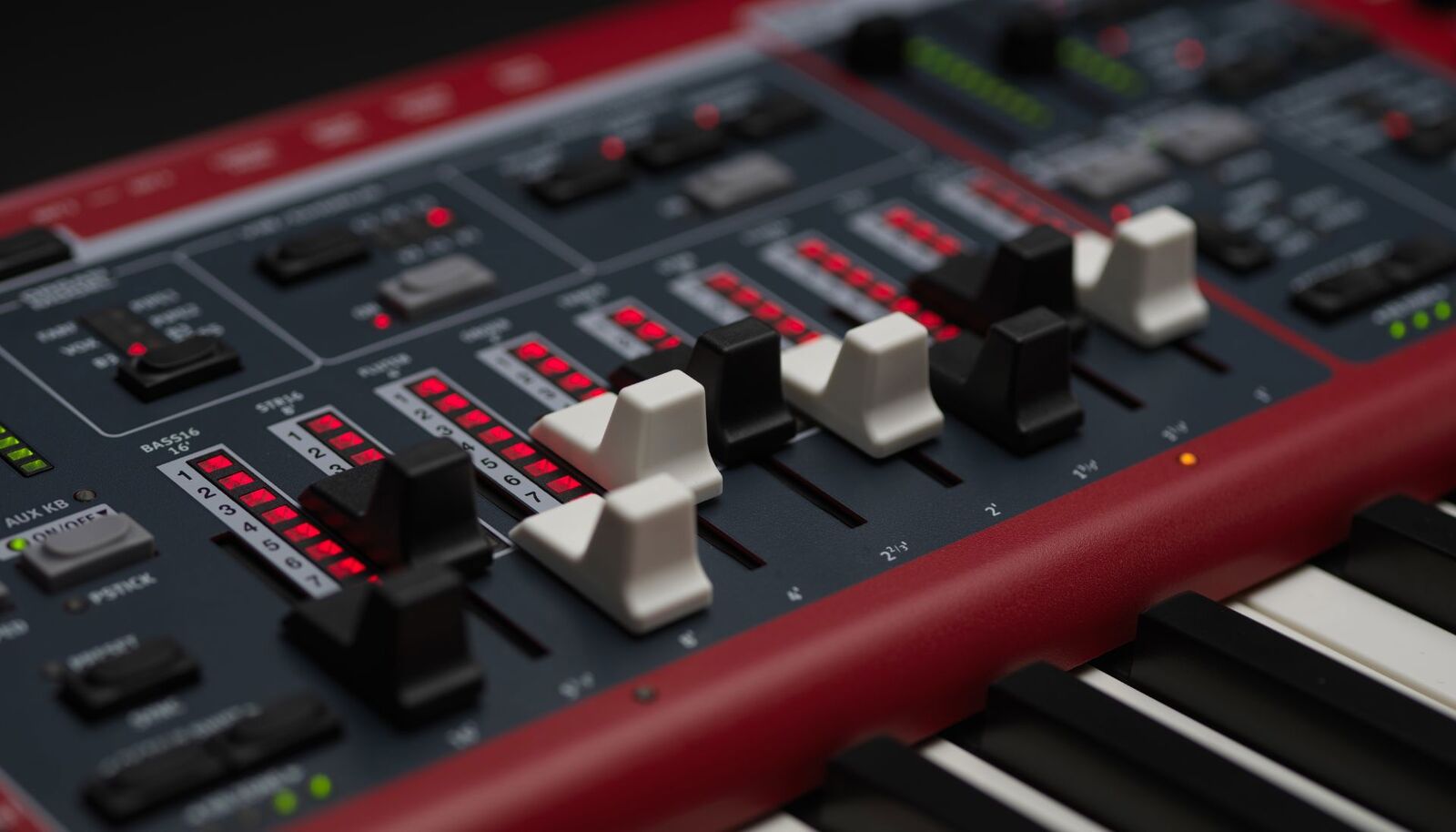

The Organ area includes two different Pipe Organ models in addition to Nord’s multi-award winning simulations of the 83 Tonewheel and 83 Bass organs, as well as the legendary Vax and Farfisa. For the best possible hands-on experience and overall perspective, every Stage 4 model comes included with Nord’s brand new Physical drawbars that feature LED indications.

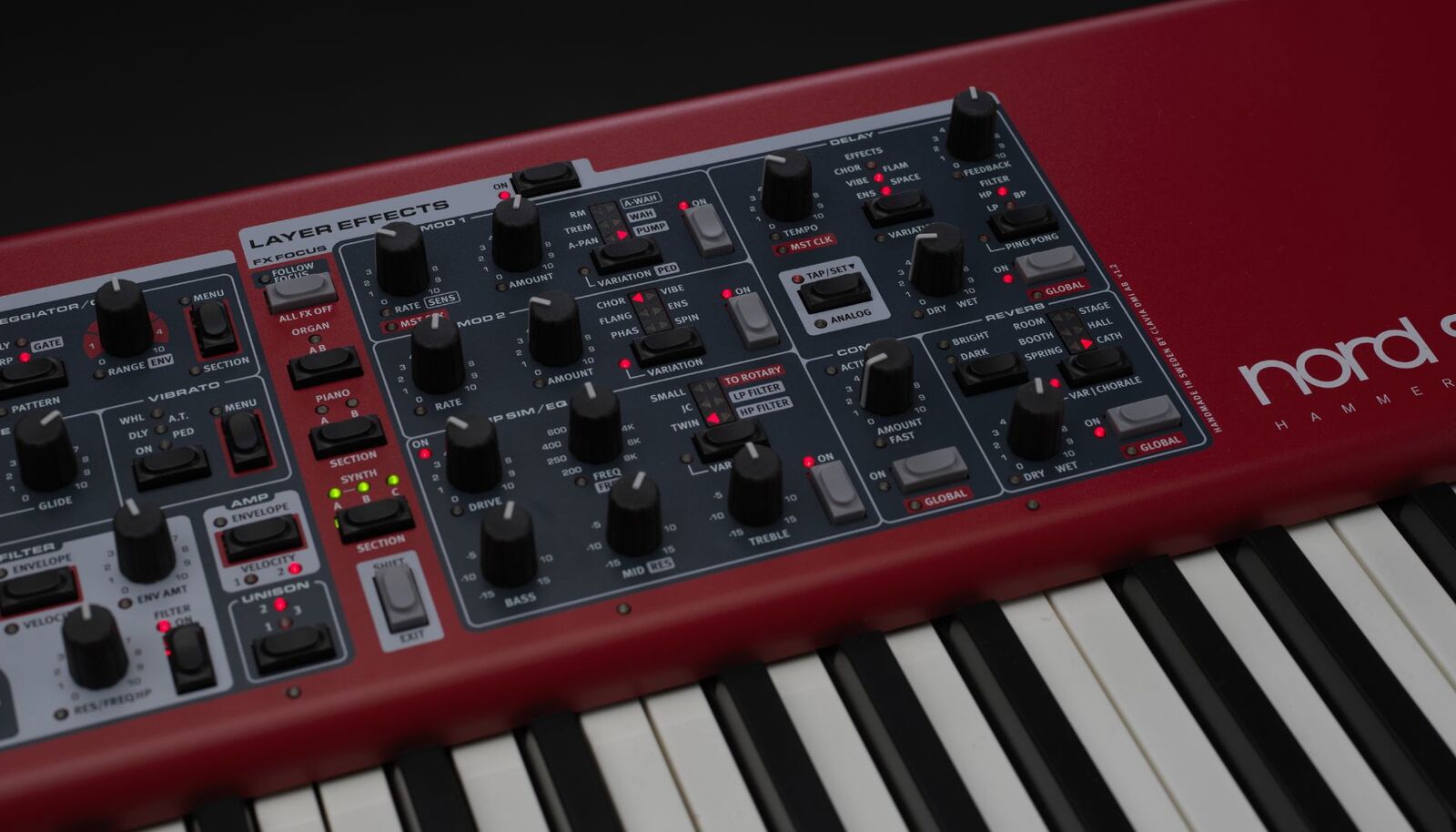

EFFECTS

The Nord Stage 4 is equipped with a powerful new Effect section that provides an extensive configuration of Effects for each Layer. A brand new Pump effect, a brand new Spin effect, and brand new varieties of Reverb, Delay, Amps, and Modulation effects are all part of the vast spectrum of Effects that may be applied. These effects can be tempo synced or controlled by a pedal.

• Enhanced collection of Uprights, Grands, EPs and more
• Dynamic Compression
• Unison feature
• Creative Timbre presets
• Nord Wave 2 Synth Engine
• 3 independent Synth Layers
• Doubled sample memory
• Enhanced samples with Tru-Vibrato, Unison and Round Robin
• Extensive real time controls
• Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
• Extern mode for advanced MIDI control
• Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
• Physical drawbars with LED indicators
• New B3 Bass mode
• Drawbar Live mode
• Model 122 Vintage Rotary Speaker with normal or close mic positions
• Dedicated Effect section per Layer
• New Variations for Modulation, Amp, Delay and Reverb Effects
• New Spring, Booth and Cathedral Reverb
• New Pump effect
• New Spin effect
• New Flam and Space Delay

Specifications:

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel
• 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
• Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
• 8 Live Programs
• 2 Individual Layer Scene Setups
• 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
• Stereo and Mono output routing options
• Programmable Transpose +/- 6 semitones
• Master Clock functionality with manual, external and tap-tempo rate control
• Internal and MIDI clock source
• MIDI over USB functionality
• Level control
• Aftertouch
• Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
• 3 Split Point width (crossfade) options: Lrg, Sml or Off

Connections:

• 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone output - ¼", 6,35 mm stereo jack
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
• Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2
• Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal.
• Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack.
• Control Pedal - ¼", 6,35 mm TRS stereo jack.
• Foot Switch input - ¼", 6,35 mm jack. Use a momentary two-button pedal or a single switch type pedal.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

• User Manual
• Power cord
• USB cord
