$449.00
SKU: PDM-S804

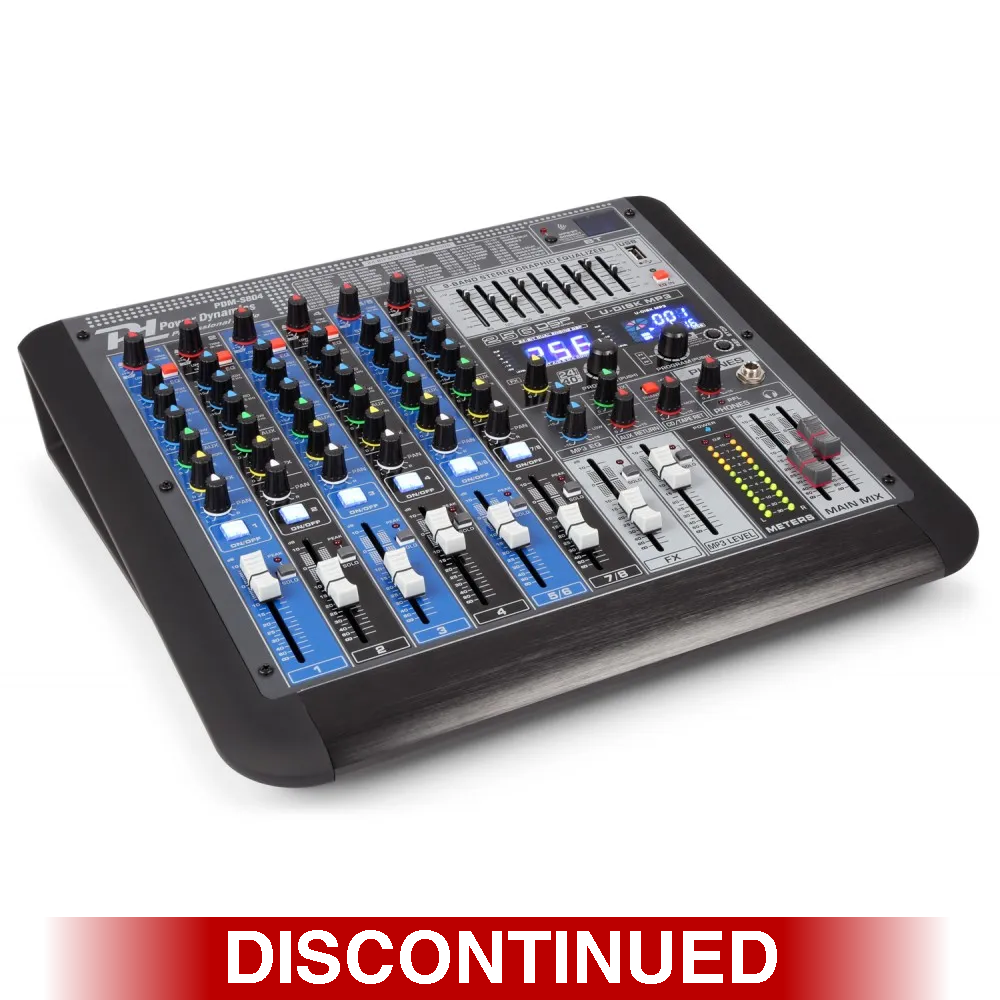

Power Dynamics PDM-S804 8 Channel PA Mixer with Digital FX, AUX Send, USB Player, & Bluetooth
More info
Make 4 payments of $112.25 over 8 weeks and get it now! more info
calculate shipping
yes, we
30 Days Money Back Guarantee
Over 40 Years In Business
description
The Power Dynamics PDM-S804 6-channel mixing console with 24-bit multi-FX processor is perfect for professional mixing of various music sources. This multi-channel mixer is equipped with a built-in BT receiver with smartphone holder and an MP3-compatible USB port. 8 channels for a variety of external audio accessories such as microphones and line equipment can be mixed to create a unique sound experience using a comprehensive effects section. The optimum sound control of all output signals is guaranteed at all times thanks to a 9-band equalizer. Even condenser and ribbon microphones work perfectly with a switchable + 48V phantom power. The PDM-S804 is the ideal all-round mixer for studio applications of all kinds, and convinces both beginners and professionals alike with its diverse capabilities.- 4 Balanced microphone XLR inputs
- 4 Balanced mono line inputs 6.3mm Jack
- 2 Balanced stereo line inputs 6.3mm Jack
- +48V phantom power
- Stereo line input (RCA)
- 75Hz Low cut filter channel 1-4
- Multi-FX processor with 256 presets
- Solo switch per channel (PFL)
- On/off switch per channel
- Hi, Mid and Low control for each channel
- FX inserts on each channel
- Aux send per channel
- Adjustable Pan per channel
- 9-band Equalizer
- Stereo balanced main outputs (XLR + 6.3mm Jack)
- Separate control room, headphones and stereo rec outputs
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED's
- Supplied with telephone holder
| Playback options | BT streaming, USB |
|---|---|
| Input Connections | 6.3mm Jack, RCA, USB, XLR (3-pin) |
| Output connections | 6.3mm Jack, RCA |
| Presets | 256 |
| Type of effects | Ambience, Chapel, Chorus, Delay, Early reflex, Echo, Flanger, Gated reverse, Hall, Leslie, Phaser, Ping pong delay, Pitch, Plate, Reverb delay, Room, Spring, Stadium |
| DSP Resolution | 24-bit |
| Frequency response | 10 - 45.000 Hz |
| THD | <0.01% |
| Input level: Mic. | 1.5mV, 2 kOhm |
| Input level: Line | 150mV, 100 kOhm |
| Signal-to-noise ratio | >112dB |
| Output level: Master | 1V |
| Power supply | 100-240VAC 50Hz |
| Dimensions (L x W x H) | 335 x 360 x 95mm |
| Weight | 3.9 kg |
specifications
| SKU | PDM-S804 |
| Barcode # | 8715690000000 |
| Brand | Power Dynamics |
| Shipping Weight | 4.3000kg |
| Shipping Width | 0.415m |
| Shipping Height | 0.160m |
| Shipping Length | 0.410m |
