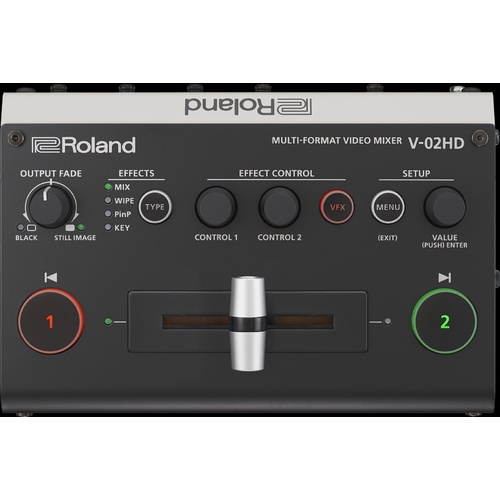

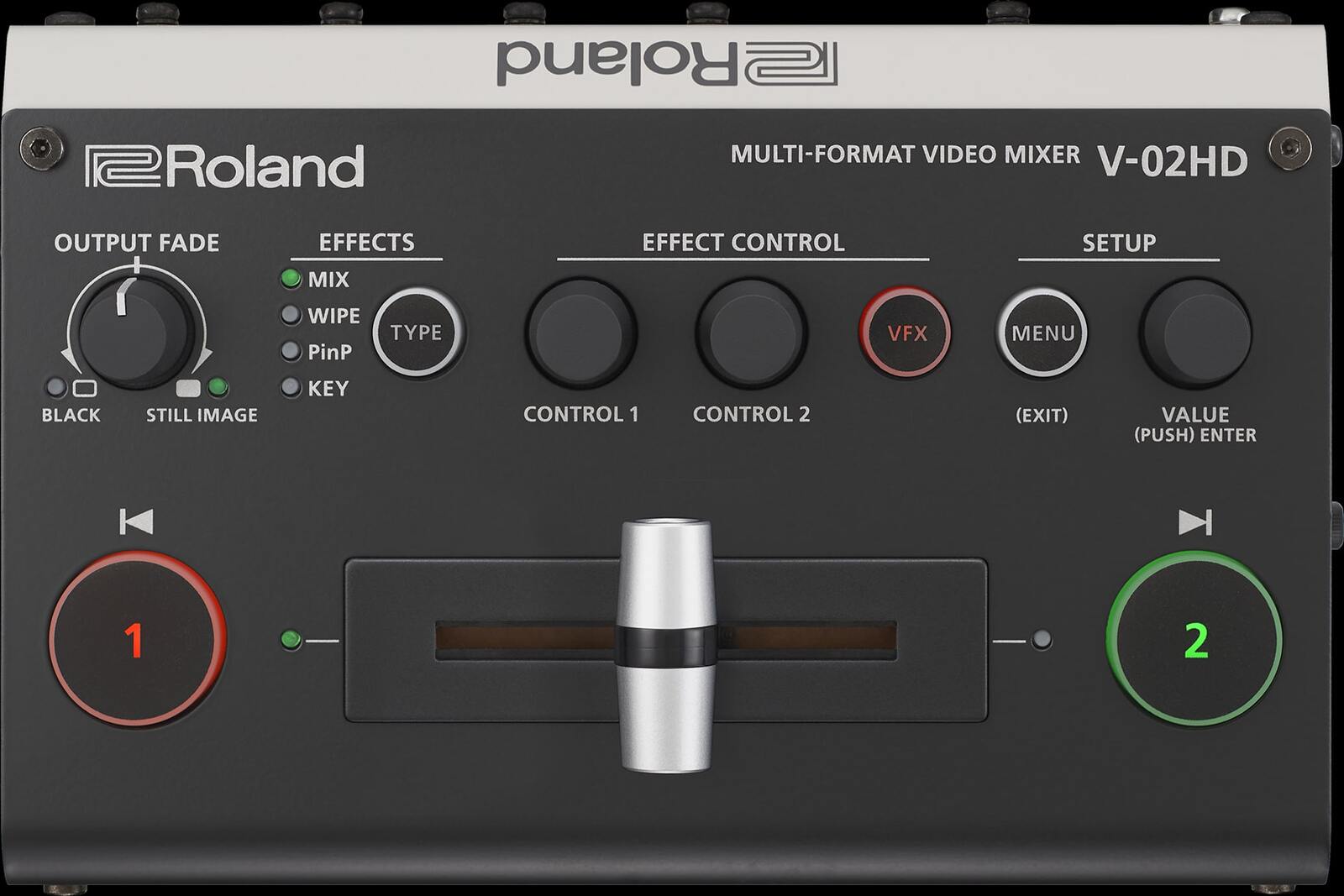

ROLAND V02HD Micro Video Switcher

Roland’s versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects / composition. Save on space and headaches by packing a V-02HD; the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.

Recording or streaming with a live switcher onsite lets you present the client with an immediate deliverable and the V-02HD makes the entire process fast, easy and fluid for the camera operator.

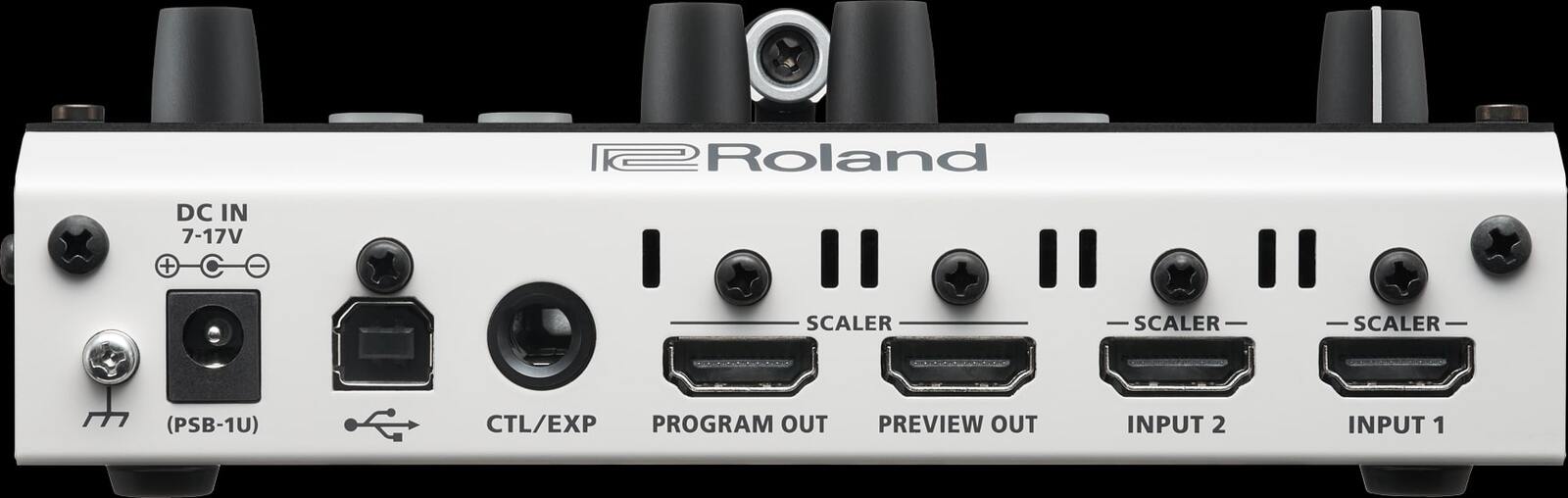

The V-02HD takes the HDMI output from two cameras and seamlessly switches to a connected recorder or livestreaming encoder. The operator can then switch between cameras using the dedicated controls or even by using their feet, via a connected footswitch that lets them continue operating their camera. Audio from both cameras and external sources can be mixed together within the V-02HD and monitored through dedicated headphone output. Finally, the resulting mix is embedded with the video switch and output over HDMI. The V-02HD transforms a two-camera shoot into a small one-person production studio, for reliable recording or live-streaming even with minimal resources.

Having two HDMI-equipped devices doesn’t mean they’re compatible, especially when it comes to video signals in a variety of resolutions — for example, a tablet’s output may not display properly on the receiving display. With both input and output scalers, the V-02HD can take SD, HD, and computer resolutions, before resizing them to fit the display and then outputting in a new resolution that’s compatible with the receiving device

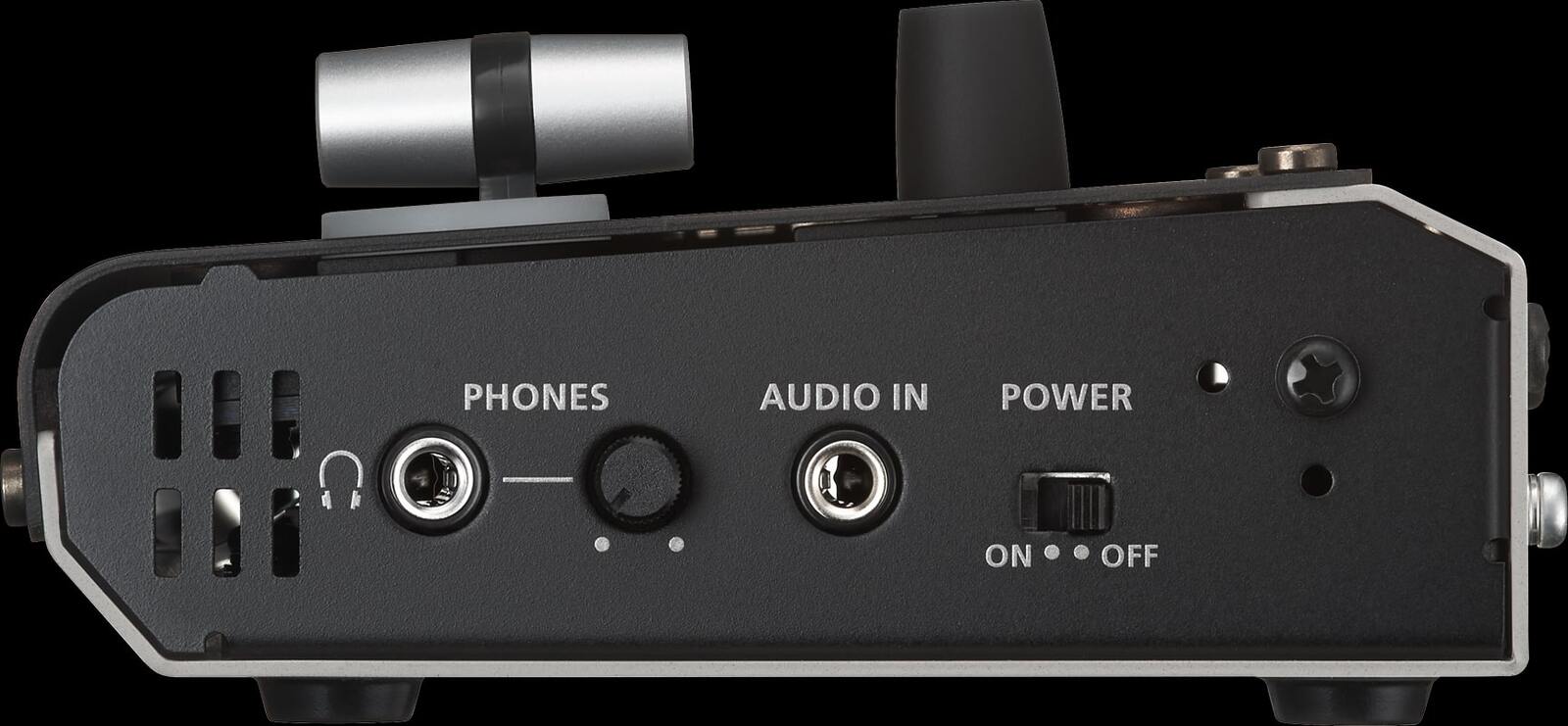

The V-02HD not only lets you embed analog audio into an HDMI signal — for recording or live streaming — but you can also extract the audio from an HDMI signal to send over to a larger dedicated audio mixer. Where many converters only support digital audio, or offer either embedding or de-embedding (and not both), the V-02HD lets you do it all.

The V-02HD has three-band EQ and dynamics onboard, so you can immediately optimize your audio without having to send to an external mixing desk. A built-in effects library is packed with presets for common production scenarios including interviews, ambient sound recording, and eliminating wind noise when filming outdoors

Although adding effects via your editing package is becoming easier, more complex effects — for example, blurring a person’s face for privacy purposes – require time and extensive knowledge of video-editing software. Or you could just add the effect directly to the camera’s output and record the result. The V-02HD has 14 visual effects that can be applied in real-time, with adjustable parameters to fine-tune the results plus an additional 5 composition effects so you can add titles, use a green screen with the Key effect, or create a separate inset window with the PinP capability.
