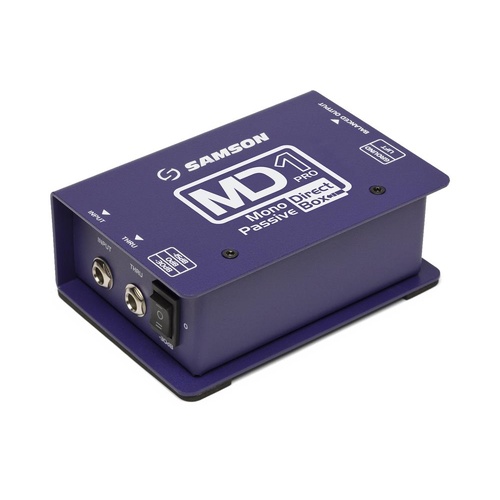

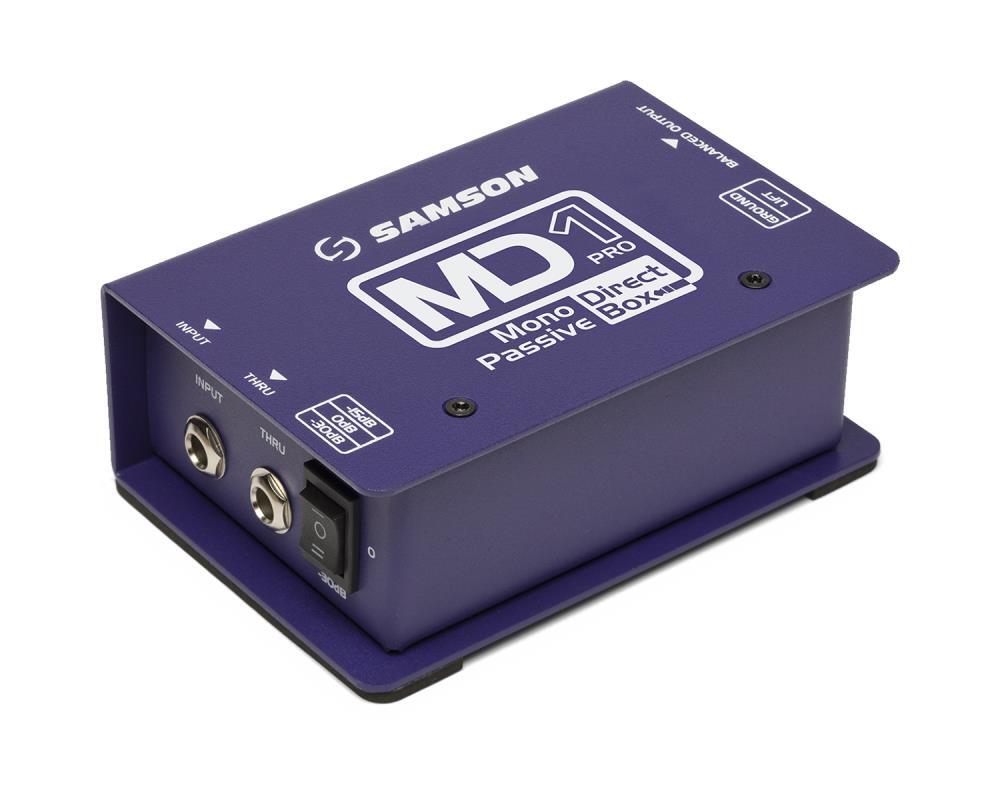

Samson Audio MD1 Pro Mono Passive Direct Box - 29-MD1PRO

The Samson MD1 Pro Mono Passive Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality solutions for line, instrument, and speaker level signals. The MD1 Pro allows balanced lines to be sent from your instrument long distances without inducing noise.

The MD1 Pro features Samson's STLX Mu-Metal shielded transformer that delivers an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD1 Pro's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. The MD1 Pro also includes a 3-position 0dB/-15dB/-30dB attenuation switch to toggle between line and speaker level signals.

The MD1 Pro's Thru jack enables you to tap off the signal from the input and pass the signal to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amplifiers, which depending on your application may be preferable, especially as more musicians are using in-ear monitors. Housed in a 14-gauge steel chassis, the MD1 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all the MD1 Pro's internal connections, switches and solder joints from failure, ensuring quiet, reliable performance.

The MD1 Pro features:

• All-metal, impact resistant design
• Samson STLX Mu-Metal shielded transformer

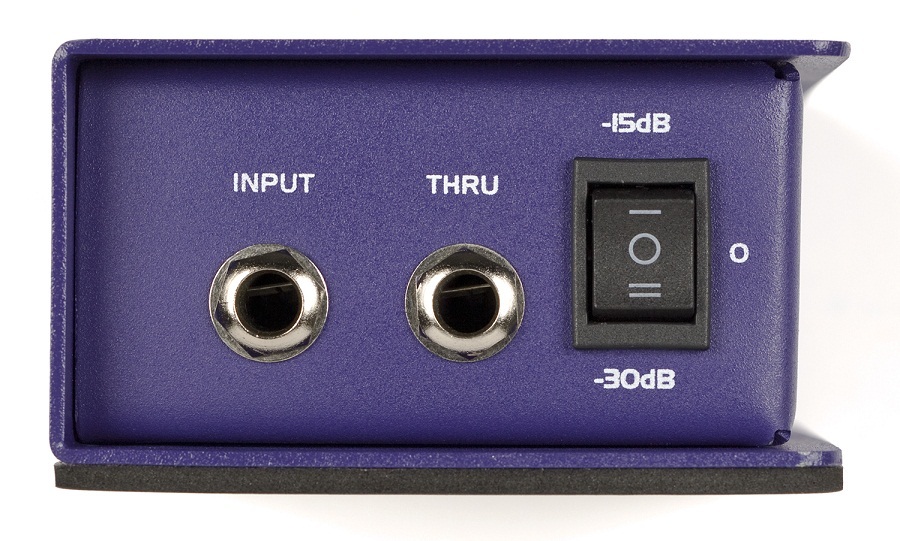

• 3-position 0dB/-15dB/-30dB attenuation switch

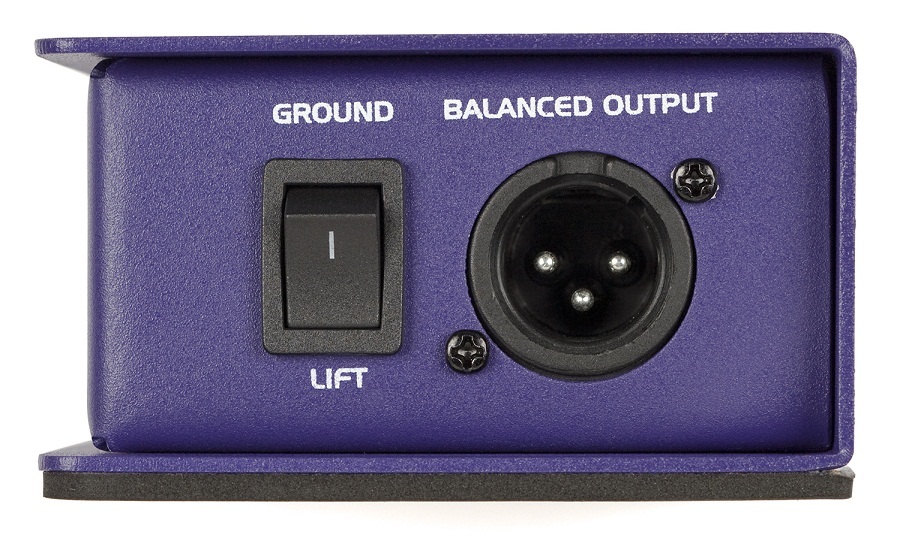

• Ground Lift switch
• 1/4" Input and Thru
• Balanced XLR output
• No Phantom or Battery power required
• Frequency response of 18Hz–40kHz
