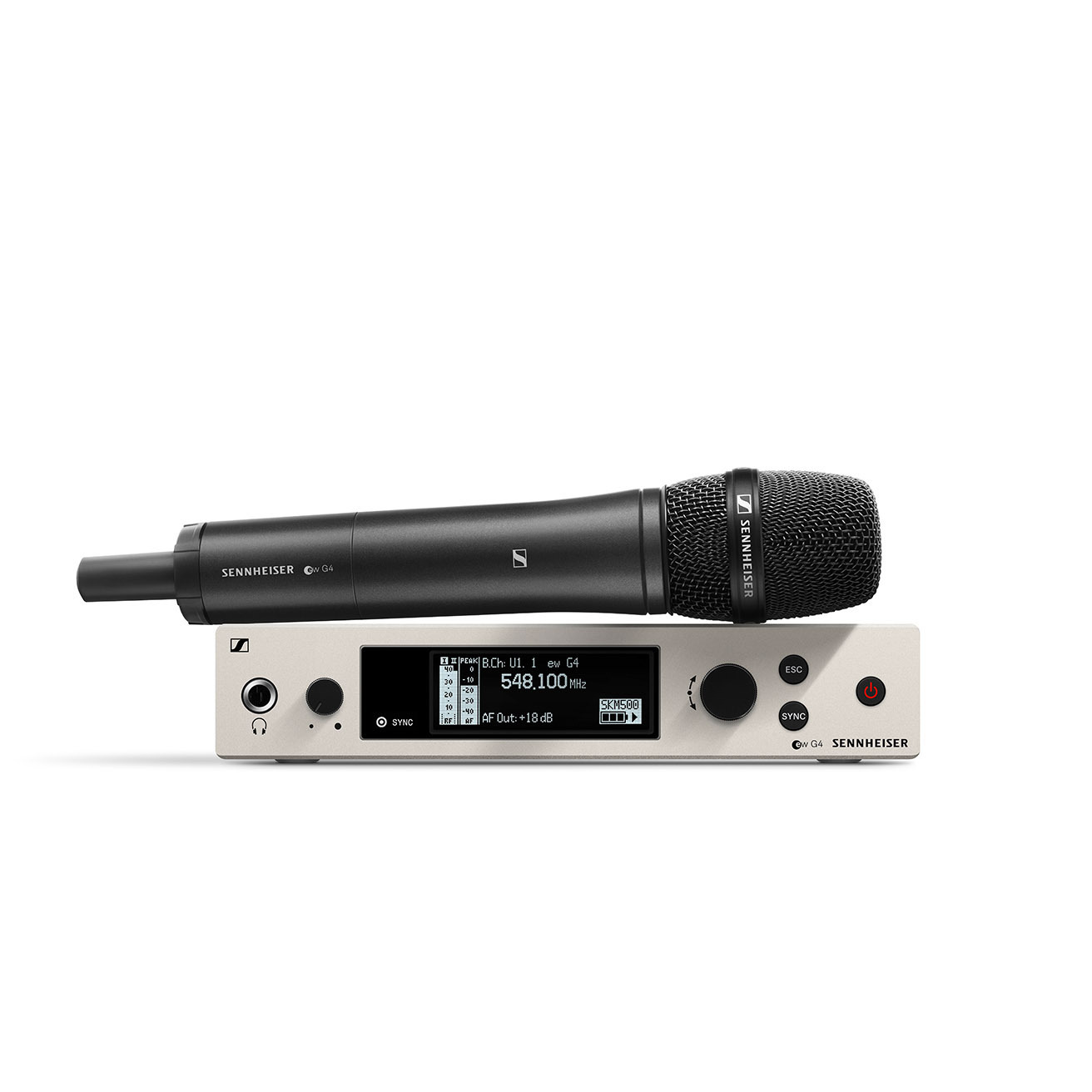

Sennheiser EW 500 G4-935-GBW Wireless Vocal Set - Frequency Range: GBW (606 - 678 MHz)

Includes:

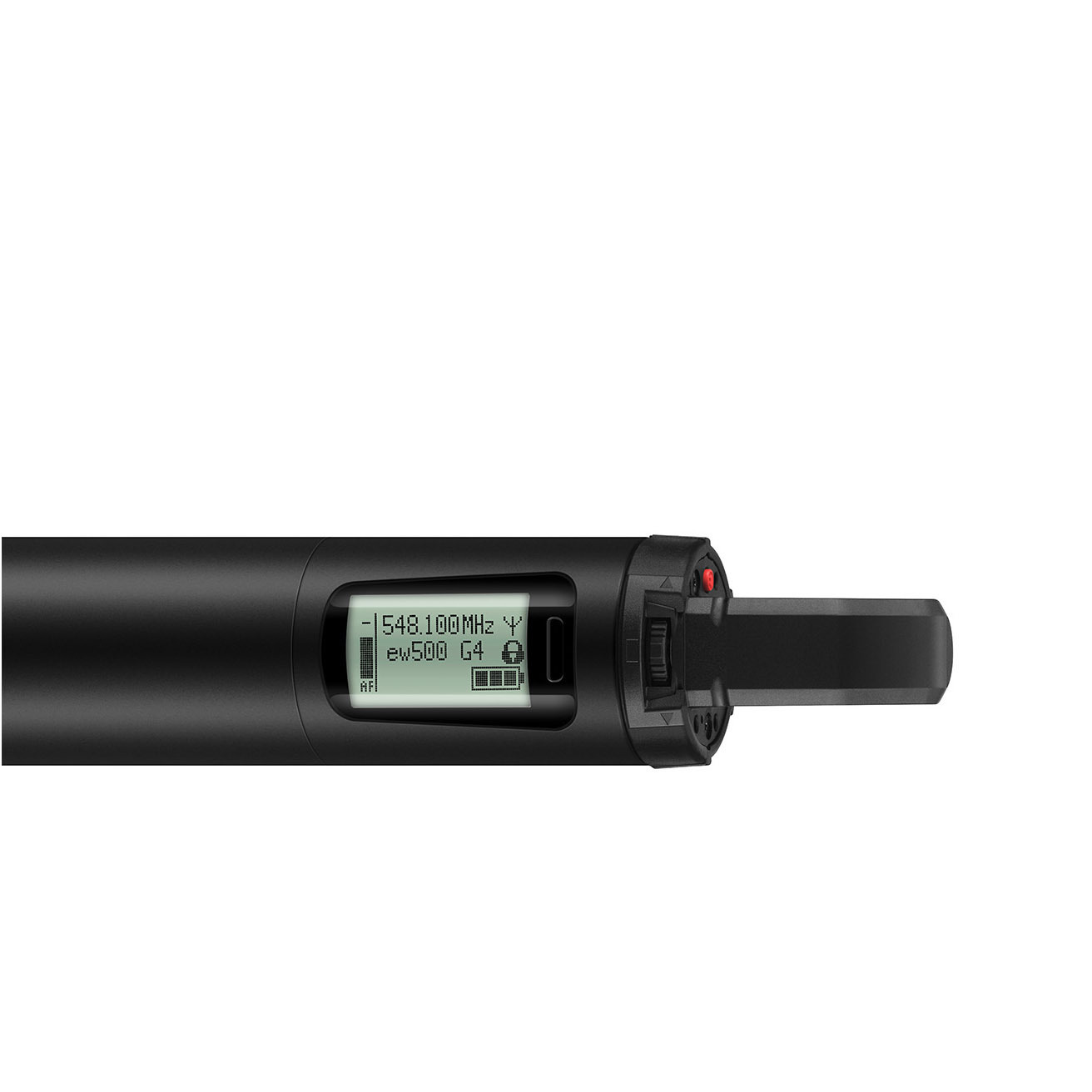

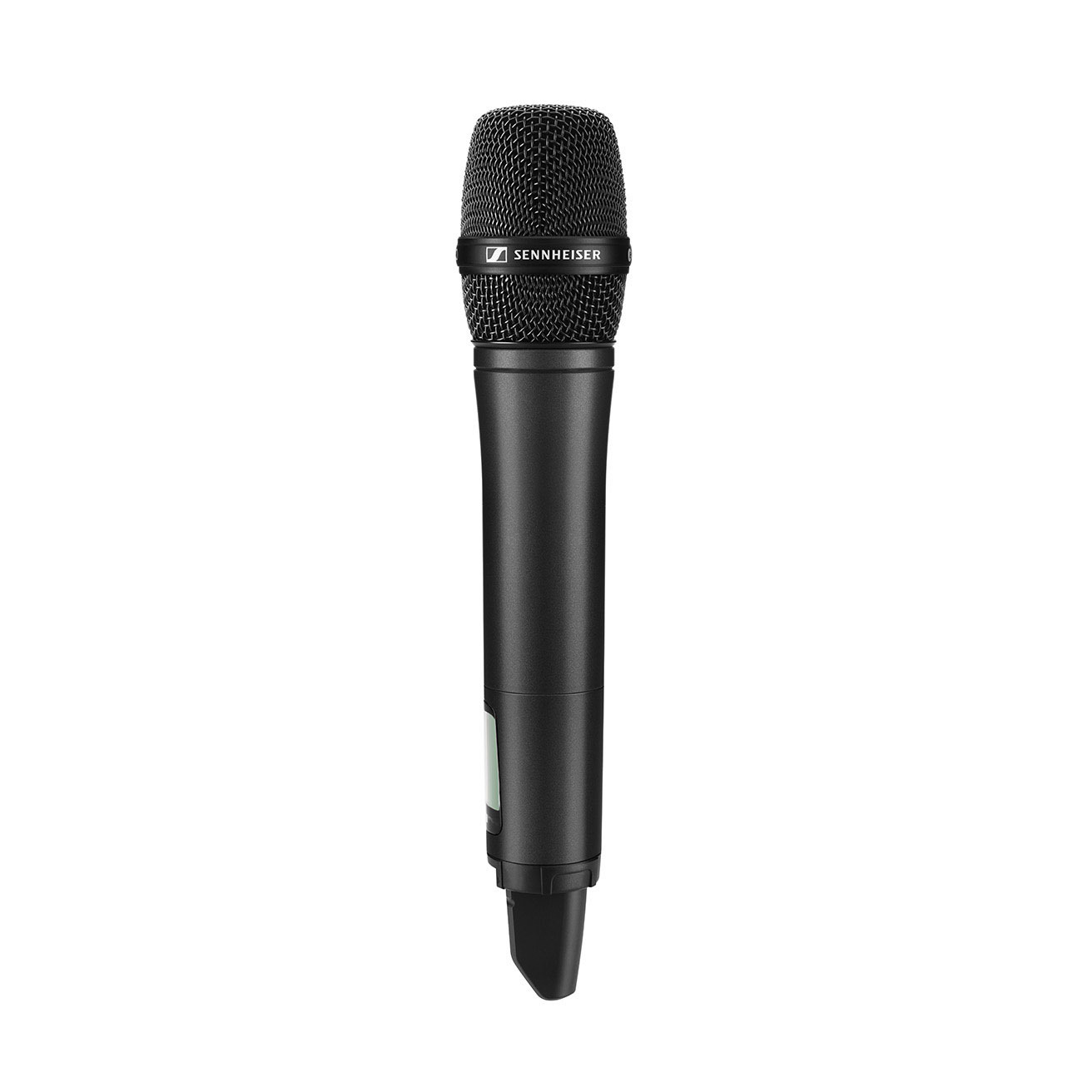

  • (1) SKM 500 G4 handheld microphone,
  • (1) e 935 capsule (cardioid, dynamic),

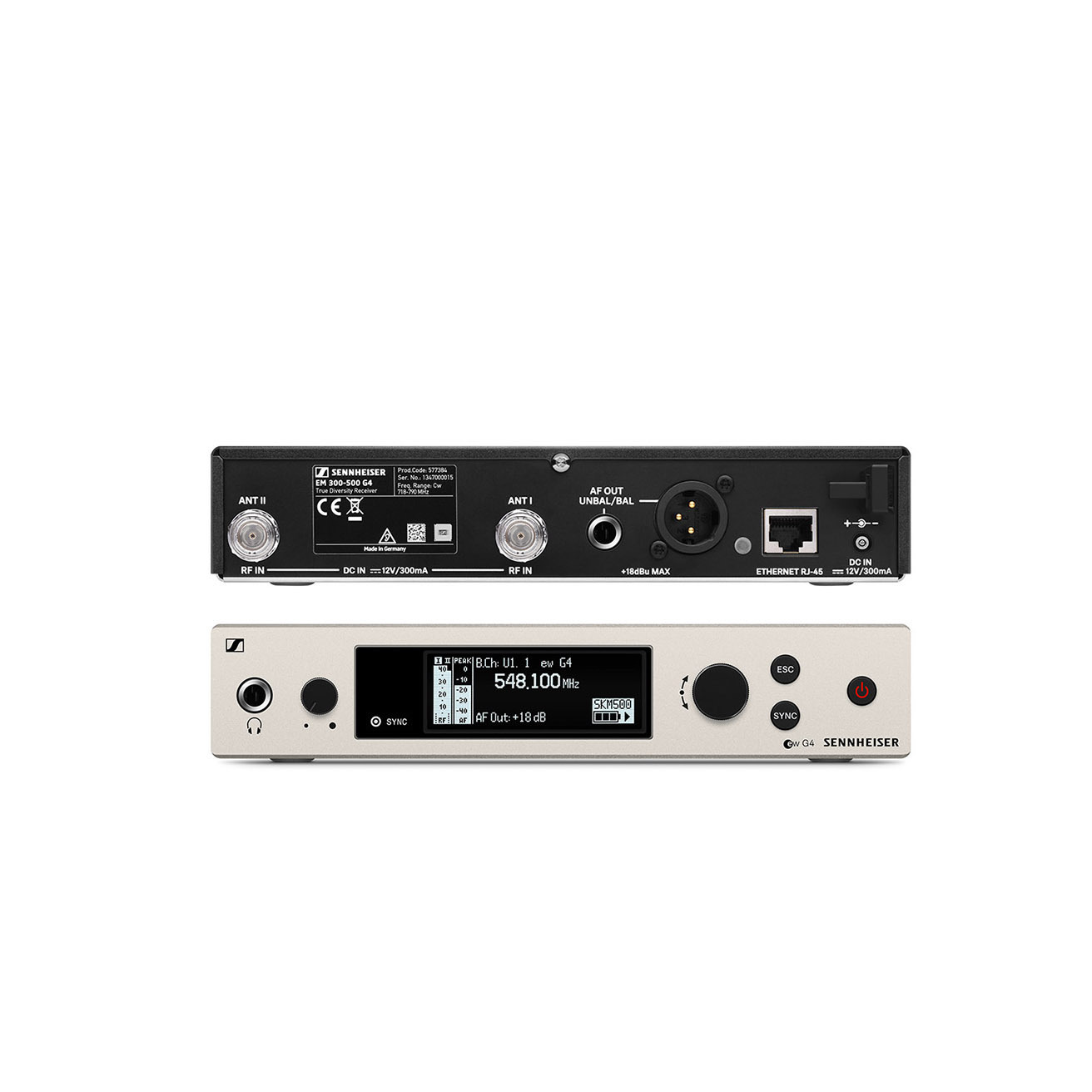

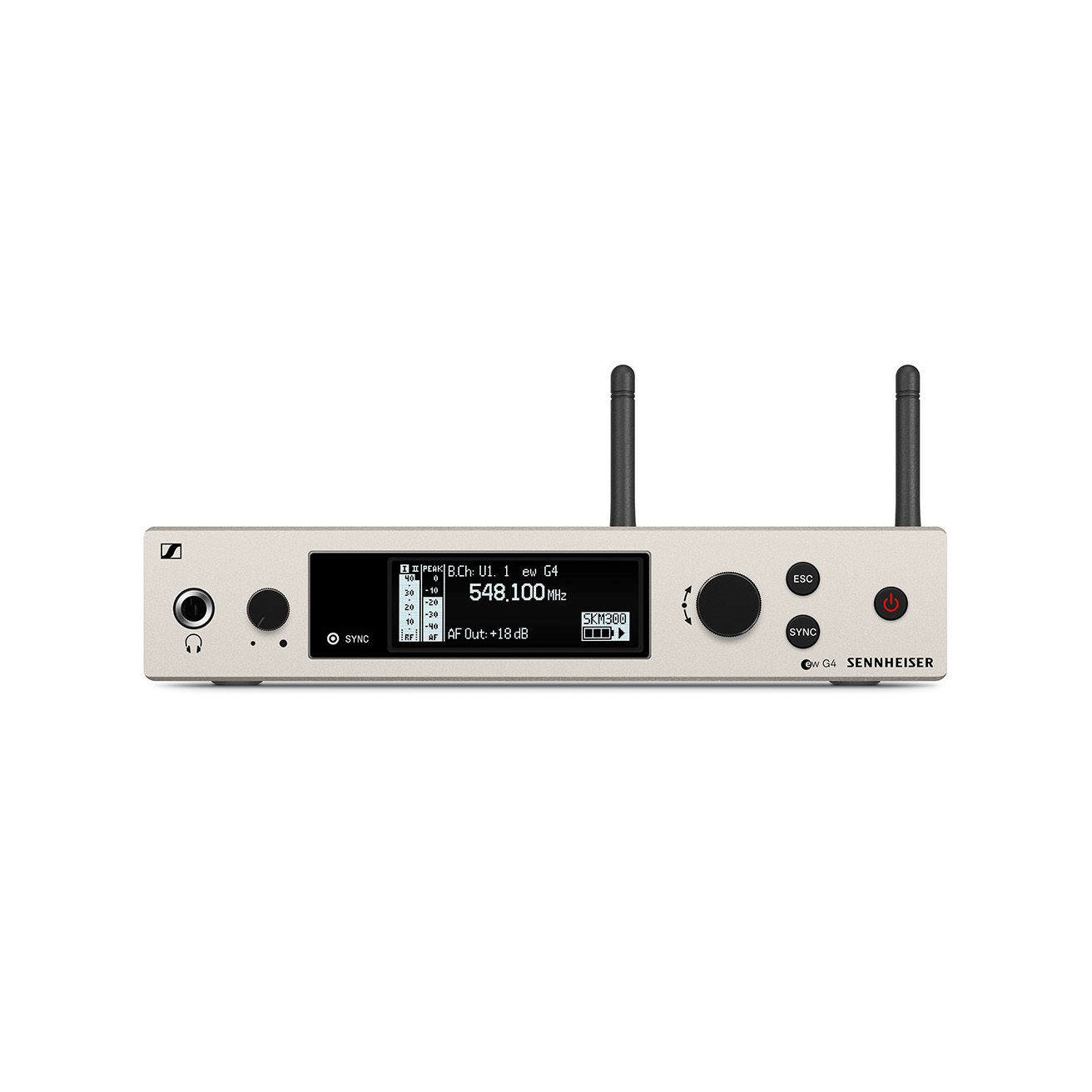

  • (1) EM 300-500 G4 rackmount receiver,
  • (1) GA3 rack kit and
  • (1) mic clip



Features:

The Sennheiser ew 500 G4 is flexible, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

  • A truly diverse half-rack receiver in a full-metal housing with an intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations



Specifications:

Dimensions Approx. 202 x 212 x 43 mm
Approx. Ø 50 x 265 mm
Compander Sennheiser HDX
Sound pressure level (SPL) 154 dB SPL
THD, total harmonic distortion ≤ 0.9 %
Transducer principle dynamic
Weight Approx. 980 g
(incl. batteries) approx. 450 g
Audio output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Pick-up pattern cardioid
Signal-to-noise ratio ≥ 115 dBA
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 12 V DC
2 AA batteries, 1.5 V or BA 2015 accupack
Antenna connector 2 BNC sockets
Current consumption 350 mA
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Adjacent channel rejection Typically ≥ 75 dB
Intermodulation attenuation Typically ≥ 70 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 2.5 μV for 52 dBA eff S/N

specifications



SKU SEN-509976
Model # ew 500 G4-935-GBW
Barcode # 615104371750
Brand Sennheiser
Shipping Weight 3.0100kg
Shipping Width 0.350m
Shipping Height 0.073m
Shipping Length 0.405m
