description

Sennheiser XSW-IEM Wireless In Ear Monitoring System - Frequency Range: C (662 - 686 MHz)

Includes:

• (1) XSW IEM SR transmitter,

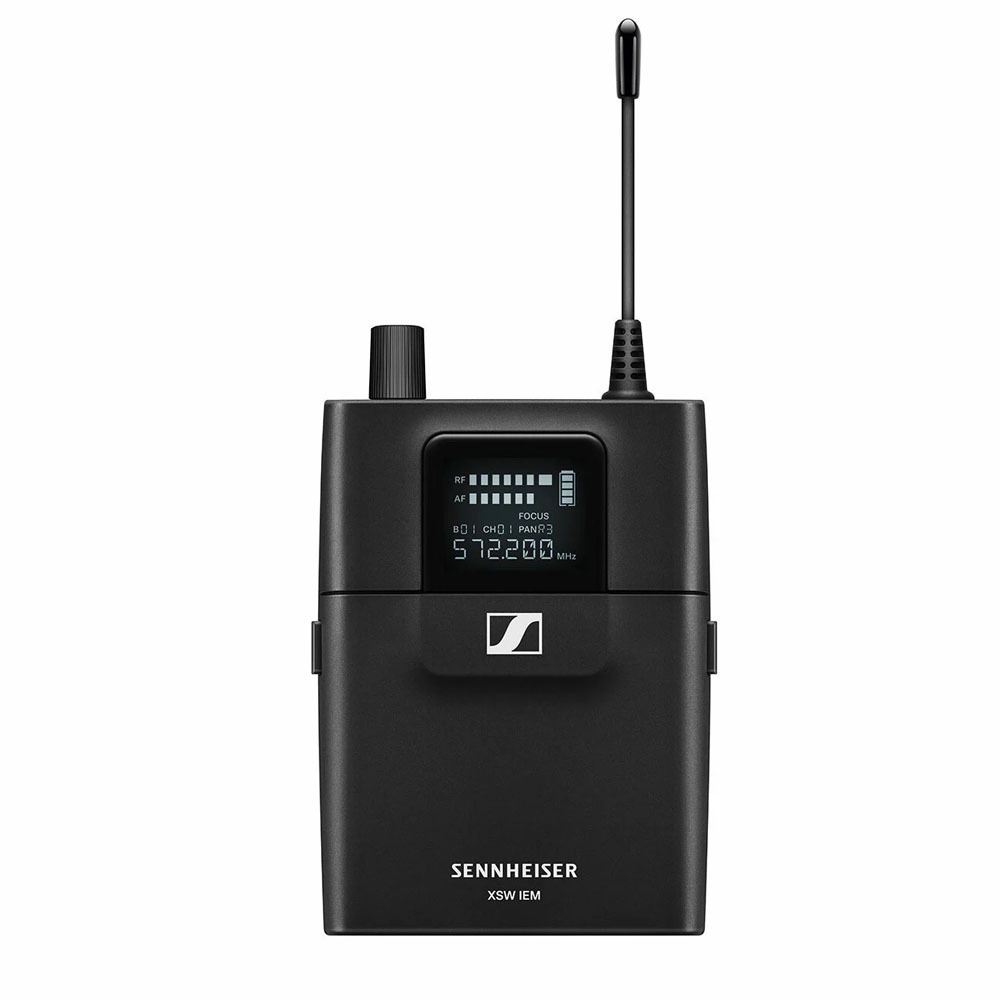

• (1) XSW IEM EK Receiver,

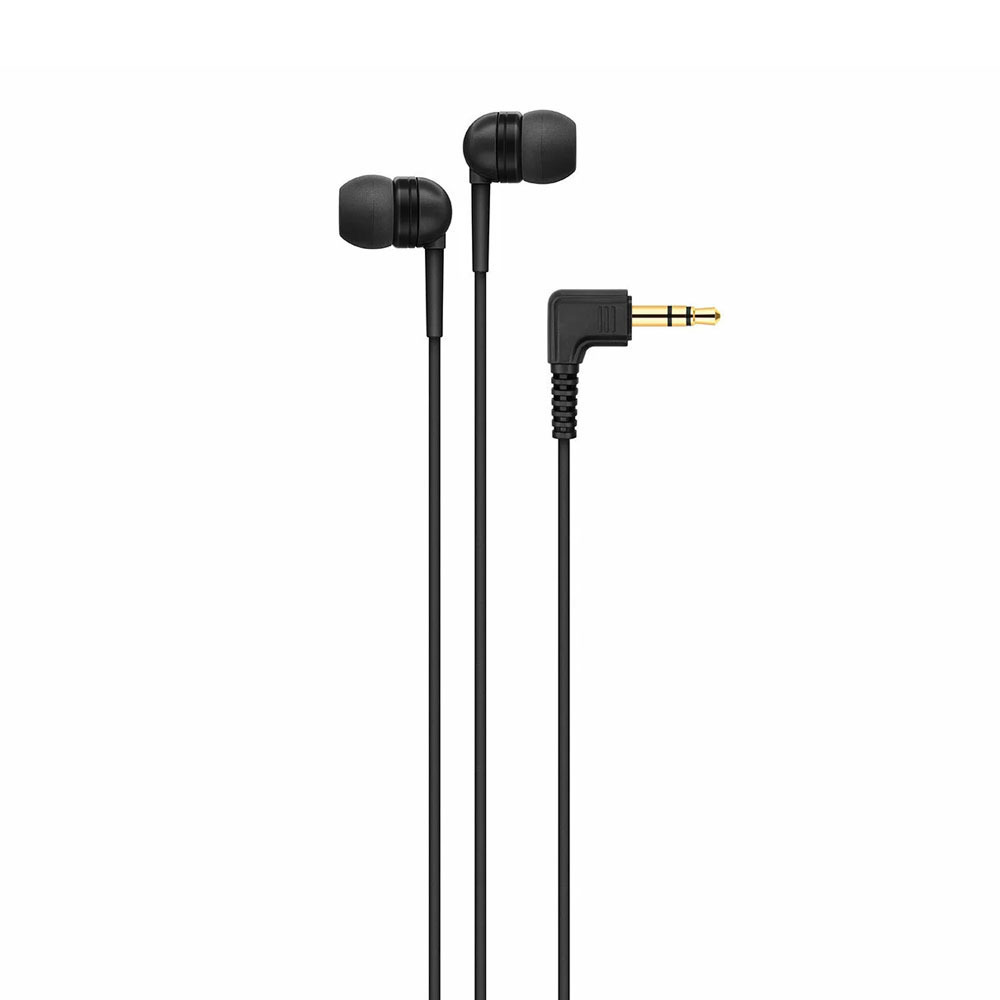

• (1) IE 4 In-Ear Headphones,
• (1) XSW Rack Mount Kit,
• (1) NT 12-5 CW power supply with power adapters,
• (2) AA batteries

This includes everything you need for an easy start with personal monitoring. XSW-IEM also defines new standards for simple, flexible, and reliable wireless in-ear monitoring.

Level up your sound with XSW-IEM, regardless of your tech experience. Whether a rehearsal or live performance, on a club stage or for a worship service: Benefit from renowned Sennheiser sound and solid pro-grade wireless UHF reliability packed in a convenient and rugged system – letting you focus on playing your best.

The All-In-One Starter Kit On A Pro Level
Additionally, switching to in-ear monitoring is no longer overwhelming or needs lengthy equipment lists. Thanks to Sennheiser’s XS Wireless IEM series, you can now have the best near-field sound, full control of your mix, and good isolation, along with a rock-solid wireless connection.

What’s more, focus on your new live sound on any stage or venue: XSW-IEMB connects you to a set of rich options that leads talents on all stages to new levels of perfection. It’s that easy.

XSW-IEM Adapts to Any Situation and Setup
Are you a solo talent with a guitar and laptop? A duo with changing instruments, or a larger band, or somehow all of that? Regardless, XSW-IEM, as well as the whole XS Wireless IEM range has you covered. Every receiver can balance an individual mix thanks to its multiple audio modes and balancing options.

Also, you can easily set up your whole band by simply linking additional receiver bodypacks to your transmitter.

It’s Not About Sound Alone
Yes, XS Wireless IEM uses an advanced UHF design to deliver a reliable, clear sound – and the IE 4 in-ear headphones offer all the dynamics and bass levels.

But there’s more.

Sennheiser has also condensed decades of experience from stages big and small into the development of XSW-IEMB. Most can be heard. Some can be felt. And others will only come to your attention once you need them. But all of them will guide you safely, whether live on stage or during lengthy rehearsal sessions.

Features:

• Complete set – includes all components needed to start with wireless in-ear monitoring
• Reliable, easy-to-manage wireless connection in the professional UHF range
• Full control with flexible audio modes for varying setups or performances and unique mixing options
• Focus mode allows the ability to prioritize one input over another directly from the bodypack receiver for a user-specific monitoring experience
• Advanced features like EQ and limiter
• Easy frequency presets in 8 banks with 12 channels each – or detailed manual control
• An unlimited number of receivers can be used with one transmitter, allowing for cost-effective setups
• Infrared sensor to sync multiple receivers easily to one transmitter

Specifiations:

XSW IEM EK Stereo Receiver

• Frequency range:
• A 476-500 MHz
• B 572-596 MHz
• C 662-686 MHz
• E 823,2-831,8 MHz
• K 925,2-937,3 MHz
• Dimensions: Approx. 95 x 70 x 26 mm
• Weight (incl. batteries): ca. 110 g
• Switching bandwidth: up to 24 MHz
• Temperature Range: 0 °C to +40 °C
• AF frequency response: 45 Hz to 15 kHz
• Modulation: Wideband FM
• Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
• AF output level at 3.5 mm: 2 x 1,25 Veff at 16 Ω
• High Boost (EQ): +10 dB at 13 kHz
• Total harmonic distortion (THD): ≤ 1 %
• Limiter: -10 dB
• Power supply: 2 AA batteries, 1.5 V
• Operating time: Approx. 6 hrs

XSW IEM SR Stereo Transmitter

• Frequency Ranges (RF Output Power):
• A 476-500 MHz (30 mW)
• B 572-596 MHz (30 mW)
• C 662-686 MHz (30 mW)
• E 823,2-831,8 MHz (30 mW)
• K 925,2-937,3 MHz (10 mW)
• Dimensions: Approx. 200 x 128 x 42 mm
• Weight: Approx. 700 g
• Switching bandwidth: up to 24 MHz
• Temperature Range: 0 °C to +40 °C
• AF frequency response: 45 Hz to 15 kHz
• Modulation: FM Stereo
• Signal-to-noise ratio (at nominal load and peak deviation): ≥88 dB
• Current consumption: Approx. 400mA (depending on volume level)
• Input rating: +12 V DC
• Input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
• Antenna Output: BNC socket, 50 Ω

NT 12-5CW Power supply

• Input voltage range: 100 to 240 V~200mA, 50/60 Hz
• Storage temperature: -20 °C ... +60 °C (4 °F ... +140 °F)
• Output voltage: +12 V DC
• Temperature Range: 0 °C ... +40 °C (32 °F ... +104 °F)
• Current consumption: Max. 200 mA
• Secondary output current: 500 mA
