$329.00
SKU: STAGEDESIGNER50

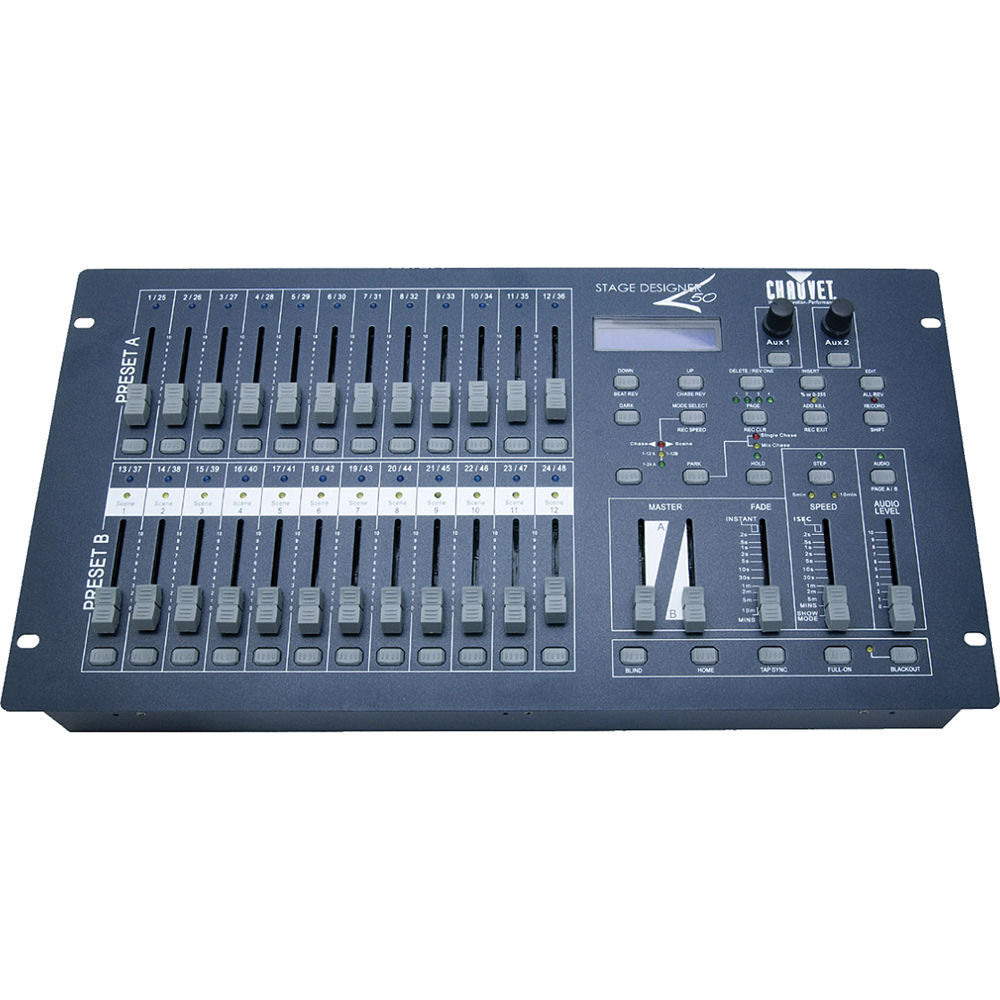

CHAUVET Stage Designer 50 48 Channel DMX Controller
More info
Make 4 payments of $82.25 over 8 weeks and get it now! more info
calculate shipping
yes, we 48-channel DMX-512 dimming console 8 pages with 12 scenes each yields 48 total playback faders (simultaneous playback) 96,000 programmable steps 2 programmable aux buttons Adjustable chase and fade times Re-assignable channels
30 Days Money Back Guarantee
Over 40 Years In Business
description
The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.- Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
- Saves desk space by squeezing 48 channels into a 24-channel console
- Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
- Increase programming and playback versatility with two programmable auxiliaries
- Simplify programming by using DMX channel patching to reassign channels
- Increase flexibility with built-in MIDI support for remote dimming and scene triggering
- Coordinate your light shows to music using the direct audio input connector or built-in microphone
- Ability to stack scenes for simultaneous or sequential playback
| DMX Channels: | 48 |
|---|---|
| DMX Connectors: | 3- and 5-pin XLR |
| Input Voltage: | 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz) |
| Weight: | 4.5 kg |
| Size: | 483 x 267 x 89 mm |
| Approvals: | CE |
| Rackmount: | 6U |
specifications
| SKU | STAGEDESIGNER50 |
| Barcode # | 781462000000 |
| Brand | Chauvet DJ |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.310m |
| Shipping Height | 0.135m |
| Shipping Length | 0.520m |
