description

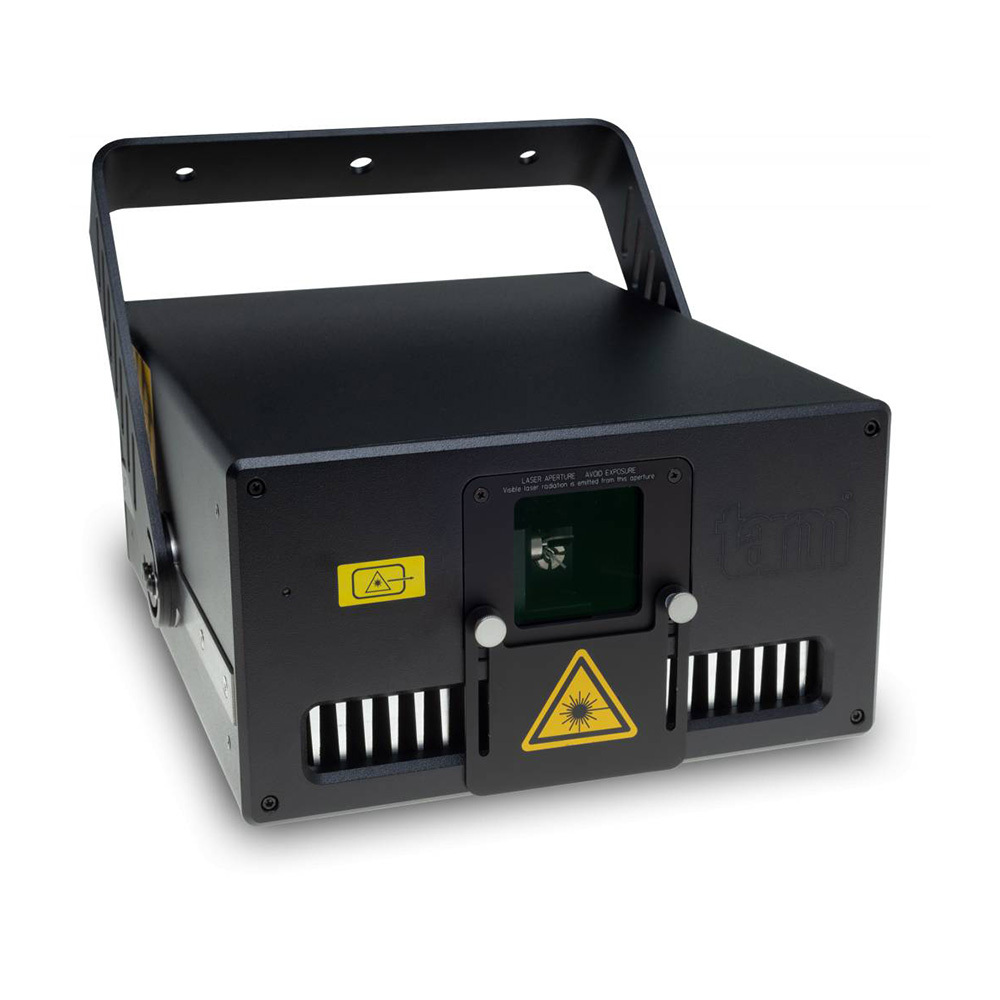

The Tarm 6 show laser projector is a pure diode solution with analog color modulation and a guaranteed output power of 6'000 mW. The Tarm 6 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, automatic mode. The Tarm 6 comes with integrated ShowNET network interface and free laser show software. Details in the box below. The benefits include:

• 6'000 mW guaranteed output power
• a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
• high-precision diode arrays provide an excellent beam divergence of less than <0.6 mrad for a low beam diameter
• pure diode laser
• novel method for increasing the beam precision of the single-mode diodes
• beautiful colors and great color fading
• the tarm 6 impresses with a very bright 637 nm single mode red
• MANUFACTURED IN GERMANY, with high precision diodes array modules.

The tarm 6 has good specifications with a beam diameter of ca. 4.5 mm and a beam divergence of less than <0.6 mrad (full angle). It is equipped with a red (2'000 mW / 637 nm), a green (1'800 mW / 520 nm), and a blue (3'200 mW / 450 nm) diode laser source. The tarm 6 devices have very fast scanners, running at 45kpps @ 8° ILDA and scanning a maximum scan angle of 50°, upgrades to CT-6210 scanners with 60 kpps@8° ILDA and a deflection angle of up to 60° are available on request. These specifications definitely make the units perfectly suitable for professional applications and ideal for graphics projections. The housing of the tarm 6 is built very rugged and in a dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum. The mounting bracket allows for hanging and for upright mounting of the laser system. The tarm 6 is suitable for demanding show laser applications and graphics projections in clubs, bars and on small stages and can be used by beginners as well as professionals. + Integrated ShowNET incl. free laser show software The tarm 6 features an integrated ShowNET network interface with free laser control software included! Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 6 for free. The Showcontroller software is supported as well and can be purchased additionally. The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode! There are two different DMX modes: (1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system. (2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show. The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.

• 6 W guaranteed power
• Quality graphics capable - 45kpps @ 8° ILDA scanners - upgradable to 60kpps
• Extremely sharp intense beams - low divergence of <0.6 mrad
• Full color mixing
• Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
• Integrated network switch for linking the control signal
• Control screen for convenient mode selection
• Rugged tour grade compact housing
• Laser Artists' choice
• Lighting Designers' choice
• incl. waterproof flightcase

Guaranteed Power at aperture	6,000 mW
Power Red	2,000 mW / 637 nm
Power Green	1,800 mW / 520 nm
Power Blue	3,200 mW / 450 nm
Beam Specifications (full angle)	ca. 4.5 mm / <0.6 mrad
Scanner	45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60kpps@8° ILDA, max. 60°
Max. Scan Angle	50°
Laser Source	Diode
Laser Class	4
Operation Modes	ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave; integrated intelligent ShowNET laser mainboard with display
Basic Patterns	over 120 (layers, tunnels, fences, waves, etc.)
Accessories	Incl. waterproof flightcase, power cable, manual, key, interlock connector, full version Showeditor software license included
IP rating	IP54
Power Supply	85 V - 250 V / AC
Power Consumption	230 W
Dimensions	320 x 260 x 140 mm
Weight	13 kg
