description

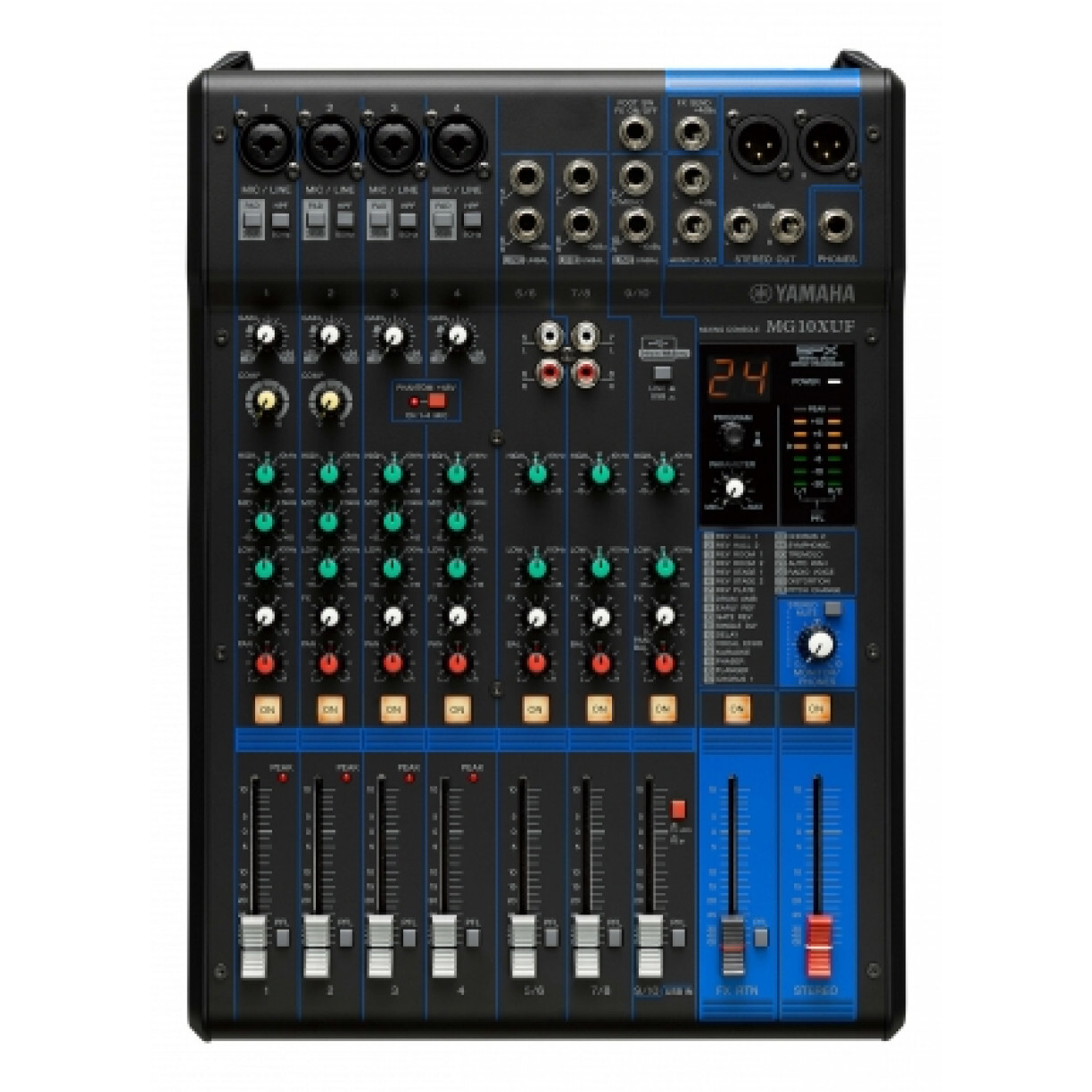

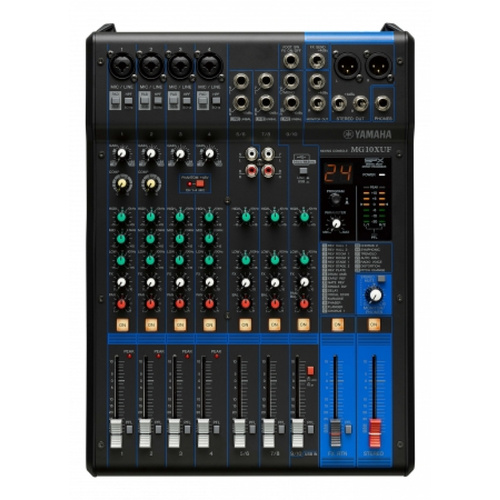

YAMAHA MG10XUF 10 CHANNEL MIXER WITH EFFECTS, USB, AND FADERS

In the modern age, Yamaha has a legendary reputation of superior craftsmanship and innovation exemplified in all of their products, form musical instruments to professional audio gear. In keeping with these consistently high standards, The MG10XUF is a high powered, professional mixer suitable for live and for home use, equipped with excellent built in effects, fortified faders and a USB interface, to produce a balanced and natural sound whilst guaranteeing a seamless experience from plug to play.

D-PRE and High-Quality Operational Amplifiers
Mono input channels have “D-PRE” Class-A discrete microphone preamplifiers. The D-PRE head amplifier features an inverted Darlington circuit for high-end audio devices. This circuit uses multi-stage amplifying elements, guaranteeing high current and low impedance, for rich low and mid frequencies. Combined with the specialised “MG01” operational amp, the result is a complete reproduction of low frequencies and sustained high frequencies. Input channels have combo jacks, which accept both XLR and TRS connectors. In addition, PAD circuitry permits line level input, to accommodate a various types of instruments.

24 High-Quality Digital Effects
24 built-in effects are included in the MG10XUF, that are based on SPX algorithms used by professionals. In particular, the highquality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness.

24-bit/192 kHz USB Audio Interface
MG10XUF features a USB 2.0 audio interface capable of 24-bit/192 kHz sound quality. With the audio interface you
can play back music from your computer, or use DAW software such as Cubase AI to record the mixer output. The XU
models support USB Audio Class 2.0 so you can use them with USB Audio Class 2.0 compliant tablets and other
devices, without the need to install drivers. The USB protocol uses asynchronous data transfer. Audio data is transferred based on a highly precise audio clock signal from the MG, for high quality recording and playback.

MG Rec & Play
The MG Rec & Play software application enables recording to an iPhone/iPad connected to MG10XUF, as well as playback of songs and sounds from an iPhone/iPad.This application can be used for a wide range of purposes, such as
recording live gigs, providing background music for entertainment events, or sound effects for parties.

Cubase AI, Cubasis LE
The MG10XUF comes with the Steinberg DAW software "Cubase AI" and supports the DAW software "Cubasis LE" for
iPad.

Features

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• Cubasis LE for iPad available at App Store
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions(W×H×D): 275 mm x 110 mm x 390 mm (10.8" x4.3" x15.4")
• Net Weight: 3.3kg (7.3 lbs.)
