description

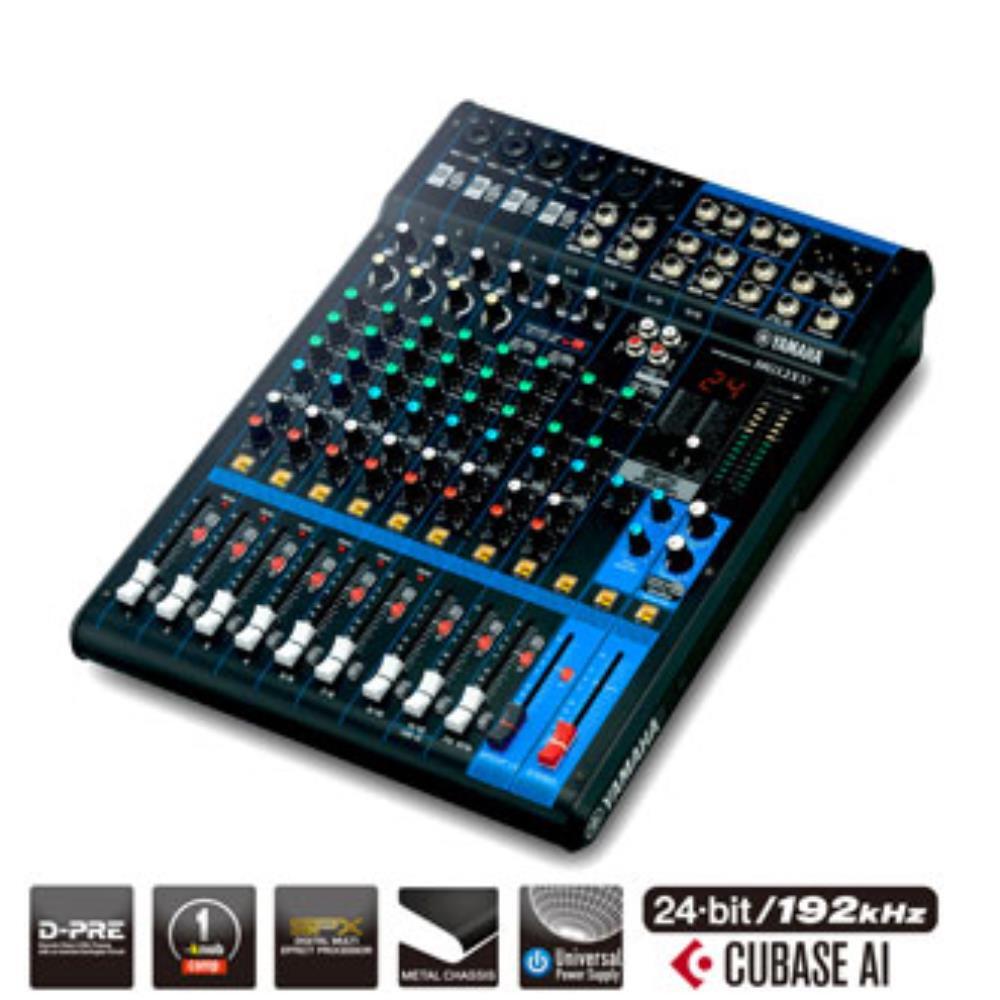

YAMAHA MG12XU 12 CHANNEL MIXER WITH EFFECTS

This is the new series of Mxer With the built in Compressors and Digital Effects Plus the Ability ot Tap into the Iphoen connectivity for extra control over the DSP Parmaters

  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
  • Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (9.6" x 2.8" x 11.6")
  • Net Weight: 4.2 kg (9.3 lbs.)

specifications

YAMAHA MG12XU 12 CHANNEL MIXER WITH EFFECTS



Outline



Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

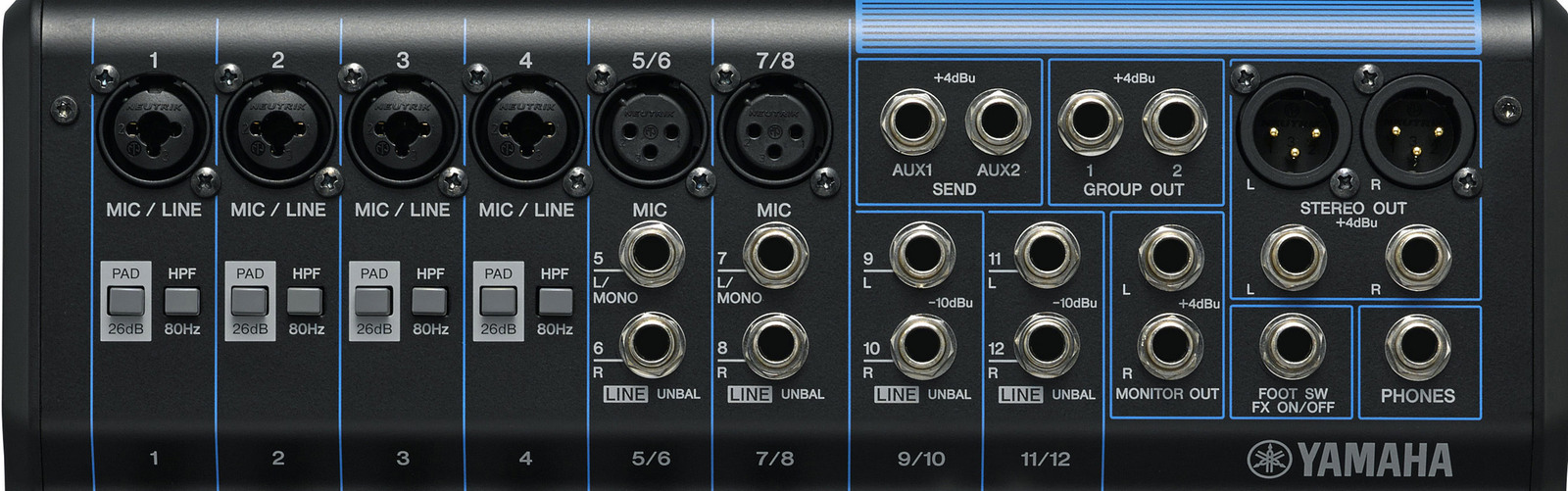

Input Channels Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 22 W
Dimensions W 308 mm (9.6")
H 118 mm (2.8")
D 422 mm (11.6")
Net weight 4.2 kg (9.3 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others Operating Temperature: 0 to +40˚C
SKU MG12XU-AU
Barcode # 4957812553865
Brand Yamaha
Shipping Weight 6.0000kg
Shipping Width 0.200m
Shipping Height 0.480m
Shipping Length 0.390m
Shipping Cubic 0.040320000m3
