description

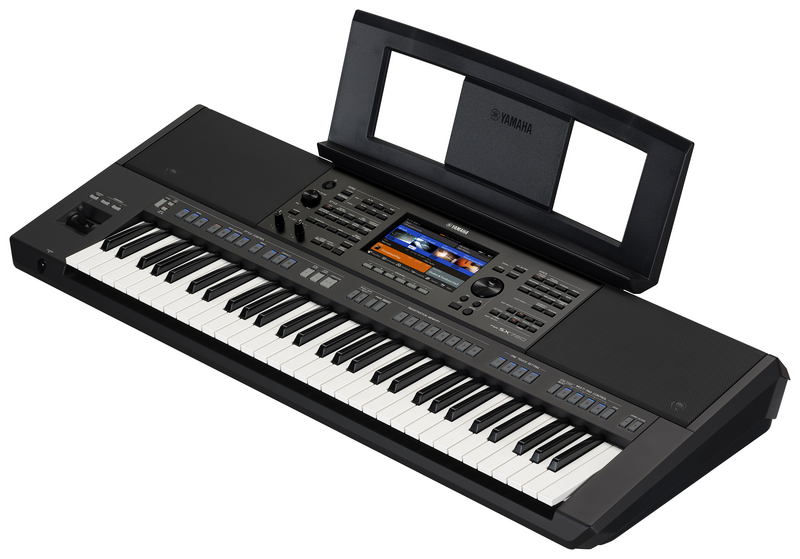

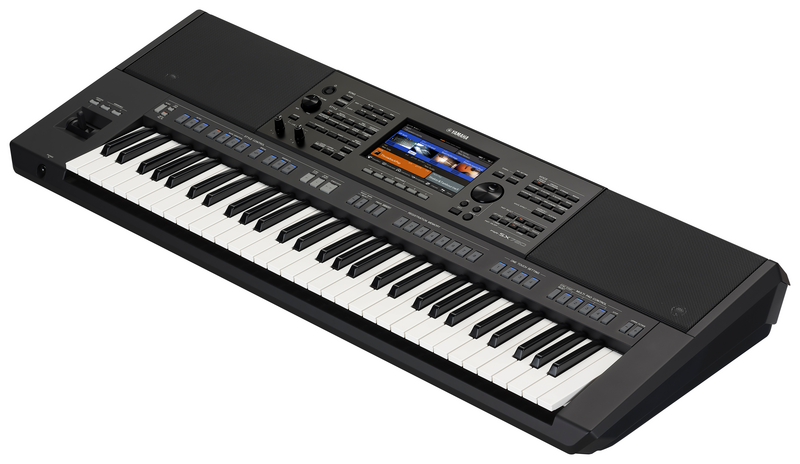

YAMAHA PSR-SX720 ARRANGER WORKSTATION KEYBOARD

Where innovation meets inspiration!
As part of the Genos family, the new PSR-SX series pushes the boundaries of Arranger Workstation sound, featuring the latest Super Articulation technologies and new Crossfade Portamento, PSR-SX infuses your performances with expressive dynamics and emotional depth.

Style Insertion DSP power has been doubled from the previous models, further elevating their sound quality and with the new Style Dynamics Control, you’re in charge of the energy and dynamics of every Style, providing for more dynamic and refined performances.

Elevate your music with a new PSR-SX Arranger Workstation—where innovation meets inspiration!

Product Specifications

• More than 1,300 Voices and 450 Styles
• Collage of Yamaha Arranger Workstation PSR-SX920/720 Voice selection screens
• Ignite your musical creativity with the PSR-SX720! This dynamic Arranger Workstation features over 1,300 high-quality Voices and 450 diverse Styles, all with One Touch Settings to instantly spark your performance. Adjust the energy and dynamics of any Style using a Live Controller with the new Style Dynamics Control. And with double the Style Insertion DSP power from the previous model, new and familiar Styles, all enhanced with the latest Voices and effects, provide for a superior musical experience.

Switch between different instrument articulations effortlessly with the new Super Articulation Plus (S.Art+) Voices and enjoy smooth, fluid pitch transitions with the new Crossfade Portamento, adding expressive depth to your music.

For ultimate performance flexibility, the PSR-SX720 includes 8 assignable panel buttons, 6 home screen shortcuts, and 2 Live Control knobs for quick access to your favorite functions and instant adjustments. Elevate your music with the PSR-SX720—where innovation meets inspiration!
Super Articulation+
Collage of a screen capture of the Yamaha Arranger Workstation PSR-SX920/720 Voice list and a photo of a person's hand playing a keyboard
Instruments often produce varying sounds depending on how notes are played. For instance, string instruments can be bowed or plucked. Previously, accessing these different sounds required switching between Voices on your keyboard. With the new Super Articulation Plus Voices (S.Art+), you can now switch articulations instantly with the touch of a button.
Crossfade Portamento

Portamento is a musical technique that smooths out changes in pitch, creating a fluid transition between notes. The Crossfade Portamento feature in PSR-SX smoothly transitions between the notes you play, infusing your performance with expressive dynamics and emotional depth.
Style Dynamics Control
Screen capture from Style Dynamics Control video
With Style Dynamics Control, the energy and dynamics of all Styles, including User Styles, can be easily adjusted using a single Live controller. Whether you want your backing band to play at a soft pianissimo level, a hard fortissimo level or anything in between, the choice is yours.

EXPANSION EXPLORER App
Yamaha Arranger Workstation PSR-SX720 and a hand holding smartphone with the Yamaha official app
The new EXPANSION EXPLORER App is the ultimate tool for supercharging your Arranger Workstation experience. Quickly access, search, and preview your favorite Expansion content on iOS, Android, Windows and Mac. With tailored recommendations and effortless management, EXPANSION EXPLORER makes discovering and installing new content easier than ever before.
Performance Features
Whether composing or performing, the PSR-SX will elevate your performance to new heights.

L. Controls & A. Buttons

Assignable Buttons and Live Controls bring instant access and real-time control to the features that matter to you most.
Chord Looper
Record a chord progression and loop it - Chord Looper assists with your performance, practice and composition.
Master EQ
Finish your ideal sound with the PSR-SX’s eight-band digital Master EQ, featuring Peak/Dip and Shelving options.
Smart Chord
For beginners, Smart Chord turns a single note into the perfect chord.
Ease Of Use
Powerful features make the PSR-SX easier and more enjoyable to use

Color/Finish

• Body    Color    Black

Size/Weight

• Dimensions    Width    1,017 mm (40")
• Height    139 mm (5-1/2")
• Depth    431 mm (17")
• Weight    Weight    11.6 kg (25.57 lbs.)

Control Interface

• Keyboard    Number of Keys: 61
• Type    Organ (FSB), Initial Touch
• Touch Response    Normal, Soft1, Soft2, Hard1, Hard2
• Other Controllers    Joystick    Yes (Assignable)
• Control Knobs    2 (Assignable)
• Assignable Buttons    6 + 2 (With LED Indicator)

Pitch Bend    -

• Modulation    -
• Display    Type    TFT Color Wide VGA LCD
• Size    800 x 480 dots (7 inch)
• Touch Screen    Yes
• Color    Yes
• Language    English, German, French, Spanish, Italian, Chinese
• Panel    Language    English, Chinese

Voices

• Tone Generation    Tone Generating Technology    AWM Stereo Sampling
• Polyphony    Number of Polyphony (Max.)    128
• Preset    Number of Voices    1,377 Voices + 56 Drum/SFX Kits + 480 XG Voices
• Featured Voices    9 S.Articulation+, 252 S.Articulation, 55 OrganFlutes, 54 MegaVoice
• Expandability    Expansion Voice    Yes (approx. 1 GB)
• Editing    -
• Compatibility         XG, GM, GM2 (for Song Playback）
• XG    -
• GS    -
• GM    -
• GM2    -
• Part    Right1, Right2, Right3, Left
• Effects
• Types    Reverb    59 Preset + 30 User
• Chorus    106 Preset + 30 User
• DSP    322 Preset + 30 User
• Insertion Effect    1-8: 322 Preset + 30 User
• Master Compressor    5 Preset + 30 User
• Master EQ    5 Preset + 30 User
• Part EQ    28 Parts

Others    -

• Arpeggio    -
